CDMA Gateways from Hypermedia Systems


VOIP CDMA GATEWAY

The HyperGateway VoIP CDMA Gateway line of products provides a tailor-made solution for alternative carrier call termination and for call origination providers.
The VoIP CDMA Gateway is a complementary product to IP based equipments and supports up to 72 CDMA ports. By using HG-4000 there is no need for any external VoIP Gateways such as Cisco or Quintum.

VoIP CDMA Gateway main features:

  • From 16 to 72 CDMA ports
  • Advanced LCR and routing groups
  • IP address and DDI pattern restrictions
  • Remote pre-paid SIM recharge
  • Integrated antenna splitter
  • CDMA worldwide use
  • Redounded power supply - Option
  • WEB management and control


CDMA RUIM-Enabled Gateways NEW

The new CDMA RUIM Gateways are professional, heavy duty CDMA Gateways that offer great new business opportunities. When connected to alternative carrier's equipment/networks, these CDMA Gateways increase profits for call termination vendors.

Featuring seamless VOIP/PRI CDMA interoperability, service providers and system integrators can deploy total end-to-end IP telephony solutions to end-users, and alternative carriers can take advantage of the lower cost minute-based allotments offered by different RUIM cards.

Available:
VoIP CDMA Gateway HG-4000C series - supports up to 72 CDMA ports with RUIM cards
PRI CDMA Gateway HG-3000C series – supports up to 30 (+2) CDMA ports with RUIM cards

Major Advantages:

  • Fast ROI
  • Practical, easy to implement
  • Flexible and scalable
  • Value-added product
  • Reliable and proven technology
  • Compatible with PBX / IP-PBX systems of leading manufacturers worldwide
  • Online technical support and training
  • One point of contact for customer service
  • 24 months warranty


CDMA E1/T1 PRI GATEWAY for PBX

The Hypermedia Systems PRI CDMA Gateway provides superior voice technology for connecting PBX systems and IP-based systems with the cellular networks.

Main Features:
  • Up to 30+2 cellular ports
  • CDMA worldwide use (850/1900)
  • Comply with Cisco, Quintum, Asterisk and others
  • Integrated antennas combiner
  • WEB Remote management
  • High quality of voice
  • VoIP - Option
  • Fast and easy installation


Other related products:
3G VoIP Gateway
3G UMTS Analog Gateway
GSM Analog Gateway


For more information:

Contact: Contact Hypermedia
E-mail: sales@hyperms.com
Website: www.hyperms.com



Dinstar DWG2001/4/8 CDMA/GSM/HPSA VoIP Gateways


PRODUCT SUMMARY

The DWG2001/4/8 SIP/CDMA Gateways from Dinstar are a cost-effective SIP/CDMA gateway for SOHO, SMEs and system integrators. The Dinstar CDMA/VoIP gateways allow a SIP based IP PBX telephone system or VoIP line to be connected directly to the CDMA cellular network, which can dramatically lower the cost of mobile calls by taking advantage of lower mobile-to-mobile tariffs. The DWG gateways are Quad-band CDMA VoIP gateway that support 1-8 CDMA channels / SIM cards. The DWG gateways are fully compatible with Asterisk® based IP PBXs like Elastix®, trixbox®, and AsteriskNOW®, as well as other Open Source and proprietary SIP based IP PBXs, Switch, IVR, and VoIP gateway applications.

TARGET APPLICATIONS

  • SIP/CDMA gateway for SIP based IP PBX (e.g. Asterisk®) or VoIP line
  • Back up solution in case of a PSTN/VoIP failure
  • Mobile IP PBX (e.g. for trade shows, temporary offices, disaster recovery, etc.)
  • SMS gateway for batch sending/receiving text messages (e.g. appointment reminders, customer order updates, remote/field worker communications, etc.)
  • CDMA callback services

TECHNICAL SUMMARY

  • Voice codecs supported include G.723.1, G.729A/B, G.711 (a-law and u-law)
  • Support for Fixed IP, DHCP, Automated NAT traversal using IETF STUN
  • Protocols supported include SIP RFC3261, TCP/UDP/IP, RTP/RTCP, HTTP, ARP/RARP, ICMP, DNS, DHCP, NTP, TELNET, PPPoE, STUN
  • Quad-Band CDMA 850/900/1800/1900 MHz
  • Send/receive batch SMS up to 300 characters, support for AT commands
  • Unstructured Supplementary Services Data (USSD) support
  • Adjustable TX/RX gain: -6db~+6db
  • Offhook Auto-Dial Hotline service
  • Built-in PPPoE client for establishing DSL link connection with ISP
  • DTMF Signaling via RFC 2833 or SIP Info
  • LEDs provide operational status information
  • Support for external antenna
  • PIN support for locked SIM cards
  • Enhanced (Carrier Grade) Echo Cancellation: ITU Rec. G 168, up to 128 ms tail size
  • Adaptive Jitter Buffer, Packet loss concealment (PLC), Comfort noise generation (CNG) ,Voice activity detection (VAD)
  • HTTP Web configuration support, Auto Provisioning support
  • Certificates: CE, FCC, ROHS

MODELS

DWG2001 - 1 Channel VoIP CDMA Gateway

  • 1 External hot-plug SIM card slot for easy access
  • LAN interface: 1 x RJ45 10/100Mbps autosensing
  • WAN interface: 1 x RJ45 10/100Mbps autosensing
  • Weight: Gateway only - 185g, Package as shipped - 0.5Kg
  • Dimensions (L x W x H): 112mm x 76mm x 24mm
  • Universal Switching Power Adaptor: Input: 100-240VAC; 50-60 Hz, Output: 12VDC, 1000mA
  • Power Consumption: 5W

DWG2004 - 4 Channel VoIP CDMA Gateway

  • Rack mountable 1U chassis
  • 4 hot-plug SIM card slots with external cover for easy access
  • LAN interface: 3 x RJ45 10/100Mbps autosensing
  • WAN interface: 1 x RJ45 10/100Mbps autosensing
  • Weight: Gateway only - 4Kg, Package as shipped 4.85Kg
  • Dimensions (W x D x H): 440mm x 305mm x 44mm
  • Power: 100-240VAC; 50-60 Hz
  • Power Consumption: 30W

DWG2008 - 8 Channel VoIP CDMA Gateway

  • Rack mountable 1U chassis
  • 8 hot-plug SIM card slots with external cover for easy access
  • LAN interface: 3 x RJ45 10/100Mbps autosensing
  • WAN interface: 1 x RJ45 10/100Mbps autosensing
  • Weight: Gateway only - 4.25Kg, Package as shipped 5.1Kg
  • Dimensions (W x D x H): 440mm x 305mm x 44mm
  • Power: 100-240VAC; 50-60 Hz
  • Power Consumption: 30W

Where to Buy

Listed alphabetically in country/region (then company name) order:


For More Information

Home page: http://www.dinstar.com
E-Mail: support@dinstar.com / sales@dinstar.com
Telephone: +86 755 61302265



Yeastar VoIP GSM/CDMA/UMTS Gateway


GSM/CDMA/UMTS Channels

Yeastar TG GSM/CDMA/UMTS Gateways connect GSM/CDMA/UMTS network to VoIP network directly and support two-way communication: GSM/CDMA/UMTS to VoIP and VoIP to GSM/CDMA/UMTS. It is the best solution ever to connect IP-based telephone systems, and softswithces to GSM/CDMA/UMTS network; and also the best fallback solution when landline goes down.
TG series include TG100, TG200, TG400, TG800 and TG1600.

TG Series-VoIP GSM/CDMA/UMTS Gateway


Benefits


  • Cost Savings – Cost-Savings on phone calls between mobiles or to PSTN.
  • Back up – Should the landline network go down, GSM can be used as a cost-effective backup.
  • Easy to install – IP device with Web based management interface.
  • Easy to integrate.

Specifications

  • Number of GSM channels: 1/2/4/8/16
  • Network type
    • GSM Frequency: 850/900/1800/1900 MHz
    • UMTS Frequency: 850/1900 MHz, 850/2100 MHz, 900/2100 MHz
    • CDMA Frequency: 800 MHz
  • Protocol: SIP (RFC3261),IAX2
  • Transport Protocol: UDP,TCP,TLS,SRTP
  • DTMF: RFC2833, SIP INFO, In-band
  • Codec: G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
  • LAN: 1 (10/100Mbps)
  • Network: DHCP, Firewall, VLAN, DDNS, OpenVPN.
  • Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)

Features

  • SIP proxy Registrar for IP phones included
  • Incoming call routing
  • Outgoing call routing
  • SMS sending and receiving (WEB interface)
  • Call Back
  • LCR (Least Cost Routing)
  • Top voice quality (EFR super sound)
  • Simple web based configuration
  • Easy to integrate / Easy to install

Contact Information



WaveTramp Technologies, Inc


WaveTramp Technologies, Inc offers a IP to CDMA gateway with PBX functions. The WPBX series product line can have up to 8 channels of CDMA and 80 FXS/FXO ports. It is a perfect solution for call termination from VOIP network to CDMA network with the LCR principle.

Even we are a product company, we see our products as solutions. For more information about our solution offers with case studies, please visit

http://www.wavetramp.com/solution-en.php



Contact us at:

sales@wavetramp.com

PORTech MV-370C VoIP CDMA Gateway , MT-350C CDMA Fixed wireless Terminal ,DMT-C E1 CDMA Channel Bank

PORTech is a manufacturer in taiwan.
PORTech major
(1) 30 channels (E1 PRI or VoIP) (GSM or CDMA) Channel Bank(IP GSM Gateway build in VoIP CARD)
(2) SIM Server,SIM Bank
(3) Antenna Combiner: collect 32 antennas into 1 antenna (e.g Outdoor directional antenna or Yigi antenna)
(4) 1 port /2 ports/4 ports/8 ports VoIP GSM/CDMA/UMTS(3G) Gateway
(5) 1 port/4 ports/8 ports GSM Fixed Wireless Terminals(Follow Me GSM Gateway)-call transfer(GSM TO PSTN,PSTN TO GSM)
(6) Skype GSM Gateway ,Skype gateway(build in pc without computer)
(7) Smart Power Monitor,IP Power Switch /PSTN Power Switch(4 Ports /8 ports)-Remote power manage by PSTN and WEB
http://www.portech.com.tw

MV-370C : 1 channel VoIP CDMA Gateway


for call termination (VoIP to CDMA) and origination (CDMA to VoIP). It is SIP based and compatible with Asterisk,Trixbox,VoIPBuster.
MV-370C:CDMA 800MHZ,CDMA 2000

MT-350C~1 ports CDMA Fixed Wireless Terminals


It has FXS,FXO,CDMA interface that connect with PBX,PSTN or VoIP Gateway
Auto-select economic route (LCR)
GSM Prefix No.Setting (50 sets)
Polarity reversing function
MT-350C doesn't have call transfer-follow Me function.

DMT-C E1 CDMA Channel Bank

DMT accepts incoming call from E1/T1 PRI of PSTN or
PBX and choose one CDMA channel to dial out according to the prefix of the
destination mobile number. In this way, we can have least cost routing.
DMT can provide Call Detail Record (CDR) for traffic and accounting management.
ISDN PRI interface: 1 port
CDMA interface: 31 ports
Optional external SCE-900: Expands SIM card upto 32 pieces per CDMA channel.
Optional external SCBox: Expands SIM card upto 4 pieces per CDMA channel.
Applicable for telecom service providers
VoIP application: Gateway's E1/T1 port connects DMT's E1/T1 port
Calling time: user can assign the calling time for each sheet of the SIM
card.When the time runs out, system will block this CDMA port, or switch
to next unused SIM card (in the case that SCE is installed).

DMT-C E1 CDMA Channel Bank
CDMA 2000(800MHZ)

Antenna collecting Box: Base equipment.


If you want to connect extra Outdoor directional antenna or Yigi antenna.....,you can purchase option Antenna Combiner(AC-32)



PSTN Power Switch / IP Power Switch

If your control room is usually no body there,you can consider our Smart Power Monitor(4 ports)- Remote power on/ off /reboot by PSTN and WEB..



If you have interest,please contact us

PORTech Communications Inc.
150 Shiang Shung N.Rd,Taichung,Taiwan
http://www.portech.com.tw
E-mail:info@portech.com.tw
http://www.portech.com.tw/eweb/PORTECH_dm.pdf ---- PORTech Products list
You can click the product's picture to read the catalog.




Gempro GP-710A GSM/3G/4G SIP VoIP Gateway for all systems

GP-710A is a revolutionary and innovative product. It Integrates VoIP and
2.4G Bluetooth technology in a device. This makes the connection free from the limitation
of frequency and telecommunication provider to become more convenient and widely use.
Therefore, it can also be widely used as GSM/CDMA/WCDMA/3G/3.5G VoIP Gateway.

Feature:

1. VoIP and Bluetooth Mobile full integration.
2. Compatible with SIP RFC543, RFC3261.
3. Support call Origination (BT to VoIP), call Termination (VoIP to BT).
4. Integrated web server for status and settings
5. Support SIP Proxy, or point to point application.
6. Option of one stage, fix number ; only GP-710 has free dial function.
7. Bluetooth with auto pairing and auto searching function.
8. QoS and Digital Transmit.
9. Could use with GSM/CDMA/3G/UMTS/4G various Bluetooth mobile phone.

GP-710/712/630/632/630-3G/632-3G work with 3CX phone system Video Configuration Guide:
http://www.youtube.com/watch?v=6W6i_OLozDs

Application Diagram:



Specification:


VoIP
1. Web Browser
2. Call Orgination Setting (BT to VoIP)
3. Call Termination Setting (VoIP to BT)

Network Protocol:

1. SIP v1 (RFC2543), v2(RFC3261)
2. IP/TCP/UDP/RTP/RTCP
3. IP/ICMP/ARP/RARP/SNTP
4. DHCP Client/ PPPoE Client
5. DNS Client

NAT Traversal:

STUN

Power:

1. Interchangeable switching power adapter
2. AC plug type: US, EU, AU, UK
3. Features: High reliability, high efficiency, small size and power indicator
4. Input:AC100-240V, 50/60HZ
5. Output:DC12V/1000mA

Voice Quality:

1. VAD: Voice activity detection
2. CNG: Comfort noise generator
3. LEC: Line echo canceller
4. Packet Loss Compensation
5. Adaptive Jitter Buffer

Bluetooth:

1. Bluetooth Specification V2.
2. Carrier Frequency 2400MHz to 2483.5MHz
3. Modulation Method GFSK,1Mbps,0.5BT Gaussian
4. Output level, class 2
5. 10 meters working range

Package

Bluetooth VoIP Gateway:147mm X 108mm X 27mm
2.4GHz Antenna
Power Supply:Input 100-240VAC 50-60Hz Output 12VDC 1000mA
1.8m Network Cable


Gempro Technology Inc.
E-mail: info@gempro.com.tw
webs: http://www.gempro.com.tw

Gempro Distributor: VoIPDistri.com
Gempro order Link: Gempro GP-710 GSM Bluetooth VoIP Gateway (SIP)
Gempro order Link: Gempro GP-712 GSM Bluetooth VoIP Gateway (SIP)





COST-SAVING PROGRAM

Gempro GP-510 Fixed Wireless (PBX) Bluetooth Mobile Terminal for GSM/CDMA/WCDMA/3.5G

GP-510 uses Bluetooth technology to connect Bluetooth mobile phone with common
telephone or PBX. It makes PBX immediately own a trunk which has mobile routing. User can not
only get far away from the electromagnetic wave, but also save expenses without changing their
habits of using the table phone.

Feature


1.Using Bluetooth to make PBX immediately own a trunk which has mobile routing.
2.GP-510 directly pairs mobile phone via Bluetooth; it has nothing to do with telecommunication provider or frequency.
3.Just using table phone to dial to keep users far away from the electromagnetic wave.
4.Speed Dial Function.
5.The calling will be transferred to PSTN automatically when power failure, Bluetooth mobile phone is unpaired or out of range.
6.Digital volume and gain adjustment.
7.Local code setting and code add automatically. There is no need for users to change their dialing habit.
8.Bluetooth pairing and searching automatically.
9.Transmit high quality voice.
10.Compatible with GSM/CDMA/3G/3.5G/WCDMA Bluetooth mobile phone.
11.Using Bluetooth technology, so the connection doesn’t need any wires.
12.Phone (PBX) can dial out and answer Skype. (Dongle & API have to support VoIP)
13.100 sets phone book Speed Dial & memorize.
14.No need to change the dialing habit to Skype out.

Specification

Metering Signals: 12KHz, 16KHz,Polarity Reversal
A/D ,D/A : G.711:A-law or u-law PCM Mode
DTMF : Detect & Generator
Caller ID Format: DTMF
Tone Programmable: DIAL Tone & Busy Tone
Power : AC110/220V 50/60HZ

Bluetooth

Bluetooth Specification V2.
Carrier Frequency 2400MHz to 2483.5MHz
Modulation Method GFSK,1Mbps,0.5BT Gaussian
Output level, class 2
10 meters working range

PACKAGE

Bluetooth VoIP Gateway:147mm X 108mm X 27mm
2.4GHz Antenna
Wire*2
Power Supply:Input 100-240VAC 50-60Hz Output 12VDC 1000mA


The attachment id given is not valid.



Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22290413
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw





GP-514 4 Ports Fixed Wireless Terminal for all Cellular systems


GP-514 is a 4 ports Fixed Wireless Terminal.
It uses Bluetooth technology to connect Bluetooth mobile phone with common telephone or PBX,
and makes PBX immediately able to dial out and answer mobile call. User can not only get far away
from the electromagnetic wave, but also save expenses without changing their habits of using the table phone.



Feature:

1. Makes PBX able to direclty dial out and answer mobile call.
2. Use Bluetooth to pair mobile phone; it has nothing to do with telecommunication provider or frequency.
3. Just using table phone to dial to keep users far away from the electromagnetic wave.
4. Digital volume and gain adjustment.
5. Transmit high quality voice.
6. Compatible with GSM/CDMA/3G/3.5G/WCDMA Bluetooth mobile phone.
7. Each channel has 30 sets of dial plan, and can add or remove digits automatically. There is no need for users to change their dialing habit.
8. 30 sets phone book Speed Dial & memorize.




Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22290413
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw





Gempro GP-712A GSM/3G/4G SIP VoIP Gateway For All Systems(2 Ports)


The GP-712A is a revolutionary and innovative product. It Integrates VoIP and 2.4G Bluetooth technology in a device.
This makes the connection free from the limitation of frequency and telecommunication provider to become more
convenient and widely use. Therefore, it can also be widely used as GSM/CDMA/WCDMA/3G/3.5G VoIP Gateway.

Feature
1. VoIP and Bluetooth Mobile full integration.
2. Compatible with SIP RFC543, RFC3261.
3. Support call Origination (BT to VoIP), call Termination (VoIP to BT).
4. Integrated web server for status and settings.
5. Support SIP Proxy, or point to point application.
6. Option of one stage, fix number ; only GP-712 has free dial function.
7. Bluetooth with auto pairing and auto searching function.
8. QoS and Digital Transmit.
9. Could use with GSM/CDMA/3G/UMTS/4G various Bluetooth mobile phones.
10. 2 Bluetooth and 2 VoIP channels.

GP-710/712/630/632/630-3G/632-3G work with 3CX phone system Video Configuration Guide:
http://www.youtube.com/watch?v=6W6i_OLozDs

Specification

VoIP
1. Web Browser
2. Call Orgination Setting (BT to VoIP)
3. Call Termination Setting (VoIP to BT)

Network Protocol
1. SIP v1 (RFC2543), v2(RFC3261)
2. IP/TCP/UDP/RTP/RTCP
3. IP/ICMP/ARP/RARP/SNTP
4. DHCP Client/ PPPoE Client
5. DNS Client

NAT Traversal
STUN

Power
1. Interchangeable switching power adapter
2. AC plug type: US, EU, AU, UK
3. Features: High reliability, high efficiency, small size and power indicator
4. Input:AC100-240V, 50/60HZ
5. Output:DC12V/1000mA

Voice Quality
1. VAD: Voice activity detection
2. CNG: Comfort noise generator
3. LEC: Line echo canceller
4. Packet Loss Compensation
5. Adaptive Jitter Buffer

Bluetooth
1. Bluetooth Specification V2.
2. Carrier Frequency 2400MHz to 2483.5MHz
3. Modulation Method GFSK,1Mbps,0.5BT Gaussian
4. Output level, class 2
5. 10 meters working range

Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22290413
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw

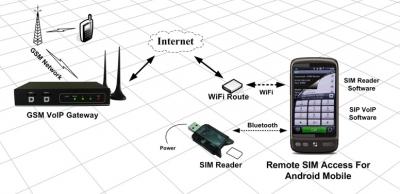

GP-060 SIM Card Reader for Android

GP-060 is Wireless SIM Card Reader. It can directly use Android Smartphone to register SIM Card
to remote GP-63x GSM VoIP Gateway via Wi-Fi Network. Since it doesn’t need PC to complete register,
it can meet the purpose of mobilization. With SIP VoIP software in Smartphone, it connects VoIP
Network and GSM Network to dial or answer GSM calls via the GP-63x Gateway.




Feature
1.Don’t need PC, and could use Smartphone Remote SIM Access directly.
2.Don’t need to get ROOT Access and don’t change Smartphone firmware.
3.Using Bluetooth interface.
4.Using with our GSM Gateway products only.

SpecificationSpecification
Support 5V,3.3V SIM Card
1 Status LED
USB Port (Power Only)


Smartphone requirements
Android 2.1 or higher
Bluetooth V2.0
Wi-Fi function
Install SIP VoIP software

Bluetooth
Bluetooth Specification V2
Carrier Frequency 2400MHz to 2483.5MHz
Modulation Method GFSK,1Mbps,0.5BT Gaussian
Output level, class 2
10 meters working range

Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22290413
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw


Gempro GP-708 GSM/3G/WCDMA VoIP PBX for all systems



Introduction

GP-708 is a revolutionary and innovative product with Bluetooth Interface built inside the IP-PBX.
With this technology you can connect GP-708 by the Bluetooth cell phone.
Meanwhile it can be independent from the limitation between frequency and Telecommunication Provider.
GP-708 becomes the VoIP PBX support with GSM/CDMA/WCDMA/3G/4G systems.
GP-708 is the best solution which is economized and easy to load.
http://www.gempro.com.tw/p708.html

Feature
1. Web based management
2. Built-in SIP/IAX Server
3. 8 Ports of Bluetooth trunks
4. SIP/IAX Extensions
5. Code: G.711-Ulaw, G.711-Alaw, G.726, G.729, GSM, SPEEX
6. Bluetooth Specification V2.0
7. Bluetooth working range: 10 meters


Package
GP-708 measurement : 183mm x 105mm x 30mm
2.4G Antenna : 8
Power Supply : Input 100-240VAC 50-60Hz/Output 12VDC 1000mA


Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22298778
E-mail:info@gempro.com.tw
http://www.gempro.com.tw



See also



CDMA Gateways from Hypermedia Systems


VOIP CDMA GATEWAY

The HyperGateway VoIP CDMA Gateway line of products provides a tailor-made solution for alternative carrier call termination and for call origination providers.
The VoIP CDMA Gateway is a complementary product to IP based equipments and supports up to 72 CDMA ports. By using HG-4000 there is no need for any external VoIP Gateways such as Cisco or Quintum.

VoIP CDMA Gateway main features:

  • From 16 to 72 CDMA ports
  • Advanced LCR and routing groups
  • IP address and DDI pattern restrictions
  • Remote pre-paid SIM recharge
  • Integrated antenna splitter
  • CDMA worldwide use
  • Redounded power supply - Option
  • WEB management and control


CDMA RUIM-Enabled Gateways NEW

The new CDMA RUIM Gateways are professional, heavy duty CDMA Gateways that offer great new business opportunities. When connected to alternative carrier's equipment/networks, these CDMA Gateways increase profits for call termination vendors.

Featuring seamless VOIP/PRI CDMA interoperability, service providers and system integrators can deploy total end-to-end IP telephony solutions to end-users, and alternative carriers can take advantage of the lower cost minute-based allotments offered by different RUIM cards.

Available:
VoIP CDMA Gateway HG-4000C series - supports up to 72 CDMA ports with RUIM cards
PRI CDMA Gateway HG-3000C series – supports up to 30 (+2) CDMA ports with RUIM cards

Major Advantages:

  • Fast ROI
  • Practical, easy to implement
  • Flexible and scalable
  • Value-added product
  • Reliable and proven technology
  • Compatible with PBX / IP-PBX systems of leading manufacturers worldwide
  • Online technical support and training
  • One point of contact for customer service
  • 24 months warranty


CDMA E1/T1 PRI GATEWAY for PBX

The Hypermedia Systems PRI CDMA Gateway provides superior voice technology for connecting PBX systems and IP-based systems with the cellular networks.

Main Features:
  • Up to 30+2 cellular ports
  • CDMA worldwide use (850/1900)
  • Comply with Cisco, Quintum, Asterisk and others
  • Integrated antennas combiner
  • WEB Remote management
  • High quality of voice
  • VoIP - Option
  • Fast and easy installation


Other related products:
3G VoIP Gateway
3G UMTS Analog Gateway
GSM Analog Gateway


For more information:

Contact: Contact Hypermedia
E-mail: sales@hyperms.com
Website: www.hyperms.com



Dinstar DWG2001/4/8 CDMA/GSM/HPSA VoIP Gateways


PRODUCT SUMMARY

The DWG2001/4/8 SIP/CDMA Gateways from Dinstar are a cost-effective SIP/CDMA gateway for SOHO, SMEs and system integrators. The Dinstar CDMA/VoIP gateways allow a SIP based IP PBX telephone system or VoIP line to be connected directly to the CDMA cellular network, which can dramatically lower the cost of mobile calls by taking advantage of lower mobile-to-mobile tariffs. The DWG gateways are Quad-band CDMA VoIP gateway that support 1-8 CDMA channels / SIM cards. The DWG gateways are fully compatible with Asterisk® based IP PBXs like Elastix®, trixbox®, and AsteriskNOW®, as well as other Open Source and proprietary SIP based IP PBXs, Switch, IVR, and VoIP gateway applications.

TARGET APPLICATIONS

  • SIP/CDMA gateway for SIP based IP PBX (e.g. Asterisk®) or VoIP line
  • Back up solution in case of a PSTN/VoIP failure
  • Mobile IP PBX (e.g. for trade shows, temporary offices, disaster recovery, etc.)
  • SMS gateway for batch sending/receiving text messages (e.g. appointment reminders, customer order updates, remote/field worker communications, etc.)
  • CDMA callback services

TECHNICAL SUMMARY

  • Voice codecs supported include G.723.1, G.729A/B, G.711 (a-law and u-law)
  • Support for Fixed IP, DHCP, Automated NAT traversal using IETF STUN
  • Protocols supported include SIP RFC3261, TCP/UDP/IP, RTP/RTCP, HTTP, ARP/RARP, ICMP, DNS, DHCP, NTP, TELNET, PPPoE, STUN
  • Quad-Band CDMA 850/900/1800/1900 MHz
  • Send/receive batch SMS up to 300 characters, support for AT commands
  • Unstructured Supplementary Services Data (USSD) support
  • Adjustable TX/RX gain: -6db~+6db
  • Offhook Auto-Dial Hotline service
  • Built-in PPPoE client for establishing DSL link connection with ISP
  • DTMF Signaling via RFC 2833 or SIP Info
  • LEDs provide operational status information
  • Support for external antenna
  • PIN support for locked SIM cards
  • Enhanced (Carrier Grade) Echo Cancellation: ITU Rec. G 168, up to 128 ms tail size
  • Adaptive Jitter Buffer, Packet loss concealment (PLC), Comfort noise generation (CNG) ,Voice activity detection (VAD)
  • HTTP Web configuration support, Auto Provisioning support
  • Certificates: CE, FCC, ROHS

MODELS

DWG2001 - 1 Channel VoIP CDMA Gateway

  • 1 External hot-plug SIM card slot for easy access
  • LAN interface: 1 x RJ45 10/100Mbps autosensing
  • WAN interface: 1 x RJ45 10/100Mbps autosensing
  • Weight: Gateway only - 185g, Package as shipped - 0.5Kg
  • Dimensions (L x W x H): 112mm x 76mm x 24mm
  • Universal Switching Power Adaptor: Input: 100-240VAC; 50-60 Hz, Output: 12VDC, 1000mA
  • Power Consumption: 5W

DWG2004 - 4 Channel VoIP CDMA Gateway

  • Rack mountable 1U chassis
  • 4 hot-plug SIM card slots with external cover for easy access
  • LAN interface: 3 x RJ45 10/100Mbps autosensing
  • WAN interface: 1 x RJ45 10/100Mbps autosensing
  • Weight: Gateway only - 4Kg, Package as shipped 4.85Kg
  • Dimensions (W x D x H): 440mm x 305mm x 44mm
  • Power: 100-240VAC; 50-60 Hz
  • Power Consumption: 30W

DWG2008 - 8 Channel VoIP CDMA Gateway

  • Rack mountable 1U chassis
  • 8 hot-plug SIM card slots with external cover for easy access
  • LAN interface: 3 x RJ45 10/100Mbps autosensing
  • WAN interface: 1 x RJ45 10/100Mbps autosensing
  • Weight: Gateway only - 4.25Kg, Package as shipped 5.1Kg
  • Dimensions (W x D x H): 440mm x 305mm x 44mm
  • Power: 100-240VAC; 50-60 Hz
  • Power Consumption: 30W

Where to Buy

Listed alphabetically in country/region (then company name) order:


For More Information

Home page: http://www.dinstar.com
E-Mail: support@dinstar.com / sales@dinstar.com
Telephone: +86 755 61302265



Yeastar VoIP GSM/CDMA/UMTS Gateway


GSM/CDMA/UMTS Channels

Yeastar TG GSM/CDMA/UMTS Gateways connect GSM/CDMA/UMTS network to VoIP network directly and support two-way communication: GSM/CDMA/UMTS to VoIP and VoIP to GSM/CDMA/UMTS. It is the best solution ever to connect IP-based telephone systems, and softswithces to GSM/CDMA/UMTS network; and also the best fallback solution when landline goes down.
TG series include TG100, TG200, TG400, TG800 and TG1600.

TG Series-VoIP GSM/CDMA/UMTS Gateway


Benefits


  • Cost Savings – Cost-Savings on phone calls between mobiles or to PSTN.
  • Back up – Should the landline network go down, GSM can be used as a cost-effective backup.
  • Easy to install – IP device with Web based management interface.
  • Easy to integrate.

Specifications

  • Number of GSM channels: 1/2/4/8/16
  • Network type
    • GSM Frequency: 850/900/1800/1900 MHz
    • UMTS Frequency: 850/1900 MHz, 850/2100 MHz, 900/2100 MHz
    • CDMA Frequency: 800 MHz
  • Protocol: SIP (RFC3261),IAX2
  • Transport Protocol: UDP,TCP,TLS,SRTP
  • DTMF: RFC2833, SIP INFO, In-band
  • Codec: G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
  • LAN: 1 (10/100Mbps)
  • Network: DHCP, Firewall, VLAN, DDNS, OpenVPN.
  • Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)

Features

  • SIP proxy Registrar for IP phones included
  • Incoming call routing
  • Outgoing call routing
  • SMS sending and receiving (WEB interface)
  • Call Back
  • LCR (Least Cost Routing)
  • Top voice quality (EFR super sound)
  • Simple web based configuration
  • Easy to integrate / Easy to install

Contact Information



WaveTramp Technologies, Inc


WaveTramp Technologies, Inc offers a IP to CDMA gateway with PBX functions. The WPBX series product line can have up to 8 channels of CDMA and 80 FXS/FXO ports. It is a perfect solution for call termination from VOIP network to CDMA network with the LCR principle.

Even we are a product company, we see our products as solutions. For more information about our solution offers with case studies, please visit

http://www.wavetramp.com/solution-en.php



Contact us at:

sales@wavetramp.com

PORTech MV-370C VoIP CDMA Gateway , MT-350C CDMA Fixed wireless Terminal ,DMT-C E1 CDMA Channel Bank

PORTech is a manufacturer in taiwan.
PORTech major
(1) 30 channels (E1 PRI or VoIP) (GSM or CDMA) Channel Bank(IP GSM Gateway build in VoIP CARD)
(2) SIM Server,SIM Bank
(3) Antenna Combiner: collect 32 antennas into 1 antenna (e.g Outdoor directional antenna or Yigi antenna)
(4) 1 port /2 ports/4 ports/8 ports VoIP GSM/CDMA/UMTS(3G) Gateway
(5) 1 port/4 ports/8 ports GSM Fixed Wireless Terminals(Follow Me GSM Gateway)-call transfer(GSM TO PSTN,PSTN TO GSM)
(6) Skype GSM Gateway ,Skype gateway(build in pc without computer)
(7) Smart Power Monitor,IP Power Switch /PSTN Power Switch(4 Ports /8 ports)-Remote power manage by PSTN and WEB
http://www.portech.com.tw

MV-370C : 1 channel VoIP CDMA Gateway


for call termination (VoIP to CDMA) and origination (CDMA to VoIP). It is SIP based and compatible with Asterisk,Trixbox,VoIPBuster.
MV-370C:CDMA 800MHZ,CDMA 2000

MT-350C~1 ports CDMA Fixed Wireless Terminals


It has FXS,FXO,CDMA interface that connect with PBX,PSTN or VoIP Gateway
Auto-select economic route (LCR)
GSM Prefix No.Setting (50 sets)
Polarity reversing function
MT-350C doesn't have call transfer-follow Me function.

DMT-C E1 CDMA Channel Bank

DMT accepts incoming call from E1/T1 PRI of PSTN or
PBX and choose one CDMA channel to dial out according to the prefix of the
destination mobile number. In this way, we can have least cost routing.
DMT can provide Call Detail Record (CDR) for traffic and accounting management.
ISDN PRI interface: 1 port
CDMA interface: 31 ports
Optional external SCE-900: Expands SIM card upto 32 pieces per CDMA channel.
Optional external SCBox: Expands SIM card upto 4 pieces per CDMA channel.
Applicable for telecom service providers
VoIP application: Gateway's E1/T1 port connects DMT's E1/T1 port
Calling time: user can assign the calling time for each sheet of the SIM
card.When the time runs out, system will block this CDMA port, or switch
to next unused SIM card (in the case that SCE is installed).

DMT-C E1 CDMA Channel Bank
CDMA 2000(800MHZ)

Antenna collecting Box: Base equipment.


If you want to connect extra Outdoor directional antenna or Yigi antenna.....,you can purchase option Antenna Combiner(AC-32)



PSTN Power Switch / IP Power Switch

If your control room is usually no body there,you can consider our Smart Power Monitor(4 ports)- Remote power on/ off /reboot by PSTN and WEB..



If you have interest,please contact us

PORTech Communications Inc.
150 Shiang Shung N.Rd,Taichung,Taiwan
http://www.portech.com.tw
E-mail:info@portech.com.tw
http://www.portech.com.tw/eweb/PORTECH_dm.pdf ---- PORTech Products list
You can click the product's picture to read the catalog.




Gempro GP-710A GSM/3G/4G SIP VoIP Gateway for all systems

GP-710A is a revolutionary and innovative product. It Integrates VoIP and
2.4G Bluetooth technology in a device. This makes the connection free from the limitation
of frequency and telecommunication provider to become more convenient and widely use.
Therefore, it can also be widely used as GSM/CDMA/WCDMA/3G/3.5G VoIP Gateway.

Feature:

1. VoIP and Bluetooth Mobile full integration.
2. Compatible with SIP RFC543, RFC3261.
3. Support call Origination (BT to VoIP), call Termination (VoIP to BT).
4. Integrated web server for status and settings
5. Support SIP Proxy, or point to point application.
6. Option of one stage, fix number ; only GP-710 has free dial function.
7. Bluetooth with auto pairing and auto searching function.
8. QoS and Digital Transmit.
9. Could use with GSM/CDMA/3G/UMTS/4G various Bluetooth mobile phone.

GP-710/712/630/632/630-3G/632-3G work with 3CX phone system Video Configuration Guide:
http://www.youtube.com/watch?v=6W6i_OLozDs

Application Diagram:



Specification:


VoIP
1. Web Browser
2. Call Orgination Setting (BT to VoIP)
3. Call Termination Setting (VoIP to BT)

Network Protocol:

1. SIP v1 (RFC2543), v2(RFC3261)
2. IP/TCP/UDP/RTP/RTCP
3. IP/ICMP/ARP/RARP/SNTP
4. DHCP Client/ PPPoE Client
5. DNS Client

NAT Traversal:

STUN

Power:

1. Interchangeable switching power adapter
2. AC plug type: US, EU, AU, UK
3. Features: High reliability, high efficiency, small size and power indicator
4. Input:AC100-240V, 50/60HZ
5. Output:DC12V/1000mA

Voice Quality:

1. VAD: Voice activity detection
2. CNG: Comfort noise generator
3. LEC: Line echo canceller
4. Packet Loss Compensation
5. Adaptive Jitter Buffer

Bluetooth:

1. Bluetooth Specification V2.
2. Carrier Frequency 2400MHz to 2483.5MHz
3. Modulation Method GFSK,1Mbps,0.5BT Gaussian
4. Output level, class 2
5. 10 meters working range

Package

Bluetooth VoIP Gateway:147mm X 108mm X 27mm
2.4GHz Antenna
Power Supply:Input 100-240VAC 50-60Hz Output 12VDC 1000mA
1.8m Network Cable


Gempro Technology Inc.
E-mail: info@gempro.com.tw
webs: http://www.gempro.com.tw

Gempro Distributor: VoIPDistri.com
Gempro order Link: Gempro GP-710 GSM Bluetooth VoIP Gateway (SIP)
Gempro order Link: Gempro GP-712 GSM Bluetooth VoIP Gateway (SIP)





COST-SAVING PROGRAM

Gempro GP-510 Fixed Wireless (PBX) Bluetooth Mobile Terminal for GSM/CDMA/WCDMA/3.5G

GP-510 uses Bluetooth technology to connect Bluetooth mobile phone with common
telephone or PBX. It makes PBX immediately own a trunk which has mobile routing. User can not
only get far away from the electromagnetic wave, but also save expenses without changing their
habits of using the table phone.

Feature


1.Using Bluetooth to make PBX immediately own a trunk which has mobile routing.
2.GP-510 directly pairs mobile phone via Bluetooth; it has nothing to do with telecommunication provider or frequency.
3.Just using table phone to dial to keep users far away from the electromagnetic wave.
4.Speed Dial Function.
5.The calling will be transferred to PSTN automatically when power failure, Bluetooth mobile phone is unpaired or out of range.
6.Digital volume and gain adjustment.
7.Local code setting and code add automatically. There is no need for users to change their dialing habit.
8.Bluetooth pairing and searching automatically.
9.Transmit high quality voice.
10.Compatible with GSM/CDMA/3G/3.5G/WCDMA Bluetooth mobile phone.
11.Using Bluetooth technology, so the connection doesn’t need any wires.
12.Phone (PBX) can dial out and answer Skype. (Dongle & API have to support VoIP)
13.100 sets phone book Speed Dial & memorize.
14.No need to change the dialing habit to Skype out.

Specification

Metering Signals: 12KHz, 16KHz,Polarity Reversal
A/D ,D/A : G.711:A-law or u-law PCM Mode
DTMF : Detect & Generator
Caller ID Format: DTMF
Tone Programmable: DIAL Tone & Busy Tone
Power : AC110/220V 50/60HZ

Bluetooth

Bluetooth Specification V2.
Carrier Frequency 2400MHz to 2483.5MHz
Modulation Method GFSK,1Mbps,0.5BT Gaussian
Output level, class 2
10 meters working range

PACKAGE

Bluetooth VoIP Gateway:147mm X 108mm X 27mm
2.4GHz Antenna
Wire*2
Power Supply:Input 100-240VAC 50-60Hz Output 12VDC 1000mA


The attachment id given is not valid.



Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22290413
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw





GP-514 4 Ports Fixed Wireless Terminal for all Cellular systems


GP-514 is a 4 ports Fixed Wireless Terminal.
It uses Bluetooth technology to connect Bluetooth mobile phone with common telephone or PBX,
and makes PBX immediately able to dial out and answer mobile call. User can not only get far away
from the electromagnetic wave, but also save expenses without changing their habits of using the table phone.



Feature:

1. Makes PBX able to direclty dial out and answer mobile call.
2. Use Bluetooth to pair mobile phone; it has nothing to do with telecommunication provider or frequency.
3. Just using table phone to dial to keep users far away from the electromagnetic wave.
4. Digital volume and gain adjustment.
5. Transmit high quality voice.
6. Compatible with GSM/CDMA/3G/3.5G/WCDMA Bluetooth mobile phone.
7. Each channel has 30 sets of dial plan, and can add or remove digits automatically. There is no need for users to change their dialing habit.
8. 30 sets phone book Speed Dial & memorize.




Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22290413
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw





Gempro GP-712A GSM/3G/4G SIP VoIP Gateway For All Systems(2 Ports)


The GP-712A is a revolutionary and innovative product. It Integrates VoIP and 2.4G Bluetooth technology in a device.
This makes the connection free from the limitation of frequency and telecommunication provider to become more
convenient and widely use. Therefore, it can also be widely used as GSM/CDMA/WCDMA/3G/3.5G VoIP Gateway.

Feature
1. VoIP and Bluetooth Mobile full integration.
2. Compatible with SIP RFC543, RFC3261.
3. Support call Origination (BT to VoIP), call Termination (VoIP to BT).
4. Integrated web server for status and settings.
5. Support SIP Proxy, or point to point application.
6. Option of one stage, fix number ; only GP-712 has free dial function.
7. Bluetooth with auto pairing and auto searching function.
8. QoS and Digital Transmit.
9. Could use with GSM/CDMA/3G/UMTS/4G various Bluetooth mobile phones.
10. 2 Bluetooth and 2 VoIP channels.

GP-710/712/630/632/630-3G/632-3G work with 3CX phone system Video Configuration Guide:
http://www.youtube.com/watch?v=6W6i_OLozDs

Specification

VoIP
1. Web Browser
2. Call Orgination Setting (BT to VoIP)
3. Call Termination Setting (VoIP to BT)

Network Protocol
1. SIP v1 (RFC2543), v2(RFC3261)
2. IP/TCP/UDP/RTP/RTCP
3. IP/ICMP/ARP/RARP/SNTP
4. DHCP Client/ PPPoE Client
5. DNS Client

NAT Traversal
STUN

Power
1. Interchangeable switching power adapter
2. AC plug type: US, EU, AU, UK
3. Features: High reliability, high efficiency, small size and power indicator
4. Input:AC100-240V, 50/60HZ
5. Output:DC12V/1000mA

Voice Quality
1. VAD: Voice activity detection
2. CNG: Comfort noise generator
3. LEC: Line echo canceller
4. Packet Loss Compensation
5. Adaptive Jitter Buffer

Bluetooth
1. Bluetooth Specification V2.
2. Carrier Frequency 2400MHz to 2483.5MHz
3. Modulation Method GFSK,1Mbps,0.5BT Gaussian
4. Output level, class 2
5. 10 meters working range

Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22290413
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw


GP-060 SIM Card Reader for Android

GP-060 is Wireless SIM Card Reader. It can directly use Android Smartphone to register SIM Card
to remote GP-63x GSM VoIP Gateway via Wi-Fi Network. Since it doesn’t need PC to complete register,
it can meet the purpose of mobilization. With SIP VoIP software in Smartphone, it connects VoIP
Network and GSM Network to dial or answer GSM calls via the GP-63x Gateway.




Feature
1.Don’t need PC, and could use Smartphone Remote SIM Access directly.
2.Don’t need to get ROOT Access and don’t change Smartphone firmware.
3.Using Bluetooth interface.
4.Using with our GSM Gateway products only.

SpecificationSpecification
Support 5V,3.3V SIM Card
1 Status LED
USB Port (Power Only)


Smartphone requirements
Android 2.1 or higher
Bluetooth V2.0
Wi-Fi function
Install SIP VoIP software

Bluetooth
Bluetooth Specification V2
Carrier Frequency 2400MHz to 2483.5MHz
Modulation Method GFSK,1Mbps,0.5BT Gaussian
Output level, class 2
10 meters working range

Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22290413
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw


Gempro GP-708 GSM/3G/WCDMA VoIP PBX for all systems



Introduction

GP-708 is a revolutionary and innovative product with Bluetooth Interface built inside the IP-PBX.
With this technology you can connect GP-708 by the Bluetooth cell phone.
Meanwhile it can be independent from the limitation between frequency and Telecommunication Provider.
GP-708 becomes the VoIP PBX support with GSM/CDMA/WCDMA/3G/4G systems.
GP-708 is the best solution which is economized and easy to load.
http://www.gempro.com.tw/p708.html

Feature
1. Web based management
2. Built-in SIP/IAX Server
3. 8 Ports of Bluetooth trunks
4. SIP/IAX Extensions
5. Code: G.711-Ulaw, G.711-Alaw, G.726, G.729, GSM, SPEEX
6. Bluetooth Specification V2.0
7. Bluetooth working range: 10 meters


Package
GP-708 measurement : 183mm x 105mm x 30mm
2.4G Antenna : 8
Power Supply : Input 100-240VAC 50-60Hz/Output 12VDC 1000mA


Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22298778
E-mail:info@gempro.com.tw
http://www.gempro.com.tw



See also



Created by: proza, Last modification: Mon 21 of Sep, 2015 (06:59 UTC) by michaelchan
Please update this page with new information, just login and click on the "Edit" or "Discussion" tab. Get a free login here: Register Thanks! - Find us on Google+
