SER and Microsoft OCS

Project Description

This is a how to guide on using SER to redirect SIP traffic from One Microsoft OCS Mediation Server to Many SIP gateways.

Currently Microsoft requires a one to one relationship between an OCS Mediation Server and a SIP gateway. SER can be used to redirect SIP traffic from one OCS Mediation Server to different SIP gateways based on the Call To SIP URI.

Please Note - No RTP traffic passes through the SER Server.

Other Mods and Hacks - http://voipen.blogspot.com/

Project Goals

  • One OCS Mediation routing to Many SIP Gateways - Yes
  • Outbound from OCS Call Completion - Yes
  • Inbound into OCS Call Completion - Yes - Does not route through SER
  • Far End/Telephone Disconnect/Hangup - Yes - Does not route through SER
  • Near End/OCS Disconnect/Hangup - Yes - Does route through SER

Future Project Goals

  • MySQL database lookup to modify Call To SIP URI
    • A database lookup would simplify the manipulation of Call To SIP URI's by performing this step inside IpTel SER instead at the various SIP Gateways

Legend / Key

IpTel SER Server
  • IP address - 1.1.1.1
OCS Mediation Server
  • IP address - 2.2.2.2
Dialogic Gateway 1 - Chicago IL
  • IP address - 3.3.3.3
Dialogic Gateway 2 - Dallas TX
  • IP address - 4.4.4.4
Dialogic Gateway 3 - St Louis MO
  • IP address - 5.5.5.5

Call Flow - Simplified



SER Configuration File


ser.cfg

Microsoft OCS Mediation Server Configuration

PSTN Gateway next hop
  • IP address - 1.1.1.1 - IpTel SER Server

Dialogic SIP Gateway Configuration

Gateway - Gateway Routing Tab - VoIP Endpoint ID
  • IP address - 1.1.1.1 - IpTel SER Server
  • IP address - 2.2.2.2 - OCS Mediation Server

Dial Plan - Inbound TDM Routing Tab - Outbound VoIP Information
  • URI - 2.2.2.2 - OCS Mediation Server

Visits - 26754

Project Description

This is a how to guide on using SER to redirect SIP traffic from One Microsoft OCS Mediation Server to Many SIP gateways.

Currently Microsoft requires a one to one relationship between an OCS Mediation Server and a SIP gateway. SER can be used to redirect SIP traffic from one OCS Mediation Server to different SIP gateways based on the Call To SIP URI.

Please Note - No RTP traffic passes through the SER Server.

Other Mods and Hacks - http://voipen.blogspot.com/

Project Goals

  • One OCS Mediation routing to Many SIP Gateways - Yes
  • Outbound from OCS Call Completion - Yes
  • Inbound into OCS Call Completion - Yes - Does not route through SER
  • Far End/Telephone Disconnect/Hangup - Yes - Does not route through SER
  • Near End/OCS Disconnect/Hangup - Yes - Does route through SER

Future Project Goals

  • MySQL database lookup to modify Call To SIP URI
    • A database lookup would simplify the manipulation of Call To SIP URI's by performing this step inside IpTel SER instead at the various SIP Gateways

Legend / Key

IpTel SER Server
  • IP address - 1.1.1.1
OCS Mediation Server
  • IP address - 2.2.2.2
Dialogic Gateway 1 - Chicago IL
  • IP address - 3.3.3.3
Dialogic Gateway 2 - Dallas TX
  • IP address - 4.4.4.4
Dialogic Gateway 3 - St Louis MO
  • IP address - 5.5.5.5

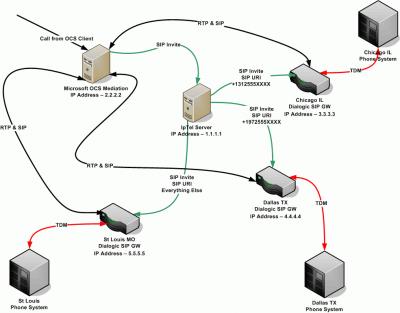

Call Flow - Simplified



SER Configuration File


ser.cfg

Microsoft OCS Mediation Server Configuration

PSTN Gateway next hop
  • IP address - 1.1.1.1 - IpTel SER Server

Dialogic SIP Gateway Configuration

Gateway - Gateway Routing Tab - VoIP Endpoint ID
  • IP address - 1.1.1.1 - IpTel SER Server
  • IP address - 2.2.2.2 - OCS Mediation Server

Dial Plan - Inbound TDM Routing Tab - Outbound VoIP Information
  • URI - 2.2.2.2 - OCS Mediation Server

Visits - 26754
