ST2030 Configuration HowTo

Thomson ST2030

How To Configure ST2030 Phone (SIP)

Access the Web Interface


  1. Press and hold the MENU key to view IP address of phone. This may not work for very old firmware, in which case access the menu information page for the same information.
  2. Use web browser on PC connected to the same network and access URL http://1.2.3.4/admin.html where 1.2.3.4 is the IP address of the phone from above. The admin.html cannot be left out, or the configuration options will be missing.
  3. Log into the web page using username administrator and password 784518.

(You can click the pictures for more detailed view)

Access the configuration page

  1. Once logged in, select SETUP from the top menu bar, then VoIP Service Basic Setup from the left menu bar.
  2. Press the EDIT button after Profile 1 to view the current settings.

Change the configuration

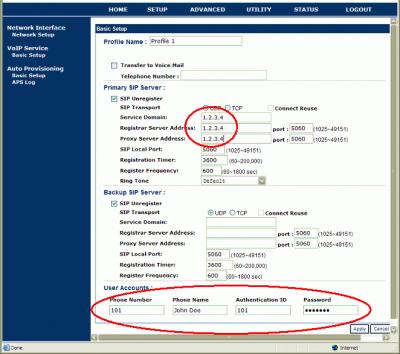

  1. Make changes as needed to Primary Sip Server:
    1. Service Domain: Usually the IP address of the SIP server
    2. Registrar Server: Usually the IP address of the SIP server
    3. Proxy Server: Usually the IP address of the SIP server
    4. Normally, the port number would not need to be changed from 5060 unless the service requires it, such as Vonage.
  2. Make changes as needed to User Accounts:
    1. Phone Number: The numeric phone number (DID or Extension) assigned to this phone. Often this is the same as authentication ID.
    2. Phone Name: The caller ID Name field identifying this phone during outgoing calls. Also displayed on LCD. This is not critical to have set to a particular value.
    3. Authentication ID: The SIP user account name that must be used to log into the registration server or authenticate calls.
    4. Password: The SIP password for authentication.
  3. Press Apply to save the configuration. Reboot phone if necessary.

Many other operational settings (such as BLF) can be changed from the Advanced tab if desired.


How To Configure ST2030 Phone (MGCP)

Access the Web Interface

  1. Press MENU key (not softkey), then Admin, View param, Network config, and scroll down twice to see IP address.
  2. Use web browser on PC connected to the same network and access URL http://1.2.3.4/admin.html where 1.2.3.4 is the IP address of the phone from above. The admin.html cannot be left out, or the configuration options will be missing.
  3. Log into the web page using username administrator and password 784518.

(You can click the pictures for more detailed view)

Access the configuration page

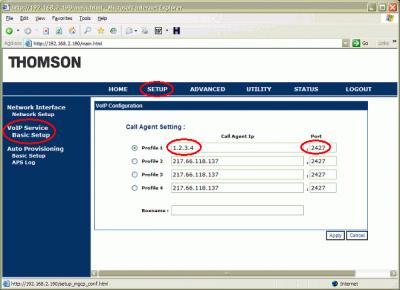

  1. Once logged in, select SETUP from the top menu bar, then VoIP Service Basic Setup from the left menu bar.
  2. Enter the Call Agent IP Address and insure the Port is set correctly.
  3. Press the Apply button to save the changes, then press Restart on the subsequent page to reboot the phone.

NOTE: For XML deck file support, it is necessary to use an Auto Provisioning server, which can be set under Auto Provisioning Basic Setup, or by having the TFTP server address provided by DHCP.

Created by: stgnet, Last modification: Thu 17 of May, 2007 (18:35 UTC)
