Sysmaster Tornado M5

SysMaster Tornado M5 IP Phone

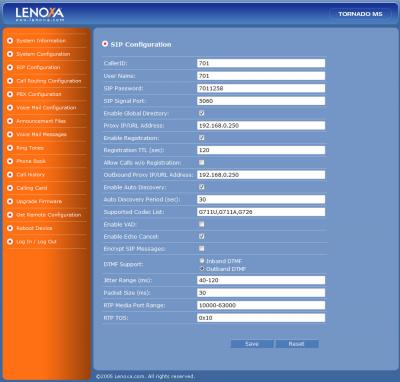

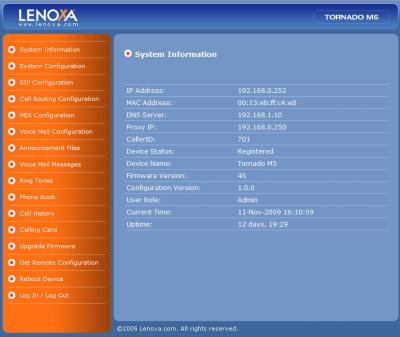

Shows a successful Registration with the PBX


CallerID 'must' be set to the SIP username (extension) or registration fails.

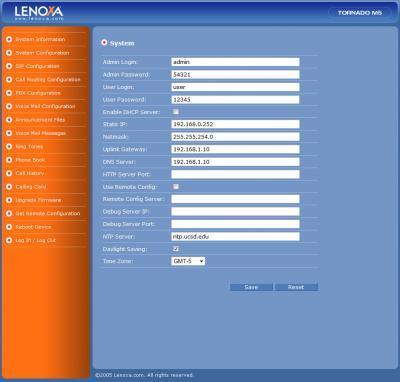

Default Username and Password for the M5 are:
user|12345
admin|54321

On the PBX side, I used just a standard SIP Extension with defaults other then adding G726 to it.
SysMaster Tornado M5 IP Phone


Shows a successful Registration with the PBX


CallerID 'must' be set to the SIP username (extension) or registration fails.


Default Username and Password for the M5 are:
user|12345
admin|54321

On the PBX side, I used just a standard SIP Extension with defaults other then adding G726 to it.
Created by: theermine, Last modification: Wed 11 of Nov, 2009 (21:02 UTC)
