VOIP GSM Gateways

What's a VoIP GSM Gateway?

A VoIP GSM Gateway enables direct routing between IP, digital, analog and GSM networks. With these devices (fixed cellular terminals) companies can significantly reduce the money they spend on telephony, gp-especially the money they spend on calls from IP to GSM. The core idea behind cost saving with VoIP GSM Gateways is Least Cost Routing (LCR).

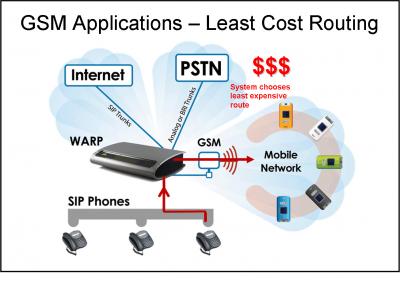

Through least cost routing the gateways select the most cost-effective telephone connection. They check the number which is dialed as well as rate information which is stored in an internal routing table. Because several SIM cards and GSM modules are integrated within the VOIP GSM Gateway it is able to make relatively cheaper GSM to GSM calls instead of expensive IP to GSM calls.

Who offers VoIP GSM Gateways?


Page Contents

See especially (alphabetic order):

================================

2N TELEKOMUNIKACE

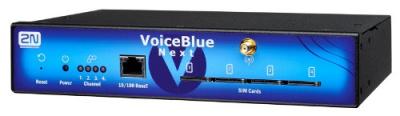

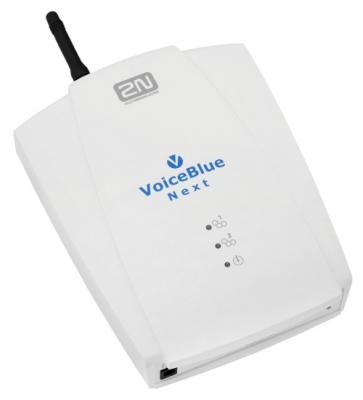

2N® VoiceBlue Next – A new generation of VoIP GSM/UMTS Gateway


2-channel version:


4-channel version:


Follower of 2N® VoiceBlue Lite offers you brand new hardware, intuitive setting via web interface, PoE (Power over Ethernet), SMS sending and receiving directly from the browser and connection of remote SIMs.


2N® VoiceBlue Next is CISCO and Elastix certified VoIP GSM gateway with perfect match for any SIP based IP PBX. You can check the list of supported and tested IP PBX system here.

Watch 2N® VoiceBlue Next presentation video (plugin installation required)


FEATURES:

  • 2 or 4 channel GSM/UMTS gateway
  • VoIP: SIP, G.711a/u, G.729
  • Support of external number portability database
  • Virtual SIM support – Remote SIM management
  • Elimination of roaming fees with Callback
  • Employee mobility - Split the call to desk and mobile phone
  • Power over Ethernet (PoE)
  • Number portability tone detection
  • Significant reduction in costs (LCR)
  • Free minutes counter with up 4 minute packages per SIM
  • Intelligent incoming call routing
  • Worldwide use (GSM 850/900/1800/1900MHz, UMTS (850/1800/1900MHz)
  • Top voice quality
  • DISA with voice navigation, user defined voice message for incoming calls

Contact us for more details


-==-

2N® StarGate - Large termination gateway providing up to 32 GSM/UMTS channels




Contact us for more details

-==-


Also avalable at:
  • Europe VoIPandGo.be Cheap Prices! Quick delivery by UPS.
  • Worldwide VoIP gateways from leading manufacturers at VoIP Supply
  • UK & Worldwide - VoIPon - Best Prices and Support on VoIP Gateways - Call for reseller pricing or International Shipping. VoIPon.




Acecom Teles

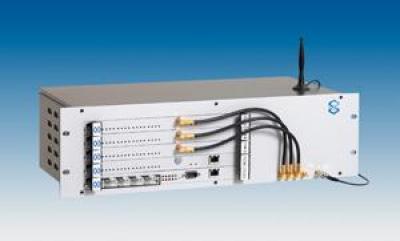

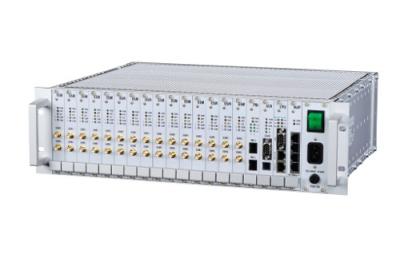

Teles IGate GSM Gateway E1 Channel Bank 32 SIMs (Only for Sale in AsiaPacific)

Price around USD 13K includes:

1) iGATE GSM 32 VoIP 32 channel mobile gateway (UMTS 2100 MHz, GSM 850/900/1800/1900 MHz), 32 VoIP channels, 4U 19"" housing, antenna splitter 8:2
2) iGATE SIM4-carrier
3) SIM card carrier for 4 SIM cards - 1 SIM per channel"
4) IGATE attena Omni-Directional

http://www.teles.de/data/pdf/products-and-solutions/en/ds-igate.pdf

Overview

VoIP gateways designed for carrier and enterprise market
Support for digital and analog ports
Available in 2 to 180 channels configuration
Wide selection of signaling protocols including ISDN, SS7, CAS/R2, SIP, H.323, MGCP
Toll-grade voice quality
Support for T.38 and G.711 fax transport
Field proven interoperability with large number of equipment providers
Minimized OPEX with TELES remote management and diagnostic system
Systems installed worldwide

The iGATE connects carrier networks to mobile networks and enhances the functionality of a corporate PBX.
Converts fixed-to-mobile calls into cost-saving mobile-to-mobile calls
Integrated Mobile Number Portability ends costly cross-network calls
Integrated VoIP gateway
PSTN support (PRI and BRI, SS7)
Powerful Least Cost Routing
Seamless integration into existing telecom infrastructures

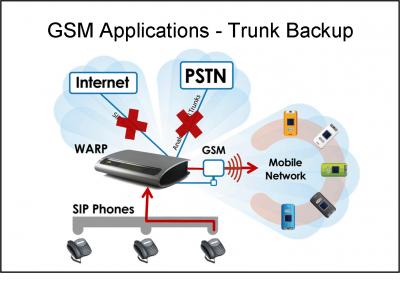

Fixed network backup via mobile
Fully vGATE SIM Server compatible
Field-proven Mobile Gateways
Invest in outstanding value and benefit from cost saving mobile-to-mobile calls. The premium suite of features ensures complete compatibility with your current carrier equipment and total interoperability with all third-party VoIP equipment.
Save time and effort during installation as a result of built-in, designed compatibility. The TELES iGATE and vGATE SIM Server are the only team of products designed from scratch to interoperate. You avoid complex and unstable third-party to third-party gateway to SIM server configurations.

Flexible and Versatile Connectivity
Benefit from outstanding versatility. The iGATE includes a VoIP gateway with up to 32 VoIP channels, 32 mobile channels, 2 E1/‌T1 interfaces, and a LAN connection. Independent of the network type, the iGATE can connect to different local or remote VoIP and mobile networks – including GSM, 3G UMTS and CDMA – and can switch between each single incoming to any outgoing channel.

Least Cost Routing
Save money on every phone call. iGATE's LCR (Least Cost Routing) features automatically route calls from your PBX – via the least expensive route – to each destination, whether that is over a standard fixed-line network, a mobile network, or over the Internet. Plus, LCR combines with other superior call-routing capabilities that are based on, for example, called party, CLIP/CLIR, time-of-day, time quota, service quality, and SIM card profile.

Guaranteed Voice Quality
Ensure superior voice quality. In addition to all the standard VoIP features – like echo cancellation, silence suppression and comfort noise – iGATE's premium feature set includes the best available DSPs, traffic shaping, and multi-level fallback. A variety of voice speech compression codecs reduce bandwidth need and RTP multiplexing technology enables even further bandwidth reduction.

Contact: mervinteo@acecomnet.com
Contact: +6592393439


VOIP GSM CDMA channel bank-VoIP GSM CDMA WCDMA Gateway,1 Port,4 Port,8 Ports 16 Port,32 Ports VoIP Gsm Gateway with IMEI changer.

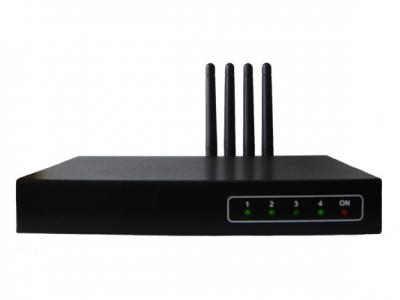

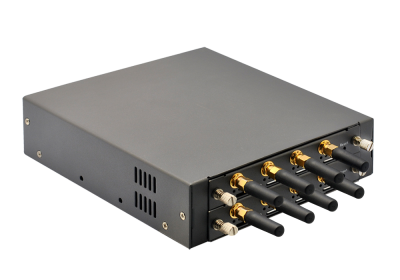

Product name : 4 Ports 4 Sim Cards GSM VOIP Gateway
Item : GN-VG004
Description:
The GN-VG004(VoIP GSM/CDMA/WCDMA Gateway) is a multi-functional product used to effectively implement the smooth transition between PLMN (GSM/CDMA/WCDMA) and VoIP network. With install the mobile SIM Card in gateway, you can register the mobile telephone on the VoIP Softswitch and also can be easily combined into arbitrary number of channels of large gateway group. It’s a cost-effective gateway for SOHO, SMEs and system integrators and it also opens up new revenue generating opportunities for service providers.

Features:
4 GSM/CDMA/WCDMA channels
Quad-band 800/900/1800/1900MHz
Signal strength indicator, numerous LEDs provide operational status
2/4 RJ45 ports, support router and bridge mode
Support MGCP/SIP protocols, anti-block optional
Balance alarm
Caller number hide or display
IMEI and PIN modified
SMS batch receiving/sending, AT command compatible
Custom IVR (25 seconds)
White & Black list
Echo cancellation for Speakerphone, Comfort noise generation (CNG) ,Voice activity detection (VAD)
Voice prompts, HTTP Web, Auto Provision support for configuration and update

Specifications:
Dimensions(Length Width Height, unit: mm) 440 380 44.5
Weight (unit: kg) 6
Operating temperature (unit: C) 0-40
Storage temperature (unit: C) -20-70
Operating humidity 10%-90%
GSM/CDMA/WCDMA SIM Ports 4 channel
Power input 220VAC/50Hz/0.2A
External power input 12VDC/1A
Power (unit: W) 6w
Network interface 10/100BASE-TX
Number of WAN ports 1
Number of LAN ports 3

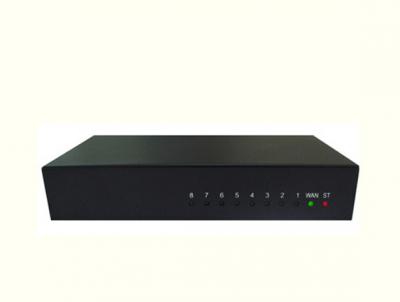

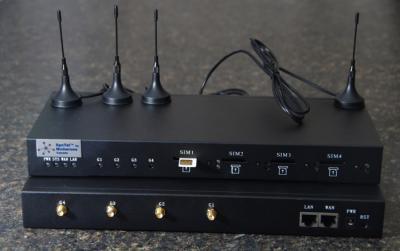

Product name : 8 Ports 8 Sim cards GSM VOIP Gateway
Item : GN-VG008
Details :
Description:
The GNEX-VG008(VoIP GSM/CDMA/WCDMA Gateway) is a multi-functional product used to effectively implement the smooth transition between PLMN (GSM/CDMA/WCDMA) and VoIP network. With install the mobile SIM Card in gateway, you can register the mobile telephone on the VoIP Softswitch and also can be easily combined into arbitrary number of channels of large gateway group. It’s a cost- effective gateway for SOHO, SMEs and system integrators and it also opens up new revenue generating opportunities for service providers.

Features:
8 GSM/CDMA/WCDMA channels
Quad-band 800/900/1800/1900MHz
Signal strength indicator, numerous LEDs provide operational status
4 RJ45 ports, support router and bridge mode
Support MGCP/SIP protocols, anti-block optional
Balance alarm
Caller number hide or display
IMEI and PIN modified
SMS batch receiving/sending, AT command compatible
Custom IVR (25 seconds)
White & Black list
Echo cancellation for Speakerphone ,Comfort noise generation (CNG) ,Voice activity detection (VAD)
Voice prompts, HTTP Web, Auto Provision support for configuration and update

Specification:
Dimensions(Length Width Height, unit: mm) 440 380 44.5
Weight (unit: kg) 6.2
Operating temperature (unit: C) 0-40
Storage temperature (unit: C) -20-70
Operating humidity 10%-90%
GSM/CDMA/WCDMA SIM Ports 8 channel
Power input 220VAC/50Hz/2A
External power input 12VDC/2A
Power (unit: W) 10w
Network interface 10/100BASE-TX
Number of WAN ports 1
Number of LAN ports 3

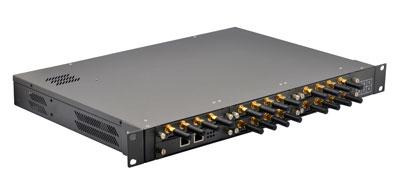

Product name : 16 Ports 64 Sim Cards GSM VOIP Gateway
Item : GN-VG016
Details :
16 Ports 64 Sim Card GSM+VOIP Gateway with Imei changer
16WAYS-64cards+VOIP is a 16 channels VoIP GSM Gateway for call
termination(VoIP to GSM and GSM to VoIP).
It is SIP based and compatible with Asterisk.
It can enable to make 16 calles simuitaneously from IP phone to GSM
network and GSM network to IP phone.
SIP (RFC3261) compliance
Web Setting and Management
IVR Voice configuration
Built-in NAT/IP sharing function
Basic PBX function (Private branch exchange)
Concentrated Network Management Systems(NMS)
Peer-to-Peer mode (non-Gatekeeper)
Line hunting
16 RJ-11 FXS ports or 16 RJ-11 FXO ports
E.164 (Telephone Number Plan)
DTMF dialing
PPPoE connection
DTMF detection/generation
FSK and DTMF Caller ID
Remote configuration/reset via Telnet
LAN interface : two RJ-45 connector of 10/100 Base-T
Microsoft Netmeeting v3.0 compatible
Support static IP and DHCP
Built-in DHCP Server function
QoS by ToS (Type Of Service)
SNTP (Simple Network Time Protocol)
Bell signal
Polarity reversal
Antenna socket (FME)
IP usage switch
Working state indicator
Signal Strength indicator
Function
(1) Supply two set extension to connect
(2) Incoming call display, and hide caller number(CID)
(3) Set local code, IP access code and special number;
(4) Set limiting to dial national long distance call mobile
(5) Phone call and local call set using IP or not
(6) Lock phone and telecom operator
(7) Lock card automatically lock card with random PIN code or fixed PIN code.
(8) 16 ports with 64 SIM, it can be switch automatic.
(9) IMEI change
(10) Following me function,GSM to VoIP and VoIP to GSM

Product name : 32 Ports VoIP Gsm Gateway with IMEI changer
Item : GN-VG032
Details :
Gnex-VG032 is a 32 channels VoIP GSM Gateway for call termination(VoIP to GSM and GSM to VoIP).
It is SIP based and compatible with Asterisk. It can enable to make 32 calles simuitaneously from IP phone to GSM network and GSM network to IP phone.
H.323,SIP (RFC3261) compliance
Web Setting and Management
IVR Voice configuration
Built-in NAT/IP sharing function
Basic PBX function (Private branch exchange)
Concentrated Network Management Systems(NMS)
Peer-to-Peer mode (non-Gatekeeper)
Line hunting
32 RJ-11 FXS ports or 32 RJ-11 FXO ports
E.164 (Telephone Number Plan)
DTMF dialing
PPPoE connection
DTMF detection/generation
FSK and DTMF Caller ID
Remote configuration/reset via Telnet
LAN interface : two RJ-45 connector of 10/100 Base-T
Microsoft Netmeeting v3.0 compatible
Support static IP and DHCP
Built-in DHCP Server function
QoS by ToS (Type Of Service)
SNTP (Simple Network Time Protocol)
Bell signal
Polarity reversal
Antenna socket (FME)
IP usage switch
Working state indicator
Signal Strength indicator
Function
(1) Supply two set extension to connect
(2) Incoming call display, and hide caller number(CID)
(3) Set local code, IP access code and special number;
(4) Set limiting to dial national long distance call??mobile
(5) Phone call and local call??set using IP or not ??
(6) Lock phone and telecom operator??
(7) Lock card automatically??lock card with random PIN code or fixed PIN code.
(8) 32 ports with 32 SIM
(9) IMEI changeable
(10) Following me function,GSM to VoIP and VoIP to GSM

Gnex:Manufacturer of VOIP Phone,Asterisk IPPBX,VOIP Gateway,VOIP GSM CDMA channel bank,VoIP GSM CDMA WCDMA Gateway,E1/T1 GSM Gateway,GSM/CDMA Wireless Terminal,E1/T1 Media Gateway.
Email:sales02@gnex168.com
Msn:gnexsales02@hotmail.com
SKype:gnexsales02
Tel :+86-755-86613285
Fax:+86-755-86613062
Mobile:+(86)13501568781
Web: http://www.gnex168.com




ANTRAX


http://www.antrax.mobi
Antrax 2u Mini Rack 2ch gsm gateway.jpg

What is ANTRAX

ANTRAX solution is a complex of software and hardware which is designed specially for the termination of voice traffic from VoIP (Voice over IP) to GSM networks (networks of mobile operators). Due to the module-based structure, flexible configuration which allows the product to meet any needs and requirements, ANTRAX solution can be implemented for effective calls termination either in large or in small volumes.

The Flames Group SIA company is a manufacturer and official supplier of ANTRAX - equipment for voice traffic termination ANTRAX. ANTRAX - a unique hardware and software complex for traffic from VoIP (Voice over IP) networks into GSM-network (mobile network operators). Due to the modular structure of the universal solution, it will be the best choice for GSM termination in any volume.

Products

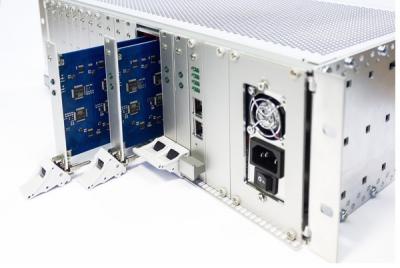

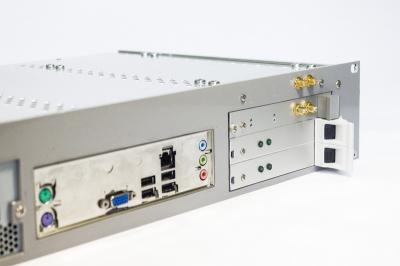

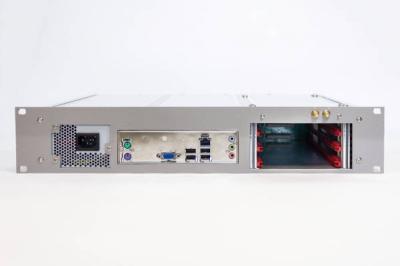

MINI RACK – All in one GSM gateway - SIM Server softswitch - SIM Storage

Antrax 2u Mini Rack 8ch gsm gateway2.jpg
Antrax 2u Mini Rack 2ch gsm gateway.jpg

Our ANTRAX 2U solution was specially created for those, who values the simplicity and compactness. It already has on-board PC, which helps the customer to avoid the problems connected with obtaining and placing the separate one. Having 2 on-board GSM modules, it still provides the users with three additional universal slots, which can be filled by 2-6 GSM modules or 1-60 SIM cards.
Antrax 2ch GSM board.jpg
Antrax 20 sims SIM board.jpg


FEATURES
  • Case 3 universal slots for placing sim-cards or gsm-boards;
  • On-board computer;
  • Up to 3 additional SIM-boards (with ability to accommodate up to 20 SIM cards on each board);
  • Up to 3 additional GSM-boards (with 2 GSM-channels per board).
  • Secure VPN connection
    • As a gift to a set ANTRAX 2U, our campaign provides two built-in GSM module!

PC Specification
CPU: lntel Atom D2500
RAM: 4 GB
Hard drive: 320 GB
Ethernet: 1 x Ethernet 10/100 Base-T RJ-45

For more information about Antrax 2U mini rack, please visit our website
http://en.antrax.mobi/products/minirack

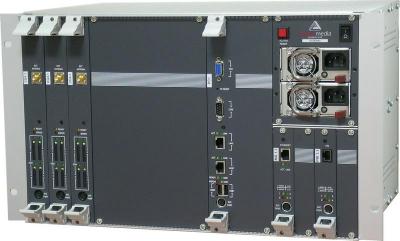

VoIP GSM gateway

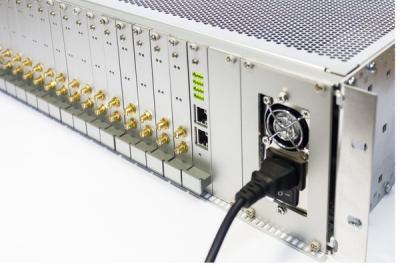

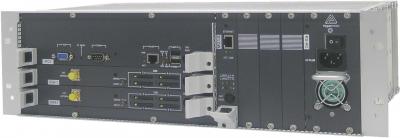

Antrax 3U GSM Sub Rack2.jpg

VoIP GSM-gateway (GSM bridge) – modular unit that transmits voice traffic from Internet to mobile network and vice versa.
This gsm gateway is a unique solution to do professional voice call termination and significantly reduce the cost of international calls and make the price equal to local tariff.
The client can choose individual structure of gateway, equipping it with the required number of GSM channels (2 to 30). This feature also means the flexibility in GSM gateway price setting.

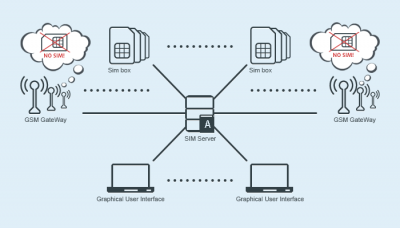

The modular architecture allows ANTRAX users to place SIM cards apart from GSM gateways and connect them via IP. This feature provides a huge advantage in terms of safety and removes limitations which could be applied to the topology of your GSM termination system.

FEATURES
  • Quad band GSM frequency bands;
  • IMEI change
  • Hot swap boards
  • Provides 1-15 hot-swappable boards providing 2-30 GSM channels
  • ACD modules giving not less than 4 minutes;
  • Possibility of SMS termination.

For more information about Antrax gsm gateway, please visit our website
http://en.antrax.mobi/products/gsmgateway

SIMBOX

Antrax Sim-box1.jpg
Antrax Sim-box2.jpg

SIM-box (also called SIM-bank or SIM card reader) – is one of hardware modules of ANTRAX Solution for GSM termination.
SIM box allows you to install and manage from 20 to 300 SIM cards of different mobile operators that enables work of several GSM gateways placed in different locations. You can keep your SIM cards away from the GSM gateway. It allows you to attach a separate SIM card for GSM/VoIP gateway module, enabling the same card to call from different points thereby reducing the risk of blocking.

FEATURES
  • Sub-rack with fifteen universal slots which provides power and cool the system
  • 1-15 SIM-boards that comprises 20 SIM cards
  • Operate the gateway without Sim-card inside it;
  • Store up to 300 SIM-cards of different operators in one place;
  • Each client has opportunity to choose individual structure of SIM box and use from 300 SIM cards during GSM termination.
  • It is possible to combine GSM and SIM boards in one rack, so it is gsm - sim box.

For more information about Antrax SIM BOX, please visit our website
http://en.antrax.mobi/products/simbox

SIM-server


antrax scheme.png

Our Sim Server provides the ability to:
- Performs complete management and control all elements of the system;
- Provides automatic control of the account,
- Complete simulation of the real behavior of the subscriber;
- Protect from automatic calls from operator.


For more information about Antrax SIM-server, please visit our website
http://en.antrax.mobi/products/simserver

GUI

Graphical User Interface provides the ability to:
- Monitors and controls the entire system in a real time
- Maintain Drag and Drop function;
- View real-time performance and CDR calls ASR, ACD;
- Combining the SIM card and channels in certain GSM and SIM groups.

For more information about Antrax, please visit our website
http://www.antrax.mobi

Contact information


For more information about Antrax, please visit our website
http://www.antrax.mobi
https://www.flamesgroup.com/en/contacts








Abilis the all-in-one VOIP gateway


The ABILIS-GSM Box is an add-on for the ABILIS Router Gateway which provides an interface between the GSM and the fixed (private/public) telephone network. The GSM-BOX produces high savings and enables personnel to be mobile while keeping themselves linked to the company’s telephone network at zero tariff.






Cost Saving Effect:


Any call passing through the Abilis can be routed to the GSM networks and any call reaching the GSM-BOX from the GSM network can be routed to any destination through the Abilis network.
Currently, most of the GSM carriers offer zero or almost zero tariffes for calls within a group of SIMs. Thanks to the Abilis GSM-BOX, mobile phones can be considered as “mobile extensions” of the companies telephone system. Additionally, the ABILIS “Least Cost Router” permits to select the cheapest route for any call.

USB interface:


The GSM-BOX connects to the Abilis by means of a USB interface, thus requiring no additional telecom port in the ABILIS router and preservinging digital voice quality.

Dial Through:


Once connected to the GSM-BOX and identified as an authorised user, the caller is invited - by means of a customizable message- to dial the desired destination, which can be local or remote. Calls entering from the public network can be automatically switched to the “mobile extension” if the desk one does not answer within a given time.

Other features:


  • Two simultaneous channels
  • Works even without SIM cards !
  • High-fidelity voice
  • Call-back
  • Unlimited Least Cost Routing (LCR)
  • DTMF dial-in with voice message
  • Call data records
  • SMS to E-mail
  • SMA connector with SMA detachable antennas



OpenVox Hot-Swap VOIP GSM Gateways


PRODUCT SPORTLIGHT

OpenVox VoxStack Series GSM Gateway is an industry 1st open source asterisk-based GSM VoIP Gateway solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway.Also secondary development can be completed through AMI (Asterisk Management Interface).
  • Independent System for Each Module
  • Affordable Price with Superior Performance
  • Hot-swap Design for both Sim cards and Modules
  • Compatible with Asterisk, Elastix, 3CX, FreeSWITCH Sip Server
  • Available for OEM
  • 3-Month "No Questions Asked" Return Policy
  • Lifetime Warranty

OVERVIEW

There are two GSM Gateway models with VoxStack series GSM Gateway, the VS-GW1200-4G and VS-GW1600. The OpenVox GSM/VoIP gateways allow a SIP based IP-PBX telephone system or VoIP line to be connected directly to the GSM cellular network, The Modular Design GSM Gateways are ranging from 4 up to 20 GSM channels, developed for interconnecting a wide selection of codecs, including G.711A, G.711U, G.729A, G.723.1, G.722, G.726, GSM, to the GSM cellular networks to quickly reduce telecommunication expenses and maximize cost-savings. With the unique design of the VoxStack Gateway, it can support hot-swap for both SIM cards and GSM gateway modules. Users can simply add or remove the modules for hardware expansion or exchange. Each GSM gateway module runs an independent asterisk system inside.

The VoxStack gateway designs with a Lan Switch board that provides stackability on the hardware upgrade. It supports SMS messages sending and receiving and group sending and SMS to email. The GSM Gateways will be 100% compatible with asterisk, Elastix, trixbox, VoipSwitch, VOS, 3CX and FreeSWITCH etc. sip server

FEATURES

  • SIP (RFC3261) compliance
  • DTMF Signaling supported: RFC 2833, Inband, SIP Info
  • Simple and convenient configuration via Web GUI
  • Multiple Languages
  • Codecs supported: G.711A, G.711U, G.729A, G.723.1, G.722, G.726, GSM
  • Echo Cancellation: ITU-T G.168 LEC
  • Call Duration Limit
  • CLIR(Calling Line Identification Restriction)
  • Call Waiting
  • Call Forwarding (unconditional, no reply, busy, not reachable)
  • Quad-Band GSM 850/ 900/1800/1900 MHz & Band binding
  • SMS bulk transceiver, SMS automatically resend
  • SMS sent to Email
  • USSD transceiver
  • SMS remotely controlling gateway
  • IMEI number automatically modify
  • PIN identification
  • Open API interface(AMI)
  • Mobile number portability (MNP)
  • Support diverse SIP, IAX2 protocols (coming soon)
  • Flexible routing settings & unlimited routing rules
  • Diverse extensible applications, such as IVR,DISA
  • Support configuration file backup and upload
  • Support for custom scripts, dialplans
  • Least Cost Routing(LCR),according to Time, Port,Calling Number
  • Support static IP and DHCP
  • Support OpenVPN and PPTP (coming soon)

Models


VS-GW1202-4G - 4 Channels

VS-GW1202-4G 00.png

  • 4 GSM Channels
  • 1 SIM card per GSM channel
  • Quad-Band GSM/GPRS 850/ 900/1800/1900 MHz
  • 2 LAN ports
  • Storage temperature range: -40~125℃
  • Operation temperature range: 0~50℃
  • Operation humidity range: 10%~90% non-condensing
  • Power source: 12V DC/2A
  • Max power: 10W
  • Dimension: 15cm*19cm*4.5cm •
  • Weight: 1Kg

VS-GW1202-8G - 8 Channels


  • 8 GSM Channels
  • 1 SIM card per GSM channel
  • Quad-Band GSM/GPRS 850/ 900/1800/1900 MHz
  • 2 LAN ports
  • Storage temperature range: -40~125℃
  • Operation temperature range: 0~50℃
  • Operation humidity range: 10%~90% non-condensing
  • Power source: 12V DC/2A
  • Max power: 10W
  • Dimension: 15cm*19cm*4.5cm •
  • Weight: 1.3Kg

VS-GW1600 - 4/8/12/16/20 Channels


  • 4/8/16/20 GSM Channels
  • 1 SIM card per GSM channel
  • Quad-Band GSM/GPRS 850/ 900/1800/1900 MHz
  • 2 LAN ports
  • Storage temperature range: -40~125℃
  • Operation temperature range: 0~50℃
  • Operation humidity range: 10%~90% non-condensing
  • Power source: 1U ATX power souce,100-240V/1-2A
  • Max power: 46W
  • Dimension: 44cm × 4.5cm × 30cm
  • Weight: VS-GW1600(without GSM module):4301g, VS-GWM400G(module): 214g


Where to Buy



For More Information

Home page: http://www.openvox.cn
E-Mail: support@openvox.com.cn / sales@openvox.cn
Telephone: +86-755-82535461 / +86-755-82535095 / +86-755-82535362



beroNet BF400XGSM 2/4 GSM VoIP Gateway


PRODUCT SUMMARY

The BF400XGSM is used for small enterprises who need up to 4 concurrent GSM calls. It can be used for mobile convergence, LCR and SMS.
The berofix Gateways are compatible and tested with numerous SIP Server’s like 3CX, Asterisk, Freeswitch, FreePBX, Trixbox, Elastix, Gemeinschaft and many more

For More Information

Home page: http://www.beronet.com



Dinstar 1/4/8/16/32-port GSM/CDMA VoIP Gateways DWG2000 series with SIMBank & SIM Cloud


PRODUCT SUMMARY

The DWG2000 series SIP/GSM Gateways from Dinstar are a cost-effective SIP/GSM gateway for SOHO, SMEs, service provider and system integrators. The Dinstar GSM/VoIP gateways allow a SIP based IP PBX telephone system or VoIP line to be connected directly to the GSM cellular network, which can dramatically lower the cost of mobile calls by taking advantage of lower mobile-to-mobile tariffs. The DWG gateways are Quad-band GSM VoIP gateway that support 1-8 GSM channels / SIM cards. The DWG gateways are fully compatible with Asterisk® based IP PBXs like Elastix®, trixbox®, and AsteriskNOW®, as well as other Open Source and proprietary SIP based IP PBXs, Switch, IVR, and VoIP gateway applications.

TARGET APPLICATIONS

  • SIP/GSM gateway for SIP based IP PBX (e.g. Asterisk®) or VoIP line
  • Back up solution in case of a PSTN/VoIP failure
  • Mobile IP PBX (e.g. for trade shows, temporary offices, disaster recovery, etc.)
  • SMS gateway for batch sending/receiving text messages (e.g. appointment reminders, customer order updates, remote/field worker communications, etc.)
  • GSM callback services

TECHNICAL SUMMARY

  • Voice codecs supported include G.723.1, G.729A/B, G.711 (a-law and u-law)
  • Support for Fixed IP, DHCP, Automated NAT traversal using IETF STUN
  • Protocols supported include SIP RFC3261, TCP/UDP/IP, RTP/RTCP, HTTP, ARP/RARP, ICMP, DNS, DHCP, NTP, TELNET, PPPoE, STUN
  • Quad-Band GSM 850/900/1800/1900 MHz
  • Send/receive batch SMS up to 300 characters, support for AT commands
  • Unstructured Supplementary Services Data (USSD) support
  • Adjustable TX/RX gain: -6db~+6db
  • Offhook Auto-Dial Hotline service
  • Built-in PPPoE client for establishing DSL link connection with ISP
  • DTMF Signaling via RFC 2833 or SIP Info
  • LEDs provide operational status information
  • Support for external antenna
  • PIN support for locked SIM cards
  • Enhanced (Carrier Grade) Echo Cancellation: ITU Rec. G 168, up to 128 ms tail size
  • Adaptive Jitter Buffer, Packet loss concealment (PLC), Comfort noise generation (CNG) ,Voice activity detection (VAD)
  • HTTP Web configuration support, Auto Provisioning support
  • Certificates: CE, FCC, ROHS
  • How to set elastix/asterisk with DWG GSM/CDMA gateway, check from: http://www.dinstar.com/service/Training.aspx

MODELS

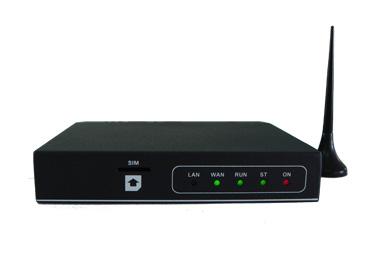

DWG2000-1G - 1 Channel VoIP GSM Gateway

  • 1 External hot-plug SIM card slot for easy access
  • LAN interface: 1 x RJ45 10/100Mbps autosensing
  • WAN interface: 1 x RJ45 10/100Mbps autosensing
  • Weight: Gateway only - 185g, Package as shipped - 0.5Kg
  • Dimensions (L x W x H): 112mm x 76mm x 24mm
  • Universal Switching Power Adaptor: Input: 100-240VAC; 50-60 Hz, Output: 12VDC, 1000mA
  • Power Consumption: 5W

DWG200E-8G - 4/8 Channel VoIP GSM Gateway

  • Rack mountable 1U chassis
  • 4 hot-plug SIM card slots with external cover for easy access
  • LAN interface: 3 x RJ45 10/100Mbps autosensing
  • WAN interface: 1 x RJ45 10/100Mbps autosensing
  • Weight: Gateway only - 4Kg, Package as shipped 4.85Kg
  • Dimensions (W x D x H): 440mm x 305mm x 44mm
  • Power: 100-240VAC; 50-60 Hz
  • Power Consumption: 30W

DWG2000F-16G - 8/16 Channel VoIP GSM Gateway

  • Rack mountable 1U chassis
  • 8 hot-plug SIM card slots with external cover for easy access
  • LAN interface: 3 x RJ45 10/100Mbps autosensing
  • WAN interface: 1 x RJ45 10/100Mbps autosensing
  • Weight: Gateway only - 4.25Kg, Package as shipped 5.1Kg
  • Dimensions (W x D x H): 440mm x 305mm x 44mm
  • Power: 100-240VAC; 50-60 Hz
  • Power Consumption: 30W

Where to Buy

Listed alphabetically in country/region (then company name) order:


For More Information

Home page: http://www.dinstar.com
E-Mail: support@dinstar.com / sales@dinstar.com
Telephone: +86 755 2645 6664




ELGATO Communications


VOIP GSM gateway ELGATO K32 (8-32 GSM-channels, step 8)


VoIP GSM gateway ELGATO K32 (8-32 GSM-channels, step 8)

Technical characteristics
- chassis size 4U, 19"
- power 220 V, 50 Hz

Features
- VoIP SIP-protocol support
- h.323 support via external converter connected via PRI
- 1 card per channel
- support of Sim–Server ELGATO ( capability of using Sim–card remotely through TCP/IP)
- IMEI-related functions
- remotely controlled via SSH
- SMS mass sending capability (as server)

Antennas
- vertical antenna (for installing on the surface)
- or directional antenna YAGI + combiner of 8 GSM channels with 10m feeder (for distribution of load on different base station of Mobile Network Operator).
It is recommended for 16/24/32-channel gateways.

VOIP GSM gateway ELGATO G20 (4-20 GSM-channels)


VoIP GSM gateway ELGATO G20 (4-20 GSM-channels, step 4)

Technical characteristics
- chassis size 1U, 19" rack-mountable metal box with passive ventilation, 5 slots for radio-channels extension board (4 or 8 channel boards)
- External power unit 12–19 V, DC, 4.5 А.

Features
- VoIP SIP-protocol support
- h.323 support via external PRI-converter
- 1 SIM per channel
- or unlimited SIM per channel support via SIM–Server/SIM-Bank200 ELGATO (capability of using SIM–cards remotely through TCP/IP)
- IMEI-related functions
- remotely controlled via SSH
- SMS mass sending capability (as server)

Antennas
- vertical antenna (for installing on the surface)
- or directional antenna YAGI + combiner of 8 GSM channels with 10m feeder (for distribution of load on different base station of Mobile Network Operator).
It is recommended for over 16-channel gateways.



VoIP GSM gateway ELGATO G8 (4-8 GSM-channels)


VoIP GSM gateway ELGATO G8 (4-8 GSM-channels, step 4)

Technical characteristics
- External power unit 12–19 V, DC, 4.5 А
- Dimensions 209 x 40 x 118 mm

Features
- VoIP SIP-protocol support
- h.323 support via external PRI-converter
- 1 SIM per channel
- or unlimited SIM per channel support via SIM–Server/SIM-Bank200 ELGATO (capability of using SIM–cards remotely through TCP/IP)
- IMEI-related functions
- remotely controlled via SSH
- SMS mass sending capability (as server)

Antennas
- vertical antenna (for installing on the surface)
- or directional antenna YAGI + combiner of 8 GSM channels with 10m feeder (for distribution of load on different base station of Mobile Network Operator).

FOR MORE INFORMATION:
www.elgato.com.ua
or by mail to sale@ltd.com.ua


PCI VoIP GSM card for Linux/Asterisk/Windows 4 and 8 GSM-channels, SMS support


PCI VoIP GSM card for Linux/Asterisk/Windows 4 and 8 GSM-channels, SMS-support

Features

GSM-card provides communication between your application under OS Linux and mobile operator GSM-network.

Sphere of application:
- GSM VoIP gateway (Elgato Linux software or Asterisk)
- SMS-gateway (under Elgato Linux software (direct AT-command support rfc2217 via TCP-ports) or under Asterisk (via SQL))

Technical details:
- 4/8 GSM-modules (850/900/1800/1900 Mhz), 3G
- 1 SIM-card per channel
- DTMF receiver
- Digital sound processing (with possibility of hardware compression: G.729, G.726, G.723)
- Light-emitting diode indication of channels work


Bundling:
- GSM-card for 4/8-channels
- 4/8 vertical antennas


FOR MORE INFORMATION:
www.elgato.com.ua
or by mail to sale@ltd.com.ua



UMTS(3G) VoIP card for Linux/Asterisk/Windows 4 and 8 GSM-channels, SMS support


UMTS(3G) VoIP card for Linux/Asterisk/Windows 4 and 8 GSM-channels, SMS-support

Features

UMTS(3G)-card provides communication between your application and mobile operator GSM-network.

Sphere of application:
- UMTS(3G)/GSM VoIP gateway (Elgato Linux software or Asterisk)
- SMS-gateway (under Elgato Linux software (direct AT-command support rfc2217 via TCP-ports) or under Asterisk (via SQL))

Technical details:
- 4/8 WCDMA(3G)-modules with GSM support
- 1 SIM-card per channel
- DTMF receiver
- Digital sound processing (with possibility of hardware compression: G.729, G.726, G.723)
- Light-emitting diode indication of channels work


Bundling:
- UMTS(3G)-card for 4/8-channels
- 4/8 vertical antennas


FOR MORE INFORMATION:
www.elgato.com.ua
or by mail to sale@ltd.com.ua

SIM-Server ELGATO


SIM-Server

System Sim-Server is a complex of devices, aimed at a centralized storage of Sim-cards or other types of smart-cards and their further usage in such deviсes as GSM-gateway, tuner of satellite television or other devices, which use smart-cards in their work. Sim-server is a flexible system for control and inventory of sim-cards, which are used in your applications. There exist wide opportunities of adjusting and configuring the work of the system with the help of a comfortable web-interface.

Sim-server complex includes the following equipment: Sim-bank, Sim-box, Sim-server, GSM-gateway (compatible with the system Sim-server Elgato).

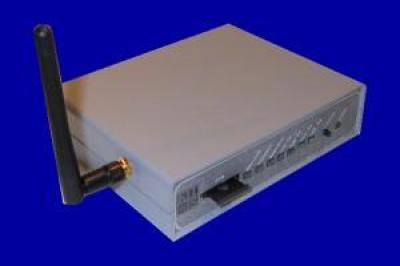

Sim-box
Sim-box – device, emulating the work of sim-cards. Sim-box receives protocol packet TCP/IP from sim-server and transmits this data via interface ISO7816 to communication terminal (for example, to GSM-gateway). For compatibility with devices of other manufacturers, sim-box is equipped by loop-back with small boards of sim-emulators. Main characteristics:
-Microcontroller AT91RM9200 on the base ARM9 by Atmel, ОS Linux
-Processor FPGA Cyclone-2 by Altera
-Connectors RJ-45 for device connection to Ethernet and RS-232
-Connector USB-B for adjustment and configuring of the device
-Two loop-backs with eight small boards of sim-emulators (total: 16 emulators) to any device, supporting Sim-cards
-Light indication for displaying the status of the device and channels of sim-emulators.

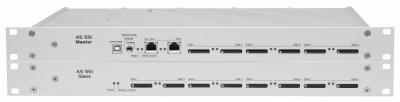

Sim-bank
Sim-bank – is a powerful small-size hardware platform, allowing to store up to 200(!) sim-cards, to process them and transmit the data of these sim-cards through TCP/IP. Device sim-bank is manufactured in a compact housing of the industrial computer, standard 1U. Main characteristics:
-Industrial 1U chassis under control of ОS Linux
-Sim-holders board for 200 sim-cards
-Two powerful processors Cyclone-2 by Altera
-Connectors RJ-45 to work with Ethernet
-Connector RS-232 (Console for primary adjustment and configuring of the device)
-Informational light indication for the work of device and sim-cards.

Sim-Server
Sim-server – a PC with a special server software for a centralized control and administration of the system sim-server and commutation of protocol packet between sim-cards in sim-bank and communication terminals – compatible with the system sim-server by GSM-gateways El’gato or sim-box (another words, server installs channels of communication through TCP/IP between a sim-card in sim-bank and GSM-module in GSM-gateway or another application). Functional peculiarities of the server:
-Supports up to 99 sim-banks! (i.e.: Sim-server can support the total work up to: 99 х 200 = 19 800 sim-cards)
-Database for keeping information about present (in sim-bank) sim- cards
-Database for inventory of devices working in the system (sim-box, GSM-gateways)
-Storing an inventory information about the work of these devices (automatic periodic calculation of communication cost, control of sim-cards account replenishment etc.)
-Dynamic switching of channels sim-card– GSM-module
-Configurable algorithms (techniques) of channels’ overcommutation sim-card – GSM-module (including the so-called algorithm of “sim-card motion simulation”)
-Web-interface for adjustment of all parameters and administration the system from any corner of the world.



SIM-Bank ELGATO


SIM-Bank
Sim-bank – is a powerful small-size hardware platform, allowing to store up to 200(!) SIM-cards, to process them and transmit the data of these SIM-cards through TCP/IP. Device SIM-Bank is manufactured in a compact housing of the industrial computer, standard 1U. Main characteristics:
-Industrial 1U chassis under control of ОS Linux
-Sim-holders board for 200 SIM-cards
-Two powerful processors Cyclone-2 by Altera
-Connectors RJ-45 to work with Ethernet
-Connector RS-232 (Console for primary adjustment and configuring of the device)
-Informational light indication for the work of device and sim-cards.


FOR MORE INFORMATION:
www.elgato.com.ua
or by mail to sale@ltd.com.ua


GEMPRO

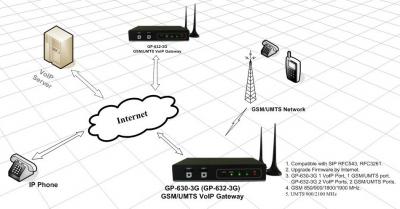

GEMPRO GP-630-3G/GP-632-3G 3G/ GSM VoIP Gateway


GP-630-3G/ GP-632-3G is the 3G GSM VoIP Gateway. It connects 3G/GSM Network with VoIP Network directly, and has function of two-way communicating by 3G/GSM to VoIP or VoIP to 3G/GSM.





Feature:

1.Compatible with SIP RFC543, RFC3261.
2.Compatible with Asterisk.
3.Call termination (VoIP to 3G/GSM and 3G/GSM to VoIP).
4.High-quality voice.
5.Support UPLINK (GSM to VoIP), DOWNLINK (VoIP to GSM) Routing..
6.Upgrade Firmware by Internet.
7.Web browser for status checking and settings.
8.Support SIP Proxy, or point to point application.
9.GP-630 with 1 port; GP-632 with 2 ports.
10.GP-630/GP-632: GSM 850/900/1800/1900 MHz.
GP-630-3G/GP-632-3G :UMTS 2100/900MHz, GSM 850/900/1800/1900 MHz.
11.Support 3CX, Asterisk.

GP-710/712/630/632/630-3G/632-3G work with 3CX phone system Video Configuration Guide:
http://www.youtube.com/watch?v=6W6i_OLozDs




Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22298778
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw

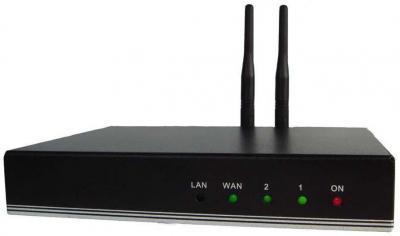

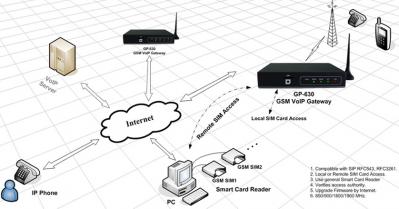

GEMPRO GP-630/GP-632 GSM SIP VoIP Gateway For Remote SIM Card Access



GP-630 & GP-632
are GSM VoIP Gateway. It connects GSM Network with VoIP Network directly, and has function of two-way
communicating by GSM to VoIP or VoIP to GSM. GP-63x provides local and remote access function to
register to GSM system provider: In remote access function, there are two ways to register. First way,
insert SIM Card into general PC/SC Smart Card Reader, plug Smart Card Reader into PC’s USB port and
connect to remote GP-63x by Internet. Another way is that you can use GP-060 and Android Smartphone
to remote access to GP-63x via Wi-Fi Network and achieve mobilization. Both ways are not only convenient
for remote management, but also saves expensive international roaming bills.





Feature:

1. Two-way communication by VoIP to GSM or GSM to VoIP
2. Compatible with SIP RFC 543,RFC 3261
3. Local & Remote SIM Card Access

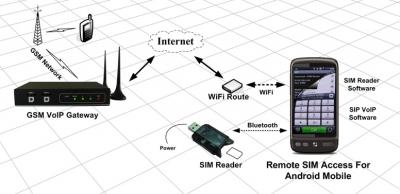

4. Use general PC/SC smart Card Reader, or GP-060 (with Android Smartphone)
to remote access to GP-63x.
5. Save telephone and international roaming bills
6. IP or SIM Card ID verifies Access authority
7. Support UPLINK (GSM to VoIP),DOWNLINK (VoIP to GSM)Routing
8. Support VOICE REPORT IP function.
9. Upgrade Firmware by Internet
10. Offer Website for inquire or setting
11. Support SIP Proxy, or point to point application
12. Fix or Free dialing function
13. Dialout Number from IP phone Call Number
14. 850/900/1800/1900 MHz
15. GP-632 2 Voice Channel, 2 GSM Modules, 2 SIM
16.Support 3CX, Asterisk.

GP-710/712/630/632/630-3G/632-3G work with 3CX phone system Video Configuration Guide:
http://www.youtube.com/watch?v=6W6i_OLozDs




Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22298778
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw

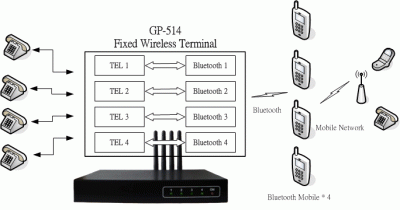

GP-514 4 Ports Fixed Wireless Terminal for all Cellular systems


GP-514 is a 4 ports Fixed Wireless Terminal.
It uses Bluetooth technology to connect Bluetooth mobile phone with common telephone or PBX,
and makes PBX immediately able to dial out and answer mobile call. User can not only get far away
from the electromagnetic wave, but also save expenses without changing their habits of using the table phone.



Feature:

1. Makes PBX able to direclty dial out and answer mobile call.
2. Use Bluetooth to pair mobile phone; it has nothing to do with telecommunication provider or frequency.
3. Just using table phone to dial to keep users far away from the electromagnetic wave.
4. Digital volume and gain adjustment.
5. Transmit high quality voice.
6. Compatible with GSM/CDMA/3G/3.5G/WCDMA Bluetooth mobile phone.
7. Each channel has 30 sets of dial plan, and can add or remove digits automatically. There is no need for users to change their dialing habit.
8. 30 sets phone book Speed Dial & memorize.



Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22298778
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw






GP-710/GP-712 Bluetooth Mobile SIP VoIP Gateway For Global Systems!!

The GP-71x is a revolutionary and innovative product. It Integrates VoIP and 2.4G Bluetooth
technology in a device. This makes the connection free from the limitation of frequency and
telecommunication provider to become more convenient and widely use. Therefore, it can
also be widely used as GSM/CDMA/WCDMA/3G/3.5G VoIP Gateway.




Feature:

1. Use Bluetooth Technology, GSM.WCDMA VoIP don't care Bands & Systems.
2. VoIP and Bluetooth Mobile fully integration.
3. Compatible with SIP RFC543, RFC3261.
4. Support UPLINK(BT to VoIP) , DOWNLINK Routining(VoIP to BT).
5. Support Voice report and Setting IP function
6. Offered Web Site for inquire or setting.
7. Support SIP PROXY, or point to point application.
8. Offered one stage ,two stage free dialing and call transfer function.
9. Bluetooth with auto pairing and auto searching function.
10.QoS and Digital Transmit.
11.Could use with GSM/CDMA/3G/3.5G various Bluetooth mobile phone.
12.GP-712 with 2 SIP 2 Bluetooh
13.Support 3CX, Asterisk.

GP-710/712/630/632/630-3G/632-3G work with 3CX phone system Video Configuration Guide:
http://www.youtube.com/watch?v=6W6i_OLozDs

Application Diagram:


Specification:
Web Browser
IVR Interface
Uplink Route Setting (BT to VoIP)
Downlink Route Setting (VoIP to BT)

Network Protocol:
SIP v1 (RFC2543), v2(RFC3261)
IP/TCP/UDP/RTP/RTCP
IP/ICMP/ARP/RARP/SNTP
DHCP Client/ PPPoE Client
DNS Client

NAT Traversal:
STUN

Voice Quality:
VAD: Voice activity detection
CNG: Comfortable noise generator
LEC: Line echo canceller
Packet Loss Compensation
Adaptive Jitter Buffer

Bluetooth:
Bluetooth Specification V2.
Carrier Frequency 2400MHz to 2483.5MHz( USA , Spain ,France)
Modulation Method GFSK,1Mbps,0.5BT Gaussian
Output level, class 2
10 meters working range

Package
Bluetooth VoIP Gateway:147mm X 108mm X 27mm
2.4GHz Antenna
Power Supply:Input 100-240VAC 50-60Hz Output 12VDC 1000mA
1.8m Network Cable


Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22298778
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw




COST-SAVING PROGRAM

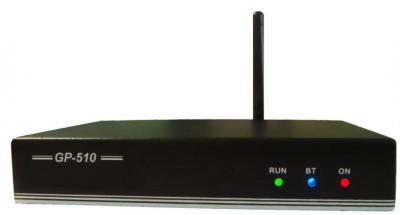

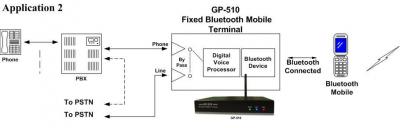

Gempro GP-510 Fixed Wireless (PBX) Bluetooth Mobile Terminal for GSM/CDMA/WCDMA & SKYPE

GP-510 uses Bluetooth technology to connect Bluetooth mobile phone with common telephone or PBX.
It makes PBX immediately own a trunk which has mobile routing. User can not only get far away from the
electromagnetic wave, but also save expenses without changing their habits of using the table phone.


Feature

1.Using Bluetooth to make PBX immediately own a trunk which has mobile routing.
2.GP-510 directly pairs mobile phone via Bluetooth; it has nothing to do with telecommunication provider or frequency.
3.Just using table phone to dial to keep users far away from the electromagnetic wave.
4.Speed Dial Function.
5.The calling will be transferred to PSTN automatically when power failure, Bluetooth mobile phone is unpaired or out of range.
6.Digital volume and gain adjustment.
7.Local code setting and code add automatically. There is no need for users to change their dialing habit.
8.Bluetooth pairing and searching automatically.
9.Transmit high quality voice.
10.Compatible with GSM/CDMA/3G/3.5G/WCDMA Bluetooth mobile phone.
11.Using Bluetooth technology, so the connection doesn’t need any wires.
12.Phone (PBX) can dial out and answer Skype. (Dongle & API have to support VoIP)
13.100 sets phone book Speed Dial & memorize.
14.No need to change the dialing habit to Skype out.


Specification
Metering Signals: 12KHz, 16KHz,Polarity Reversal
A/D ,D/A : G.711:A-law or u-law PCM Mode
DTMF : Detect & Generator
Caller ID Format: DTMF
Tone Programmable: DIAL Tone & Busy Tone
Power : AC110/220V 50/60HZ

Bluetooth
Bluetooth Specification V2.
Carrier Frequency 2400MHz to 2483.5MHz
Modulation Method GFSK,1Mbps,0.5BT Gaussian
Output level, class 2
10 meters working range

PACKAGE
Bluetooth VoIP Gateway:147mm X 108mm X 27mm
2.4GHz Antenna
Wire*2
Power Supply:Input 100-240VAC 50-60Hz Output 12VDC 1000mA

The attachment id given is not valid.



Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22298778
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw


GP-530 Bluetooth Wireless Fixed Terminal

For 3G/GSM/Skype PSTN/Tel/PBX Trunk



GP-530 uses Bluetooth technology to connect Bluetooth mobile phone with common telephone or PBX.
Users can not only get far away from the electromagnetic wave, but also save expenses without changing
their habit of using the table phone. Meanwhile, GP-530 has the functions to connect Bluetooth mobile
phone with PSTN. That is, incoming PSTN calls can be forwarded via Bluetooth mobile phone. Incoming
mobile calls can also be forwarded via PSTN or picked up by table phone.



Feature:

1.The database can be set to select the best trunk to dial out from Bluetooth mobile or PSTN automatically.
2.GP-530 directly pairs mobile phone via Bluetooth. It has nothing to do with telecommunication provider or frequency.
3.Just using table phone to dial to keep users far away from the electromagnetic wave.
4.Speed Dial Function.
5.The calling will be transferred to PSTN automatically when power failure, Bluetooth mobile phone is unpaired or out of range.
6.Digital volume and gain adjustment.
7.Local code setting and code add automatically. There is no need for users to change their dialing habit.
8.Bluetooth pairing and searching automatically.
9.Transmit high quality voice.
10.Compatible with GSM/CDMA/3G/3.5G/WCDMA Bluetooth mobile phone.
11.Using Bluetooth technology, so the connection doesn’t need any wires.
12.Phone (PBX) can dial out and answer Skype. (Dongle & API have to support VoIP)
13.100 sets phone book Speed Dial & memorize.
14.No need to change the dialing habit to Skype out.
15.With fixed or free dial function in PSTN forward to Mobile System.
16.With fixed or free dial function in Mobile forward to PSTN.
17.The number of rings from 0-9 can be set to forward by Mobile System automatically if the incoming PSTN call is not answered.
18.The number of rings from 0-9 can be set to forward by PSTN automatically if the incoming Mobile call is not answered.
19.Dial out from PHONE side can be selected automatically to dial from PSTN or Mobile system by the setting of Database. 30 sets of Route Databases can be set up.
20.With dial limited function to avoid device seizure in PSTN to Mobile System.


Gempro Technology Inc.
TEL:886-4-22292128
FAX:886-4-22298778
E-mail:info@gempro.com.tw
webs: http://www.gempro.com.tw



saving cost project Gempro GP-712 WCDMA/UMTS/GSM VoIP Gateway (2 voice channels) for all systems

The GP-712 is a revolutionary and innovative product. It Integrates VoIP and 2.4G Bluetooth technology
in a device. This makes the connection free from the limitation of frequency and telecommunication provider
to become more convenient and widely use. Therefore, it can also be widely used as GSM/CDMA/WCDMA/3G/3.5G VoIP Gateway.

Feature
1.VoIP and Bluetooth Mobile full integration.
2.Compatible with SIP RFC543, RFC3261.
3.Support UPLINK (BT to VoIP), DOWNLINK (VoIP to BT) Routing.
4.Support VOICE REPORT IP function.
5.Integrated web server for status and settings.
6.Support SIP Proxy, or point to point application.
7.Option of one stage, fix number or free dial.
8.Bluetooth with auto pairing and auto searching function.
9.QoS and Digital Transmit.
10.Could use with GSM/CDMA/3G/UMTS various Bluetooth mobile phones.
11.2 Bluetooth and 2 VoIP channels.
12.Support 3CX, Asterisk.


GP-710/712/630/632/630-3G/632-3G work with 3CX phone system Video Configuration Guide:
http://www.youtube.com/watch?v=6W6i_OLozDs

Specification

VoIP
Web Browser
IVR Interface
Uplink Route Setting (BT to VoIP) 
Downlink Route Setting (VoIP to BT)


Network Protocol
SIP v1 (RFC2543), v2(RFC3261)
IP/TCP/UDP/RTP/RTCP
IP/ICMP/ARP/RARP/SNTP
DHCP Client/ PPPoE Client
DNS Client

Codec
GSM
G.711: 64k bit/s (PCM)
G.723.1: 6.3k / 5.3k bit/s
G.726: 16k / 24k / 32k / 40k bit/s (ADPCM)
G.729A: 8k bit/s (CS-ACELP)
G.729B: adds VAD & CNG to G.729

NAT Traversal
STUN

Voice Quality
VAD: Voice activity detection
CNG: Comfortable noise generator
LEC: Line echo canceller
Packet Loss Compensation
Adaptive Jitter Buffer

Bluetooth
Bluetooth Specification V2.
Carrier Frequency 2400MHz to 2483.5MHz
Modulation Method GFSK,1Mbps,0.5BT Gaussian
Output level, class 2
10 meters working range


Gempro Technology Inc.
6F., No.314, Sec. 3, Fusing Rd., South District, Taichung City 402,Taiwan (R.O.C.)
TEL:886-4-22292128
FAX:886-4-22290413
E-mail: info@gempro.com.tw
webs: http://www.gempro.com.tw


GP-060 SIM Card Reader for Android

GP-060 is Wireless SIM Card Reader. It can directly use Android Smartphone to register SIM Card
to remote GP-63x GSM VoIP Gateway via Wi-Fi Network. Since it doesn’t need PC to complete register,
it can meet the purpose of mobilization. With SIP VoIP software in Smartphone, it connects VoIP
Network and GSM Network to dial or answer GSM calls via the GP-63x Gateway.




Feature
1.Don’t need PC, and could use Smartphone Remote SIM Access directly.
2.Don’t need to get ROOT Access and don’t change Smartphone firmware.
3.Using Bluetooth interface.
4.Using with our GSM Gateway products only.

SpecificationSpecification
Support 5V,3.3V SIM Card
1 Status LED
USB Port (Power Only)


Smartphone requirements
Android 2.1 or higher
Bluetooth V2.0
Wi-Fi function
Install SIP VoIP software

Bluetooth

Bluetooth Specification V2
Carrier Frequency 2400MHz to 2483.5MHz
Modulation Method GFSK,1Mbps,0.5BT Gaussian
Output level, class 2
10 meters working range


Gempro Technology Inc.
6F., No.314, Sec. 3, Fusing Rd., South District, Taichung City 402,Taiwan (R.O.C.)
TEL:886-4-22292128
FAX:886-4-22290413
E-mail: info@gempro.com.tw
webs: http://www.gempro.com.tw





-==-

Hypermedia Systems Ltd.




VoIP GSM Gateway

VoIP GSM Gateway – for Call Termination 72 GSM ports / 288 SIMs
This VoIP GSM Gateway introduces new techniques for reducing telephony call costs. It provides superior voice technology for connecting IP-based telephone systems, soft switches, and IP-PBXs to the GSM networks. This professional VoIP GSM Gateway connects directly to the IP-based systems using the existing IP/VoIP networks and cost-effectively routes incoming and outgoing fixed line, PSTN, cellular and VoIP calls – all in one box.



Features & Highlights:

• Ideal choice for long distance call / traffic termination operators, corporate and ISP customers, who wish to bridge traffic between VoIP or PRI and the GSM network.
• Compliance to all the relevant ITU-T recommendations.
• Modular, 6U high, with built-in antenna combiner per slot.
• 36 months warranty.
• Comply with Cisco, Quintum, Asterisk and others.
• VoIP – optional (Embedded VoIP)
• Web management and support - remote monitoring and configuration through TCP/IP access.
• The interface of the network side is E1/T1 Digital Interface with PRI ISDN signaling.
• The interface on the user side is up to 30 +2 x GSM channels (128 SIMs per E1 - 4 SIM per channel).
• All 30+2 GSM channels are dual band - GSM 900 MHz / 1800 MHz or GSM 850 MHz / 1900 MHz with built in auto-selection capability.
• Each GSM channel is individually programmable to work with any of the 4 SIMs, according to the user programmed time-of-day schedule.
• Pre-Paid Real-Time Usage Counter with minute roundability option.
• Unique caller ID blocking feature (if network allows)
• Echo cancellation.
• Accurate answer supervision and disconnect supervision.
• Reduces call costs - resulting from complete GSM to E1 PRI ISDN integration.
• Advanced Least Cost Routing (LCR) & Routing Groups
• Fast and easy installation and maintenance.


Contact: Contact Hypermedia
E-mail: sales@hyperms.com
Website: www.hyperms.com

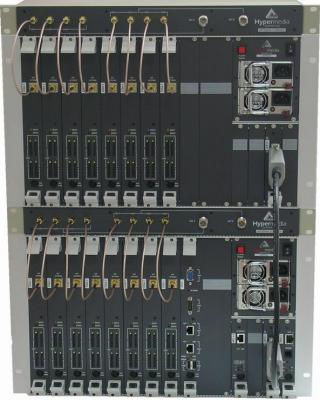

VoIP GSM Gateway - HG-4000


Hypermedia VoIP GSM Gateway bridges between the VoIP network (or IP-based systems) and the cellular GSM networks for reducing telephone call costs. It enables inbound and outbound VoIP and Cellular calls - all in one compact box!
The VoIP GSM Gateway is a complementary product to IP based equipments and supports up to 72 GSM ports. By using HG-4000 there is no need for any external VoIP Gateways such as Cisco or Quintum.



Contact: Contact Hypermedia
E-mail: sales@hyperms.com
Website: www.hyperms.com

NEW: HyperTam Traffic Analyzer and Monitoring

A cloud-based SaaS for GSM Gateway monitoring, which provides HG-4000 owners and users with real-time information about the performance of their systems.
Don't miss the opportunity for a 30 day free trial. Pre-register now!!


HyperGuard VCG+ Extend your SIM cards' life

An advanced built in application for generating several types of cellular traffic:
• GSM calls, inbound and outbound
• SMS messages, incoming and outgoing
• Calls forwarding, to voice mailboxes, etc.
• Pre-set scenarios of Calls and SMS

Currently supported by VCG+ are all HG3xxx,HG4xxx and HG7xxx systems which include a PC board

NEW: Economical 320 SIMs Gateways 320 SIM-based box for SMS/ VoIP Best performance ever!


Complete GSM/SMS device with three times more SIM storagecapacity and SIM Management features in one box.
Easy to deploy and quick to implement, this is the perfect all-in-one product solution which allows you to solve all your telephony needs with NO NEED for an additional SIM server!

• Enables to maximize SIM price plans usage and special dynamic tariffs.
• 10 SIM cards per port with individual settings that can be configured for EVERY SINGLE SIM card!

Ready to order? Be among the first 20 buyers and Get SIMGuard free


VoIP GSM Gateway - Fast Start Call Termination Kit


Meet with us at WWC 2013 Check our new Termination Systems!

See our Call Termination System video

The VoIP GSM Gateway - HG-4000 is the ideal solution for anyone who would like to start a new termination business with a minimum investment: just plug it to your broadband carrier, and start selling traffic!
The HG-4000 series enables inbound and outbound VoIP and Cellular calls - all in one compact box.



VoIP GSM Gateway HG-4000 comes complete with:

• The VoIP Gateway and GSM ports (Embedded VoIP, no need for any external VoIP Gateway).
• 16 simultaneous bi-directional VoIP to GSM connections.
• 64 SIM cards – MultiSIM rotation.
• Upgradeable up to 72 GSM Ports / 288 SIMs.
• GSM worldwide use (850/1900 or 900/1800).
• Advanced LCR & Routing Groups.
• IP address & DDI pattern restrictions.
• Remote Pre-Paid SIM recharge.
• Integrated antenna splitter.
• Redundant Power Supply Optional.
• WEB management and control.
• Quick Installation.

Contact: Contact Hypermedia
E-mail: sales@hyperms.com
Website: www.hyperms.com

Hypermedia Systems is now introducing the opportunity to upgrade its VoIP GSM Gateway HG-4000 to include SMS server for offering wholesale SMS termination service. The SMS server comes with an easy-to-use API / SDK which enables third-party applications to send and receive SMS messages.

VoIP GSM Gateway - HG-3000


The VoIP GSM Gateway- HG-3000 series comes with 8 GSM VoIP ports, connecting IP-based systems with GSM networks. The VoIP GSM Gateway is designed to provide a cost-effective alternative for fixed-to-mobile or mobile-to-fixed telephone calls for small and medium businesses.



VoIP GSM Gateway main features:

• 4 - 8 GSM / VoIP ports
• Up to 32 SIM cards
• Advanced LCR and routing groups
• IP address and DDI pattern restrictions
• Remote pre-paid SIM recharge
• Integrated antenna splitter
• GSM worldwide use
• WEB management and control

Contact: Contact Hypermedia
E-mail: sales@hyperms.com
Website: www.hyperms.com




Hypermedia's range of VoIP GSM Gateways provide:

Key Advantages:

• Fast return on investment (ROI)
• Fast installation and operation
• Flexible and scalable solutions
• Terminate GSM traffic – from VoIP to GSM, 3G/UMTS, and CDMA
• Terminate landline – from VoIP to PSTN, Analog and E1/T1 PRI
• Terminate "mixed" traffic – terminate GSM and landline calls in one box
• Remote web-based management and control
• Online technical support and training
• One point of contact for customer service
• Reliable and proven technology
• Professional carrier-grade gateways

Cost-Saving Advantages:

• Advanced LCR and routing groups
• IP address and DDI pattern restrictions
• 36 months warranty

Other related products:
3G VoIP Gateway
3G UMTS Analog Gateway
GSM Analog Gateway

FOR MORE INFORMATION:
Contact: Contact Hypermedia
E-mail: sales@hyperms.com
Website: www.hyperms.com


ICS France




ISDN PRI/SS7/VoIP/GSM channel bank, all in one designed

PowerGate GSM Channel Bank

ICS PowerGate Series Digital PRI ISDN Cellular VoIP Gateway comes with 2 ISDN PRI interface(In and Stack up), 16 GSM channels and 16 VoIP Channels. As ICS PowerGate cellular gateway has been enhanced with a VoIP interface, there is no need to install an external VoIP gateway.

PowerGate Series Digital Cellular gateway is easy to used for convert the full capacity of PRI ISDN directly into Cellular networks. The ICS PowerGate Series cellular gateway enables inbound and outbound traffic for both VoIP, PSTN, and GSM/CDMA calls. All in one designed, ideal gateway for terminating calls providing professional quality, stability and reliability.

IP<->GSM application with ICS PowerGate

ICS Universal Analog Cellular Gateway

ICS TopGSM Series Analog GSM Gateway comes with 1/4/8 ports and provides a cost- effective alternative for fixed-to-mobile telephone calls. They are compatible with any PBX system or analog phones.
opGSM Series GSM analog gateway is used for connecting with the FXO ports of an analog VoIP gateway. With the use of the TopGSM gateway, inbound VoIP calls destined for GSM handsets and calls originating from GSM handsets can be sent to or received from the GSM handsets by the VoIP gateway without having to route the calls through the local PSTN thus eliminating the cost of paying the local wireline telephone exchange for the unnecessary switching.
Up to 4 SIM Cards per GSM Channel
The 4 SIM cards feature of the TopGSM gateways is important in markets where there are more than one GSM operator providing GSM services. A common practice of a GSM operator is to offer special rate concession to its subscribers for calling Mobile Numbers that are within the same network of the GSM operator in various forms such as: one flat rate for calling any Mobile Number within the GSM network; or special discounted rates for calling Mobile Numbers that are within the GSM network.

Each TopGSM & TopCDMA Channel contains 4 SIM cards holders. An intelligent SIM card can be automatically switched according to 4 conditions:

Minute parameter --- You can change counting of outgoing calls.
Count of minutes: Gateway will counter time of outgoing calls.
Count of calls: Gateway will counter number of outgoing calls.
By time --- SIM cards will be switched according to standby time
Time of use SIM ---- Interval of using selected SIM card.
Random --- SIM cards will be switched at random time.

In this interval hours: minutes will be randomly switched SIM card. (SIM card will be switched after proceeding call hang-up).

ICS France
149 Avenue du Maine, 75014 Paris France
Tel: +33 1 77 69 58 67 Fax: +33 1 56 61 28 33
E-mail: sales@icstel.com Website: www.icstel.com



iQsim













MENU SIM Server WEB.jpg

iQsim's flagship product, IRON Suite, is a redundant and scalable software architecture. Especially designed to manage easily a large number of SIM cards with its intuitive and powerful interface, this solution provides you a lot of benefits connecting virtually devices separated physically.

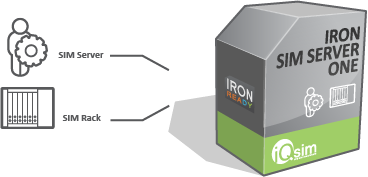

ISSO Symboles.png

IRON SIM Server One; All-in-One SIM Server with SIM Storage


Key benefits:
    • Ready-to-Go SIM Server (no additional server required)
    • IRON Technology: Bonus/Promotion, Credit Synchronization
    • Integrated Capacity of 416 SIMs cards
    • Protect your Investment: Secure & Scalable product
Main features:
SIM STORAGE
    • Hot-swappable compact-PCI board
    • 32 SIM cards per board
    • Up to 416 SIMs
SIM CONTROL
    • Easy and powerful web based management
    • Multi-criteria allocation rules by SIM card plans
    • SIM travel simulation and IMEI control by SLID
    • SIM Cards Recharge (USSD, SMS, Transfer, IVR)
    • SIM Cards Credit Synchronization
    • Advanced Price Plan : SIM Daily, Weekly and Monthly control
    • Scalable solution for 4000 SIMs and more
    • Prepaid SIM card management
SIM PROTECTION (HBS)
    • Random/Unpredictable Simulation
    • SMS/Call/Voice Box query management
    • SIM Manager web interface
    • Integrated with SIM Manager price plans
    • Web based dashboard
"For more information, please refer to our website: http://www.iqsim.com/iron_sim_server_one.htm
or contact us at info@iqsim.com"




IRON SIM Manager for SIM Control & Protection


Key benefits:
SIM CONTROL
    • Always use the right SIM at the right time

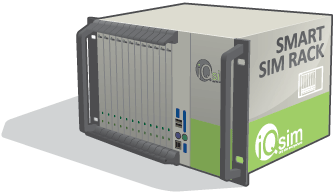

    • Up to 416 SIM cards per SIM Rack
    • Highly scalable architecture : Up to 50000 SIM Cards
    • Specifically designed for multi-operator and cross country deployment
    • Maximize SIM price plan usage
SIM PROTECTION
    • Random/Unpredictable simulation
    • SMS/Text, Call and Voice Box queries
    • Web dashboard to manage events
    • Configuration integrated with IRON Suite
Main features:
SIM CONTROL
    • Easy and powerful web based management
    • Multi-criteria allocation rules by SIM card group
    • SIM travel simulation
    • Dynamic SIM swap
    • Prepaid SIM card management
SIM PROTECTION
    • Text/SMS : Incoming/Outgoing/internal, User-defined destination numbers, User-defined SMS messages
    • Calls : Incoming/Outgoing/Internal, User-defined destination numbers
    • Voice Box Management : User-defines DTMF based scenario to query SIM voice box
"For more information, please refer to our website: http://www.iqsim.com/iron_sim_manager.htm
or contact us at info@iqsim.com"




IRON Call Manager for Call Control


Key benefits:
    • Call routing with the most appropriate SIM
    • Real-time GSM port supervision
    • Centralized CDRs
    • GSM gateway configuration time reduced by 70%
    • Call processing time reduction (PDD)
Main features:
    • Real time GSM ports status visibility
    • Dynamic and auto-learning central blacklisting
    • Dynamic provider call repartition
    • White and grey route management
    • Mobile portability number management
"For more information, please refer to our website: http://www.iqsim.com/iron_call_manager.htm
or contact us at info@iqsim.com"




MENU SIM Racks WEB.jpg

SIM Racks are especially designed for SIM cards storage. Whether you work in QoS, M2M or Mobile Termination, we have the product you are looking for!





Smart SIM Rack for Mobile QoS Testing


Key benefits:
    • XML API for remote SIM control
    • Interface with any type of M2M devices
    • Advanced SIM price plan and tariff configuration
    • Intuitive Web interface
    • Integration with Quality of Service (QoS) Test Platform
Main features:
    • Centralize SIM cards in one place
    • Manual, Automatic or API managed SIM Allocation
    • Web-based configuration
    • SIM card storage : Up to 160 SIM card (extensible with additional SIM Rack)
    • Multi country support
"For more information, please refer to our website: http://www.iqsim.com/smart_sim_rack.htm
or contact us at info@iqsim.com"




SIM Rack for Mobile Termination


Key benefits:
    • Remote SIM access over IP
    • Hot swappable SIM Rack board
    • Up to 416 SIM cards in a 6U rackable chassis
    • Support GSM SIM and USIM cards
    • SIM Storage capacity for Call & SMS Termination
Main features:
    • IP connection monitoring
    • Dynamic IP reconnection
    • SIM travel simulation
    • Dynamic SIM swap
    • Prepaid SIM card management
"For more information, please refer to our website: http://www.iqsim.com/sim_racks.htm
or contact us at info@iqsim.com"




MENU GSM Devices WEB.jpg

GSM Devices are geographically dispersed and connected virtually to the SIMs through IRON architecture. Whether your start in business or not, iQsim will suit your needs!




Mobile Probe.png

Mobile Probe for Mobile Network Testing


Key benefits:
    • Install your own QoS/test application
    • XML API for wireless modules and SIM management
    • Virtual SIM technology included
    • Compatible with iQsim SIM manager
    • Can contain up to 8 wireless modules 2G and/or 3G
    • Easy integration with existing environment
"For more information, please refer to our website: http://www.iqsim.com/mobile_probe.htm
or contact us at info@iqsim.com"



schema IRON Mobile Gateway.jpg

IRON Mobile Gateway


Key benefits:
    • Ready-to-go gateway
    • 16/32 GSM ports with up to 1:13 SIM ratio
    • Dynamic IP support and NAT transversal
    • IRON Suite Technology Powered
    • Technical support included
    • Bonus Credits and Promotions Management
Main features:
    • 16 or 32 Quadband GSM modules
    • Support simultaneously SIP and H.323
    • VOIP Codecs : G.723, G.729 and G.711
    • 64 or 128 SIMs capacity to any ports (1:4 ratio)
    • Extensible up to 416 SIMs cards (option)
    • SIM Allocation : Time, Usage (Calls, Daily Usage)
    • Prepaid SIM card management : Credit Check, Top-up, Transfer, Activation
    • SIM cards Bonus and Promotion support
"For more information, please refer to our website: http://www.iqsim.com/iron_mobile_gateway.htm
or contact us at info@iqsim.com"




GSM Gateways


Key benefits:
    • Tri-Band,Quad-Band or UMTS modules
    • From 8 to 16 ports in 1U
    • Dynamic IP Support
    • Fully compatible with IRON Suite SIM Management solution
    • Easy configuration and deployment with IRON Call Manager
    • GSM Gateways fully supported by iQsim's support team
Main features:
    • Easy and powerful web based management
    • Multi-criteria allocation rules by SIM card group
    • SIM travel simulation
    • Dynamic SIM swap
    • Prepaid SIM card management

"For more information, please refer to our website: http://www.iqsim.com/umts_gsm_gateways.htm
or contact us at info@iqsim.com"



ITS Telecom



CGW VIP: The Next Generation of VoIP to GSM Gateways

The CGW-VIP is a unique first-of-its-kind cellular gateway, based on pure-IP technology. The CGW-VIP provides a resilient platform specifically designed to handle both voice and managed data traffic, with the ability to ensure priority and quality of service for voice calls. The CGW-VIP has a friendly user interface for easy management and operation using common web browsers, enabling both local and remote management access.
The ultra-high performance CGW-VIP connects to the office IP network, efficiently routing all calls from the IP network to the cellular network and vice versa. This capability drastically reduces communication costs by enabling the use of inexpensive VoIP calls and letting companies take full advantage of their VPN arrangement on the cellular network. The CGW-VIP is especially cost-effective for companies with extensive use of cellular and long distance calls.
Aside from providing significant cost savings, offices can connect branches, remote offices, or teleworkers and establish an efficient and free-of-charge virtual voice private network. Customers can easily add redundancy and resiliency for their key services in case of traditional network outage. CGW-VIP can also serve as a last mile solution, providing rural telephony in places where no terrestrial infrastructure is available.

Extremely beneficial for:

  • Offices with extensive use of cellular calls
  • Remote or in-field users (Voice VPN)
  • Long distance or international calls
  • Remote branches
  • Business continuity, back up of
  • PSTN and landline VoIP

CGW-VIP Unique VoIP-to-GSM gateway

ITS Telecom and its multi-access gateway the CGW-PX offers a scalable, high performance gateway with 4 PRI interfaces, up to 32 cellular channels and supports GSM, CDMA and UMTS networks. ITS inherent PRI cards eliminate the need to purchase an additional PRI card for the PBX.



CGW-VIP Main Features

  • Supports VoIP, SIP, and GSM connections
  • Interoperates with all standard IP-PBX/soft switch equipment
  • Embedded web server
  • Local and remote management via user-friendly web interface
  • Local and remote upgrades of configuration files and firmware
  • Supports registration of SIP extensions
  • Enables creation of a virtual office with remote extensions
  • Built-in firewall and NAT
  • Built-in Least-Cost-Routing (LCR)
  • CLIP/CLIR



For more Information:
Cellular-to-VoIP solution page: http://www.its-tel.com/category_info.asp?id=103_
CGW-VIP Product page: http://www.its-tel.com/info.asp?id=63
More cellular solutions: http://www.its-tel.com/category_info.asp?id=103_144_





Convergence of Cellular, PSTN & VoIP Interfaces in One Box

Designed for corporate businesses and cellular operators the VoIP-Cellular-PSTN Gateway lets you seamless handover between cellular to fix calls or to VoIP and vice versa, any combination in any direction is possible.



Extremely beneficial for:
  • Cellular operators- Enable them to stream cellular traffic via their network, increase traffic and gain new revenues from incoming calls
  • Corporations- Enable them to migrate to the IP world without replacing the existing infrastructure and gain from low-cost VoIP calls and maximize network resources.

CGW-PX One Multi-Access Gateway

ITS Telecom and its multi-access gateway the CGW-PX offers a scalable, high performance gateway with 4 PRI interfaces, up to 32 cellular channels and supports GSM, CDMA and UMTS networks. ITS inherent PRI cards eliminate the need to purchase an additional PRI card for the PBX.



CGW-PX Main Features
  • Embedded VoIP, PRI and Cellular interfaces
  • Up to 32 cellular channels
  • 4 SIM cards per channel
  • PRI switching
  • Up to 4 PRI trunks
  • Supports GSM, CDMA & UMTS networks
  • Cost saving LCR table
  • CDR support
  • Superior audio quality
  • Easy installation- no need to reconfigure the PBX



JUNGHANS PCI GSM CARD

The Junghanns.NET GSM PCI series cards provide scalable connectivity to GSM networks for your Linux machine. It comes with fully GPLed drivers for the Linux 2.4.X and 2.6.X kernels. Multiple Junghanns.NET GSM PCI series cards can be interconnected over an external PCM bus. The card's active channel switching capability (to bridge voice channels on the card without latency and not using the host CPU) is also working over the external PCM bus (e.g. voice channels on different cards can be actively switched). The Junghanns.NET GSM PCI series cards can be connected to any other Junghanns.NET card to build a real TDM switched PBX.
http://www.junghanns.net/en/GSM-PCI_produkt.html

EUR900 for PCI card with 1 module, EUR1200 for card with 2 modules.





MCS – Mixe Communication Solutions B.V.


Fixed-Mobile Convergence Gateways: 2-30 GSM/SIP channels / 5 SIMs per channel




For more than 10 years MCS’ AS5xx-GSM Gateways are available through distributors and resellers. ‘Evolution of Proven Technology’: German quality products ranging from ISDN2 to ISDN30 to SIP. Successful SIP implementations based on extensive typetesting with most IP-PBX platforms:

- 3CX Phone System
- Aastra Ascotel 300
- Aastra (Ericsson) MX One
- Alcatel OXE
- Alcatel OXO
- Altigen
- Asteriks 1.4
- Avaya IP Office
- Cisco Callmanager (Express)
- Interactive
- Innovaphone
- LG-Nortel IPEC
- Microsoft OCS
- Mitel 3300 ICP
- PMN platform
- NEC Philips
- Nortel BCM
- Nortel CS1000
- Scopserv
- Shoretel
- Siemens HiPath 2000
- Siemens HiPath 3000
- Siemens OpenOffice
- Swyx
- Panasonic KX-TDE100E
- Vertical Televantage IP-PBX
- Xelion
- Zyxel IPBBX X6004

Hosted platforms:
- Broadsoft
    • OneXS
    • RoutIT
    • TeleSpectrum TMVS
- Natural Convergence / Silhouette
    • uNet


MCS Gateways Features & Highlights:

• 2 - 30 GSM / VoIP channels
• Building Blocks available:
• Up to 5 SIM cards per GSM Channel (SimSwitch versions)
• Integrated antenna combiner
• Siemens/Cinterion Quadband modules with digital audio
• Remote configuration
• Powerful on-board tracing and Wireshark analysis

19" Master & Slave:

19" SimSwitch Master:

Desktop version:


Other related products:
ISDN2/BRI - GSM Gateway
ISDN30/PRI GSM - Gateway

More Information:
www.mcs-nl.com
or by mail: info@mcs-nl.com


-==-

NICHERONS SpoGSM GSM Gateway & ipppbx







System Users:

•- Small and medium enterprises ( SMB )
•- Law firms
•- Brokerage offices
•- Insurance offices
•- Medical offices
•- Travel agencies
•- Apartments
•- Universities and Schools
•- Small Hotels, Motels
•- Home users / Home businesses ( SOHO)
•- Remote users
•- Branch offices

System Specification:

  • Form Factor: Small form factor
  • Dimensions (WxDxH): 330mmx130mmx37mm
  • Weight: 1.5kg
  • Processor: 32-bit 400Mhz RISC processor
  • Onboard Flash: 1000MB
  • Onboard SDRAM:64MB
  • Connectivity: 2x RJ45; 4x GSM slots; Power connector
  • Power: AC 100-240 V ( 50/60 Hz ) adapter In
  • OS: uClinux 2.6x;
  • PBX software: Asterisk 1.4.x

You don't need to be a telephone expertise. We are also behind the product to ensure it up & running!

Easy to Setup and Manage
Cost effective
Easy to use - Friendly GUI for 1st time user

Everything you need to cover your phone needs & MUCH More.
Commercial QUALITY at no compromise, Built to last!!!

P.S. - All the Configuration and Management is done via WEB based GUI.

System Key features

- 4 x GSM Analog Phone Lines (other combination of FXO / FXS ports are available)
- Base on Asterisk
- Configuration by Web
- Built-in SIP/IAX server
- Static/DHCP/PPPoE network access
- Codec: G7.11 ulaw, G711 alaw, GSM, SPEEX, G.726, G729 (no additional license fee required)
- SIP/IAX Trunk (use with voip trunk operator)
- Zap trunk (use with PSTN &/or GSM)
- Zap Extensions (connect with Analog phone) when equipped with FXS ports
- SIP/IAX extensions (connect with ip phone)
- voice mail server
- Flexible dial plan
- Follow me
- Ring groups
- Local and / or Remote IP Phone Extensions with Voice Mail, Music on Hold
- Branch office support
- As Many as you need VOIP Extensions (No Per User Licenses)
- Simple, Reliable and Economic solution for your phone needs
- Everything you need to place VOIP calls
- WEB based intuitive configurator (user friendly and super easy to use)
- Call Park
- Call Logs
- Support ip phone with key function
- FAX T.38 support
- 3-way calling
- Call waiting
- Caller ID
- Paging & Intercom
- Call forward (on busy or an un-answer call or unregistered extensions)
- WEB Voice mail with e-mail notification
- Call reporting
- Conference Calling - Multiple Conference Bridges supported
- Time Based Rules control
- Remote Backup/Restore through Internet Browser GUI
- Music On Hold
- Call Transfer
- BLACKLIST
- Call Queue
- Conference recording
- Call feature codes (* codes)
- DISA support
- Off Premise Extension - Remote Extension
- Auto Attendant (IVR- Interactive Voice Recording)


Nicherons International Inc.
www.nicherons.com
sales@nicherons.com
Skype Toll Free: sales.nicherons
+1 (905) 2050512


NovaTec

NovaTec now offers the first on the world market TransNova® Internet Pathfinder (TIP) the combiner and advanced application between VoIP, ISDN and GSM. Which integrates your current telephone equipment either in Transparent mode or in SIP Protocol.

With no need to change your ISDN Infrastructure (fax, data and video conferencing), in fact the gaining of more advanced features such as least cost routing for telephony, fixed network, GSM Calls and also internet telephony, and allowing high double figure savings in your telephone bills, this is the killer application to rival the already killer application VoIP.

The ISDN structure is transported fully transparently into IP Data, therefore allowing for example your employees to completely mirror their workplace anywhere in the world where an IP network is available, also allowing you to mirror all your ISDN Features in the workplace direct to your home office, starting from Video door cameras and even video conferencing, and going as far as allowing all calls made to your office, being able to be taken in your home office at the company's expense over the Internet, and for companies with sub-branches abroad can now speak to their employees in these office free of charge, or when used in conjunction with the TMG if into the Mobile network, for the cost of a local Mobile to Mobile call.

NovaTec are the pioneers of GSM Gateways, SIP Gateways,VoIP Gateways and Encryption Gateways , in the digital compact form.

TransNova Mobile Gateways in the PRI range with inbuilt VoIP, these range from the TMG S6 with 4 - 16 GSM channels and can be fitted with up to 4 x E1's and have 4 Simcards per GSM channel, also the possibility to send Email - SMS - Email and a wide range of other features that is listed in the TMG Features list, this can be downloaded from the website at: www.novatec.de these are call through gateways and need no adjustment on already installed PABX's, as this can be used also for least cost routing etc.
The next range is the TMG S20 with from 4 - 60 GSM Channels (Completely Modular and hot pluggable) these can also be fitted with up to 4 x E1's so different interfaces can be connected, e.g. Voip and PABX, with the Least cost routing being done within the TMG. These are also call through so can be fitted before the PABX or after.
Other features include Call back options, from GSM or Fixed network, and also all systems come complete with antenna combining units with no extra costs being charged for this or other features, all are available with real time remote monitoring over IP, ISDN dial up or Local connection. Also realtime ASR monitoring is available with a spill over programm which lets you know if you have enough GSM Channels for the amount of traffic being terminated, if the ASR falls (down to simcard level)below a certain percentage then the system will send a report either by email or SMS to the network controller so ASR rates can be monitored and adjusted.
Antenna rotating systems can also be offered where the Antennas can be moved between base stations, randomly or as timed events, so taking pressure of the network providers when not enough capacity exists on individual base stations (also to hide the effect that the traffic is being terminated through a GSM Gateway).
All GSM Gateways will also be able to be used with the Sea of Sims (Simserver) this is a new application available for the TransNova where any number of GSM gateways can be installed in various locations without Simcards, these are held in a central location (Local SCU) and have a direct IP connection to the terminating units (remote location), the remote gateways request the simcard information required via the IP link and the SCU passes virtual sim information to the Gateway which using this information can terminate the GSM Calls. In the remote location GSM Gateways are local backup Sims for the eventuality that there is an IP breakdown. The SOS then takes away the restriction of how many Simcards can be used per GSM Channel. All Simcards are configurable per time, Budget or amount of minutes, and individual CDR's can be produced per Simcard.



For More information please contact us at info@novatec.de or visit http://www.novatec.de


PIKA Technologies

For Asterisk® / FreePBX® developers requiring GSM connectivity for wireline replacement, Least Cost Routing (LCR), or SMS notification, PIKA now offers a GSM module for the WARP Appliance for Asterisk. The GSM module provides two GSM channels/radios per module and uses two externally accessible SIM cards. The module can work in combination with other WARP Appliance expansion modules (FXO, FXS, BRI).


Applications & Benefits

  • Cost savings with Least Cost Routing (LCR) - For calls between landline and GSM or between different GSM networks, which can be very expensive, the FreePBX dial plan can be configured with a prefix that, when dialed, will route calls placed from a SIP or analog telephone over a GSM trunk.
  • Back-up - Should the landline network go down, GSM can be used as a cost-effective backup.
  • Land Line Displacement - For wireless carriers looking to build incremental traffic on their networks by displacing traditional telephone company land lines, Warp with GSM trunk connectivity provides a unique small/medium business telephone system option.
  • Remote and Temporary Installations – Warp with GSM is an excellent option for the installation of business telephone systems in remote areas where traditional, wired telephone lines may not be available, or may have extended installation intervals. It can also be a great option for temporary installations.
  • Increased productivity with SMS voicemail notification - No longer does a user need to continually check voicemail for that important message. Upon receipt of a voicemail, the owner of the mailbox can receive an SMS message that he or she has a new voicemail.

Features

  • Two quad-band GSM channels/radios per module
  • Support for 2 SIM cards - externally accessible
  • Two modules per WARP
  • GSM module can be combined with analog trunks (FXO), analog stations (FXS) or BRI trunks
  • No external power supply required
  • Average power consumption = 1W per module
  • 3V, 1.8V SIMs supported
  • Supports incoming and outgoing voice calls for PBX, Auto Attendant, IVR and other telephony applications
  • Supports SMS send
  • Supports incoming caller ID
  • WARP Appliance LCD display shows trunk status (circuit type and status: busy, available, ringing)
  • DTMF detection for Auto Attendant, IVR and voicemail applications
  • FreePBX GUI support
  • Full text-based Asterisk dial plan supported

PIKA Warp - angle 300dpi copy.jpg

warp_GSM-back copy.jpg


Image_Trunk Backup.jpg






PORTech Communications lnc.

PORTech is the original manufacturer in Taiwan with 34 years; therefore we’ll do our best to offer the best service and support.

PORTech offer
  • E1 /T1 GSM Channel bank
  • 1/2/4/8/16/32 Ports VoIP GSM Gateway /GSM VoIP Terminal /3G UMTS Gateway/CDMA Gateway
  • SIM Server
  • SBK-32/SBK-128:Remote SIM Bank
  • SMS Gateway,SMS Server
  • Free Roaming Gateway
  • VoIP Adapter
  • 1/4/8 ports GSM Fixed Wireless Terminals(Follow Me GSM Gateway)
  • GSM Booster,Antenna Combiner
  • IP/PSTN Power Switch
  • 3 way conference box
  • IP Speaker
  • Worldwide use ( 2G,3G with all world and Japan,CDMA 2000)

http://www.portech.com.tw
Portech Distributor in Germany & EU http://www.portech.de


VoIP GSM/CDMA/3G Gateway


Portech MV-370 - 1 channel VoIP GSM Gateway

MV-370 : 1 channel VoIP GSM Gateway

Look at the MV-370 configuration howto

Portech MV-372 - 2 channels VoIP GSM Gateway

MV-372 : 2 channels VoIP GSM Gateway

Look at the MV-372 configuration howto

Portech MV-374 - 4 channels VoIP GSM Gateway

MV-374 : 4 channels VoIP GSM Gateway


Portech MV-378 - 8 channels VoIP GSM Gateway

MV-378 : 8 channels VoIP GSM Gateway


Portech MV-3732 : 32 ports VoIP GSM Gateway

Portech MV-3716 : 16 ports VoIP GSM Gateway

Economical solution with competitive price
MV-3732 : 32 channels VoIP GSM Gateway
MV-3716 : 16 channels VoIP GSM Gateway


for call termination (VoIP to GSM/CDMA/UMTS ) and origination (GSM/CDMA/UMTS to VoIP). It is SIP based and compatible with Asterisk. It can enable to make 1,2,4,8,16,32 calls simultaneously from IP phones to GSM/CDMA/UMTS networks and GSM/CDMA/UMTS network to IP phone.
MV serial can Receive SMS and send SMS on web
Allows your program Send/receive SMS with AT Command
Call Back feature


GSM Frequency :
    • Quad band:850/900/1800/1900MHZ
    • CDMA 2000 (800/1900mhz)
    • 3G/UMTS Version: 3G:EDGE/GPRS 850, 900, 1800, 1900 MHz / HSDPA/UMTS 850, 2100 MHz
UMTS Version for all world and Japan (SoftBank Mobile,Docomo)



SMS Gateway

MV-370S: 1 port SMS Gateway.
MV-372S: 2 ports SMS Gateway.
MV-374S: 4 ports SMS Gateway.
MV-378S: 8 ports SMS Gateway.

SMS Server

Manage Muliti SMS Gateway-MV-370S,MV-372S,MV-374S,MV-378S
SMS Gateway/SMS Server
Work with MV-370S/372S/374S/378S:1/2/4/8 PORTS SMS Gateway

Major Function

1.Send Bulk SMS
2.Send SMS by number,user,group
3.set the prefix of sim,total sms/sending time
4.Address book upload/export
5.set schedule message
6.SMS to email
7.SMS to mobile
8.CDR
9.Support to work with muliti sms gateway
10.sms report
11.USSD balance check and recharge


Portech FTA-102L - Free Roaming Gateway


When you go abroad with FTA-102L, all incoming calls of your original mobile phone are free of charge. FTA-102L provide free roaming fee for international inbound calls. When you are on business travel oversea, your coworkers, friends, family, and clients can just call your original mobile phone number to reach you. This is of enormous benefit for user, you don’t’ need to use others country phone access number. Also, it’s simply and easy to send from your original mobile phone while traveling/abroad.
FTA-102L must connect with MV-370.

PORTech PG-101 VoIP adapter ATA

PG-101 VoIP adapter ATA with FXS, FXO

PG-101 can connect MV-370 VoIP GSM Gateway:
User can easily carry away to receive calls from your original mobile phone and make outgoing calls to home country with original rate while traveling/abroad.
No more international call charge. And no miss calls while going abroad
User can eliminate international call charge and roaming fee


Portech SIM Server

SS-128: 128 sims SIM Server (manage 4 SBK-32 sim banks)
SS-256: 256 sims SIM Server (manage 8 SBK-32 sim banks)
SS-512: 512 sims SIM Server (manage 16 SBK-32 sim banks)


Features:
Set Talk Time per SIM
Set GSM Group (Assign several SIMs Per GSM Port)
Set Day of week
Set Time Range

Portech SBK-32 : 32 SIMs Remote SIM Bank

Remote sim access that connect with serial MV-37X via internet.
SBK-32 : 32 SIMs Remote SIM Bank


Portech SBK-128 : 128 SIMs Remote SIM Bank

Remote sim access that connect with serial MV-37X via internet.
SBK-128 : 128 SIMs Remote SIM Bank

With SBK-32/SBK-128,SIM cards are no longer need to be installed in MV-37X anymore; you can deploy your GSM gateways in different locations and countries. New concept of using SBK-32 solution, you can centralize and supervise all sims in one place.
In that case, SIM management will be easy, quick and safe as well. All SIM cards can be stored and control in one secure place. Once in a while, MV-37X must change SIM cards to get the best rate on different GSM operators. With SBK-32/SBK-128, you can place physical sims in office or change SIM corresponding port directly on web any second.MV-37X connects with SBK-32/SBK-128 to read the SIM information and register it on the GSM network.

Key Specifications/Special Features

· Handle 32/128 SIM cards per SBK-32/SBK-128
· Central management and secure storage of all SIM cards
· Control and Supervision of your SIMs from your office
· Allow you to choose the best GSM operators price plan
· Immediate control of all your SIM cards from your office
· Easy and powerful web based management, Easy to configure convenience any time!
· Switch SIM cards between connected gateways, configuration via remote client
· Save huge costs on technicians and traveling to the installation sites

Solution suggest
1. If you need the solution for 32 GSM ports,1 SIM per GSM port, you can buy
MV-3732*1,SBK-32*1,SS-128
2. If you need the solution for 32 GSM ports,4 SIMs per GSM port, you can buy
MV-3732*1,SBK-128*1,SS-128
3. If you need the solution for 64 GSM ports,4 SIMs per GSM port, you can buy
MV-3732*2,SBK-128*2,SS-256

Any GSM solution you neeed, please contact us soon



DuMV@PCI: 2 ports GSM/VoIP PCI Card

DuMV@PCI: 2 ports GSM/VoIP PCI Card

DuMV@PCI: 2 ports GSM/VoIP PCI Card is Full function (both GSM and VoIP) on board , SIP based and compatible with Asterisk. It can enable to make 2 calls simultaneously from IP phones to GSM/CDMA/UMTS networks and GSM/CDMA/UMTS network to IP phone.
Beside Voice,2 ports GSM/VoIP PCI Card support SMS sending and SMS receiving on web directly . Also allows your program Send/receive SMS with all GSM AT Command .
Worldwide use ( 2G-850/900/1800/1900 MHz ,3G compatible with all world and Japan,CDMA 2000)
  • Antenna : 1
  • SIM Card Hot swapping
  • Individual route table- LAN --> MOBILE and MOBILE --> LAN
    • Support one stage diaing
    • You can dial any GSM destination number via the sim from lan phone directly.
    • Support free mode (two stage dialing) and assigned mode (one stage dialing)4.Voice response for setting and status(dial in from mobile).
  • Standard SIP(RFC2543,RFC3261) protocol,communicates with other gateway or PC
  • Receive SMS and Send SMS On web directly
  • Allows your program Send/receive SMS with all GSM AT Command
  • call back
  • Full function on board and can be set on web.

GSM Frequency :
    • Quad band:850/900/1800/1900MHZ
    • CDMA 2000 (800/1900mhz)
    • 3G/UMTS Version: 3G:EDGE/GPRS 850, 900, 1800, 1900 MHz / HSDPA/UMTS 850, 2100 MHz
UMTS Version for all world and Japan (SoftBank Mobile,Docomo)






GSM Fixed Wireless Terminals /Follow Me GSM Gateway

MT-350~1 ports GSM Fixed Wireless Terminals,Follow Me GSM Gateway
option:MT-350S, Add SMS Function(Short message Service)(1 port only)

MT-354~4 ports GSM Fixed Wireless Terminals,Follow Me GSM Gateway
MT-358~8 ports GSM Fixed Wireless Terminals,Follow Me GSM Gateway
MT-358_Follow Me GSM Gateway
It has FXS,FXO,GSM interface that connect with PBX,PSTN or VoIP Gateway
Auto-select economic route (LCR)
GSM Prefix No.Setting (50 sets)
Polarity reversing function
Call-transfer: Follow Me
( 1) PSTN to GSM:
An incoming call of PSTN will be transferred to specify GSM no.
( 2) GSM to PSTN:
  • An incoming call of GSM will be transferred to specify PSTN no.
  • GSM in PSTN out, give you a prompt "du" and you can enter any destination number
GSM Frequency :
Quad band

DMT E1 GSM Channel Bank

E1 PRI/T1 PRI
GSM/UMTS/CDMA
DMT: E1 GSM Channel Bank

DMT-GSM Channel Bank: GSM ,CDMA can be combined in one DMT
DMT accepts incoming call from E1/T1 PRI of PSTN or
PBX and choose one GSM channel to dial out according to the prefix of the
destination mobile number. In this way, we can have least cost routing.
DMT can provide Call Detail Record (CDR) for traffic and accounting management.
  • ISDN PRI interface: 1 port or VoIP Card*1
  • GSM/CDMA/UMTS interface: 31 ports
  • Optional external SCE-900: Expands SIM card upto 32 pieces per GSM channel.
  • Optional external SCBox: Expands SIM card upto 4 pieces per GSM channel.
  • Applicable for telecom service providers
  • VoIP application: Gateway's E1/T1 port connects DMT's E1/T1 port
  • Calling time: user can assign the calling time for each sheet of the SIM
card.When the time runs out, system will block this GSM port, or switch
to next unused SIM card (in the case that SCE is installed).
Besides PRI to GSM,you may also apply GSM to PRI (two ways).

  • Frequecny:
    • Quad Band:900/1800/1900/850MHZ
    • CDMA 2000(800/1900MHZ)
    • 3G/UMTS:EDGE/GPRS 850, 900, 1800, 1900 MHz / HSDPA/UMTS 850, 2100 MHz
UMTS Version for all world and Japen (SoftBank Mobile,Docomo)

DMT-E1 GSM Channel Bank

Antenna collecting Box: Base equipment.


If you want to connect extra Outdoor directional antenna or Yigi antenna with long cable-10m,20m,30m,you can purchase option Antenna Combiner(AC-32)



PSTN Power Switch/ IP Power Switch

If your control room is usually no body there,you can consider our Smart Power Monitor(4 ports)
Smart Power Monitor(8 ports)
- Remote power on/ off /reboot by PSTN and WEB.



GSM Booster: BT-921/ BT-918


BT-921 (GSM + 3G) is Dual Band GSM Booster
BT-918 (GSM + DCS) is Dual Band GSM Booster

PORTech BT-921 provides and improves the voice and cellular signal, and also high data rate communication like HSDPA / HSUPA / HSPA+ (mobile internet).

It's high quality with superior amplification, simple installation for office, home and indoor location need
GSM Booster: BT-921/ BT-918

3 way conference box

PT-301CB/PT-302CB (3 way conference box) connects with PC via USB port and can make 3 conference calls through different softphone softwares e.g Skype , SJphone,X-Lite
PT-301CB/PT-302CB (3 way conference box)

If you have interest,please contact us

PORTech Communications Inc.
150 Shiang Shung N.Rd,Taichung,Taiwan
http://www.portech.com.tw
E-mail:sales@portech.com.tw
http://www.portech.com.tw/download/PORTECH_dm.pdf---- PORTech Products list




QuesCom

QuesCom VoIP GSM gateway

Q200 (2).jpg








QuesCom gateways


QuesCom is a certified member of major PBX vendor programs as 3COM, Aastra Matra, Alcatel, Avaya, Cisco, Innovaphone, Mitel & Swyx.

Technical specifications:
• Up to 16 GSM channels in one GSM gateway
• Connection to the PBX either in IP or in ISDN
• Quad band GSM (850/900/1800/1900 MHz)
• Dual band CDMA (800/1900 MHz)
• Tri band UMTS (850/1900/2100 MHz)
• Supports H.323, SIP
• Support for failover between VoIP and GSM network
• One 10/100 Ethernet port;
• Support for Master/Slave architecture
• Integrated SMS gateway
• CallBack request by SMS and by HTTP
• IVR (Interactive Voice Response)
• LCR - List Cost Routing
• CDR - Call Detail Records
• Support for Fax server and T.38 fax protocol (expandable to 500 users);
• Support for Mobility service (expandable to 500 users);
• GSM gateway delivered with 2 free demo users (for Fax/SMS and mobility features testing)


Further information about QuesCom GSM gateways



QuesCom SMS Manager


QuesCom allows you to receive SMS on each GSM channels and to send SMS by any user from his personal computer. The new version of QuesCom GSM gateway supports:
• Email to SMS format: mobileNumber@domain.com
• Flash SMS supported
• Send SMS to multiple users via Outlook

The QuesCom SMS Manager is a software for sending and/or receiving SMS, and allows to do:
• SMS Campaigns
• Campaign reports
• Third-Party Application & Database Integration.


More information about QuesCom SMS Manager http://www.quescom.com/sms_manager.asp



QuesCom Fax Server


Fax feature are available in :
• ISDN
• IP environments (T.38 codec).

Faxes can be received on:
• The One Number: Faxes and voice calls can be received on the same number AND at the same time.
• On dedicated fax DDI number

Faxes can be sent using:
• Microsoft Outlook
• Microsoft Fax
• Lotus Notes
• A printer Driver


The email received by the user can afterwards be checked, saved, deleted, and transfered to any email address.
A copy of the received fax can be stored on the administrator email.

More information about Fax Server http://www.quescom.com/Fax_Server.asp


In addition to your QuesCom GSM gateway solution architecture, the QuesCom SIM Server manages the SIM allocation without the need of human intervention by gathering all SIM cards in a single location. According to the time of the day, calls to GSM are routed to the best SIM card without ever exceeding plans.

Contact us:
E-mail:sales@quescom.com
Website: http://www.quescom.com

bg_quescom400 - EN-2.jpg




SIPCPE


FX-300 GSM Call Director(a GSM <--> VOIP/PSTN switch and bridge)


Most of the voip customer premise equipment (Cisco ATA 186, Grandstream ATA 286, Sipura SPA-2000, Motorola ATA, etc) sold or provided for free by the various and numerous voip service providers such as Vonage, AT&T, Time Warner, Packet8, etc do not provide any interconnect to the traditional cellular or landline networks. Thus, users must use a separate handset to make and receive voip calls and they are restricted to using the voip service when at home or in the office.

SIPCPE products such as the FX-300 GSM Call Director are accessory add-on products designed to provide a bridge or interconnect between the customer's voip hardware mentioned above and the traditional cellular (GSM) networks respectively thereby enabling remote access to the customer's voip service.

The most cost effective mobile convergence solution available and the only solution you can use with the popular VOIP services such as Vonage, Packet 8, At&T, Version, Time Warner, etc.

Suggested Retail only $299

Specifications
  • Built in Tri-Band GSM Modem 850/1800/1900 or 900/1800/1900
  • Both a PHONE port and a LINE port
  • Connects to VOIP or PBX or PSTN
  • External Antenna

Advanced Features
  • Forward unanswered VOIP calls to your GSM phone
  • Access you VOIP service from your GSM phones.
  • Share your unlimted VOIP service plan with all your GSM phones in your family or business.
  • Use one handset to make and recieve your VOIP and GSM calls
  • Connect to VOIP, PSTN or PBX
  • Set up a private user group up to 15 members

Now you can connect any voip gateway (FXS port) to your GSM network.

SIPCPE Support Forum

VOIP (Grandstream) Connection Illustration

http://www.sipcpe.com//fx300GSM.html
sales@sipcpe.com for inquires or call 1-650-641-1784



SL SOLUCIJE

SL Gbox: ASTERISK PCI GSM CARD
PCI card with four slots for up to 4 GSM channels on one card for using with Asterisk (with drivers).
Create your own Asterisk gateway with 4 GSM channels or more (using more PCI cards)

Expected date of commercial arrival: July 2007.

Expected prices:

PCI card (for 4 gsm modules): $500
GSM module: $150

Presale prices: PCI card $350, GSM module $140 (PCI card with 4 modules $900)
Presale reservations on: info(x)slsolucije.hr

(In development: standalone rackmount SIP GSM gateway with up to 32 GSM channels and with one CPU/ethernet module - expected price for a system with 32 GSM modules included is: $6500. Additional E1 cards can be installed for E1 connectivity and/or pass through - interception of GSM calls)

Soundwin Network Inc.

http://www.soundwin.com/
Soundwin GSM Voice Gateway
The V100 Quad-Band GSM over VoIP gateway has been designed for user to make calls and receive calls from a cellular phone via the internet using VoIP (SIP/H.323).


Target Application:
    • GSM Connectivity for IP PBX /Asterisk
    • Mobile IP PBX
    • GSM VoIP Gateway
    • GSM Callback Services (Optional)

Features:
    • FXS interface (for analog phone or PBX CO line)
    • Calls from cellular over VoIP
    • Calls from GSM network to the V100 unit provides a VoIP dial tone
    • SMS Server for SMS sending & receiving
    • Dialed number restriction, evaluation and modification
    • Easy & comfortable maintenance, configuration and upgrade
    • Block / Allow Policy for termination / origination

IP Specifications:
    • H.323 v2/v3/v4 and SIP (RFC 3261) , SDP (RFC 2327), Symmetric RTP, STUN (RFC3489), ENUM (RFC 2916), RTP Payload for DTMF Digits (RFC2833), Outbound Proxy Support.
    • Voice Codec: G.711(a-law /μ-law), G.729 AB, G.723 (6.3 Kbps / 5.3Kbps)
    • WAN: Support PPPoE client, DHCP client, Fix IP Address, DDNS client

Call Features:
    • Voice channels status display
    • Direct Dialing Mode : peer to peer call (support IP Address Call or Domain Name Call)
    • Register Call Mode : register to SIP Proxy Server or register to H.323 Gatekeeper
    • DSP Adjustable volume : - 9 db ~ 9 db
    • Silence Compression / VAD
    • Auto Dial for speed
    • Dynamic Jitter Buffer
    • Hot-Line and Warm-Line Support

Configuration & Management:
    • Web-based Graphical User Interface
    • Remote management over the IP Network
    • FTP firmware upgrade
    • Syslog client support
    • Support Management IP

General Specification
    • Compatible with GSM networks (900/1800/850/1900 MHz)
    • SIM: supports SIM card (3V)
    • 1 WAN port, 1 FXS port
    • Radio interface: Quad-Band EGSM 900/1800/850/1900

Contact: sales@soundwin.com

SunComm


SunComm is a Taiwanese manufacturer of VoIP <-> GSM equipment.
Their product contains a decent GSM module (Siemens, SimCom etc) and an external antenna with magnetic feet.

Their current product line:

2 Channel SC-385 with 2SIM, 1LAN 1WAN , Quad Band ,SMS
4 Channels SC-495 with 4SIM,1WAN , Quad Band ,SMS
8 Channels SC-895 with 8SIM,1WAN, Quad Band ,SMS
SC-0032RS Remote SIM Switch with 32 SIM (to be used as remote SIM server)

Where to buy:
EU, Netherlands & Worldwide VoIP GSM Gateway VoiP Expert





SunComm VoIP GSM Gateway SC-495 with 4SIM, 1 WAN

(NAT & Auto hunting support)

SC-495N with antenna (new photo) July 25 2009.jpg


Key Facts
For GSM - VoIP connection, Quad band 900 1800 850 1900MHz; SIP protocol, Asterisk, VoIPBuster compatible, support NAT & Auto Hunting; CDMA VoIP Terminal: SC-495cdma
Packing Detail


Major Function:
4 x VoIP (SIP)- GSM conversion
50 sets of LAN -> MOBILE routes setting;
50 sets of MOBILE -> LAN routes setting
Voice response for setting & status (dial in from mobile)
For call termination (VoIP to GSM) and origination (GSM to VoIP)
Standard SIP (RFC2543, RFC3261) protocol,communicates with other gateway or PC
To be set on web
Specification:
SIP protocol: (RFC2543, RFC3261)
TCP/IP: IP/TCP/UDP/RTP/RTCP/、CMP/ARP/RARP/SNTP DHCP/DNS Client、IEEE802.1P/Q、ToS/DiffServ、NAT Traversal、STUN、uPnP、IP Assignment、Static IP、DHCP、PPPoE
Codec: G.711 u-Law、G.711 a-Law、G.723.1 (5.3k) G.723.1 (6.3k)、G.729A、G.729A/B、Voice Quality VAD、CNG、AEC、LEC、Packet loss
GSM Frequency: Dual band 900/1800MHz,
Tri band 900/1800/1900MHz
Quad band 900/1800/1900/850MHz

Joan Hu
Suncomm Technology Co.,Ltd
Website : www.suncommtech.com.tw
E-mail: liaison6@suncomm.com.tw
MSN:liaison6@suncomm.com.tw
MSN:liaison3@suncomm.com.tw
Skype: liaison3.suncomm.com.tw
Taiwan Tel:886-2-32341496
Taiwan Fax:886-2-32341393

SunComm VoIP GSM Gateway SC-895 with 8SIM, 1WAN (NAT & Auto hunting support)



SC-895N with antenna (nw photo) July 25 2009.jpg


Key Facts
For 8 GSM - VoIP connection; Quad band 900 1800 850 1900MHz; SIP protocol, Asterisk compatilbe; support NAT & Auto Hungting; CDMA VoIP Terminal: SC-895cdma
Packing Detail


Major Function:
VoIP (SIP)- GSM conversion
50 sets of LAN -> MOBILE routes setting;
50 sets of MOBILE -> LAN routes setting
Voice response for setting & status (dial in from mobile)
For call termination (VoIP to GSM) and origination (GSM to VoIP)
Standard SIP (RFC2543, RFC3261) protocol,communicates with other gateway or PC
To be set on web
Specification:
SIP protocol: (RFC2543, RFC3261)
TCP/IP: IP/TCP/UDP/RTP/RTCP/、CMP/ARP/RARP/SNTP DHCP/DNS Client、IEEE802.1P/Q、ToS/DiffServ、NAT Traversal、STUN、uPnP、IP Assignment、Static IP、DHCP、PPPoE
Codec: G.711 u-Law、G.711 a-Law、G.723.1 (5.3k) G.723.1 (6.3k)、G.729A、G.729A/B、Voice Quality VAD、CNG、AEC、LEC、Packet loss
GSM Frequency: Dual band 900/1800MHz,
Tri band 900/1800/1900MHz
Quad band 900/1800/1900/850MHz

Joan Hu
Suncomm Technology Co.,Ltd
Website : www.suncommtech.com.tw
E-mail: liaison6@suncomm.com.tw
MSN:liaison6@suncomm.com.tw
MSN:liaison3@suncomm.com.tw
Skype: liaison3.suncomm.com.tw
Taiwan Tel:886-2-32341496
Taiwan Fax:886-2-32341393



RS Topex.jpg



Rohde & Schwarz Topex Mobilink IP VOIP-GSM Gateway


2-channel version:


TOPEX MobiLink IP is a GSM/UMTS small capacity gateway with VoIP interfaces. Its main functionality is to interconnect IP PBX or hibrid PBX with mobile networks. With TOPEX MobiLink IP you make significant savings on calls from IP to cellular networks and backwards.


FEATURES:

  • 1 or 2 cellular modules Available in multiple configurations
  • Least Cost Routing by: prefix
  • Works with any IP-PBX or Softswitch based on SIP protocols (e.g. Topex multiSwitch, Topex IP-PBX, Asterisk™, Cisco Call-Manager™,etc),hybrid PBX with VoIP trunks
  • DISA capability
  • Advanced Incoming and outgoing call routing
  • SIP protocols supported
  • Advanced SMS capabilities
  • Send SMS from Web
  • SMS to E-mail and E-mail to SMS
  • Easy to use web based interface

Contact sales for special offer


Rohde & Schwarz Topex VoiBridge 4 GSM


4-channel version:


Topex VoiBridge is a GSM/UMTS small capacity gateway with VoIP or PRI interfaces. Its main functionality is to interconnect VoIP or PSTN networks with mobile networks.
With Topex VoiBridge you make significant savings on calls from IP or PSTN to cellular networks and backwards.

FEATURES:

Capacity:
  • up to 4 GSM/ UMTS channels
  • up to 4 SIM cards ( 1 SIM per channel )
  • 2E1 intefaces - in & out (for PRI variant)
  • H323 and SIP supported
  • Advanced incoming call routing based on Caller- ID
  • Advanced call-routing of outgoing calls
  • SIM Server Ready - compatibilty with TOPEX SIM Manager
  • Advanced security with integrated firewall
BENEFITS:

Supports up to 4 cellular operators
No need to add any other gateway
Simple integration with VoIP and PSTN networks
Least Cost Routing
Fast return of investment
Contact sales for special offer


Rohde & Schwarz Topex MultiACCESS PRI VOIP-GSM Gateway


32 or 64 channels version:



Topex multiAccess is an advanced GSM gateway; its main functionality is to interconnect VoIP& PSTN networks with all kind of mobile networks (GSM, UMTS, CDMA).

FEATURES:
Fixed mobile convergence
VoIP - GSM gateway
Trunk gateway for NGN
Enterprise hybrid telephony solution
IP telephony for Triple Play Solutions (voice, video and data)
VoIP termination

CAPACITY:
VoIP Card
H323 and SIP - supported
up to 60 voice channels
2 E1 trunks
60 simultaneous calls
ISDN, SS7, R2, R1.5 - signaling protocols supported
up to 60 GSM/UMTS/CDMA channels

CONFIGURATION:
Up to 32 cellular channels - 2 GSM/UMTS channels per board
Up to 64 cellular channels - 4 GSM/UMTS channels per board

BENEFITS:
Conversion of PSTN calls into IP or mobile calls
Least Cost Routing
Multiple voice codecs

Contact sales for special offer



Gempro GP-708 GSM/3G/WCDMA VoIP PBX for all systems


Introduction
GP-708 is a revolutionary and innovative product with Bluetooth Interface built inside the IP-PBX.
With this technology you can connect GP-708 by the Bluetooth cell phone.
Meanwhile it can be independent from the limitation between frequency and Telecommunication Provider.
GP-708 became the VoIP PBX support with GSM/CDMA/WCDMA/3G/4G systems.
Further more the 4G/LTE VoIP in the future, GP-708 is the best solution which is economized and easy to load.
http://www.gempro.com.tw/p708.html

Feature
1. Web based management
2. Built-in SIP/IAX Server
3. 8 Ports of Bluetooth trunks
4. SIP/IAX Extensions
5. Code: G.711-Ulaw, G.711-Alaw, G.726, G.729, GSM, SPEEX
6. Bluetooth Specification V2.0
7. Bluetooth working range: 10 meters

Package
GP-708 measurement : 183mm x 105mm x 30mm
2.4G Antenna : 8
Power Supply : Input 100-240VAC 50-60Hz/Output 12VDC 1000mA

Gempro Technology Inc.
E-mail:info@gempro.com.tw
http://www.gempro.com.tw



1, 4, 8, 16, 32 ports VoIP GSM Gateways for call termination, HyberTone Technology


Business card-HBT.jpg

Models of VoIP GSM Gateways
Series 1 SIM port 4 SIM ports 8 SIM ports 16 SIM ports32 SIM ports
External AntennaGoIP-1 GoIP-4 GoIP-8 GoIP-16 GoIP-32
Internal AntennaGoIP-1i GoIP-4i



Specification:

Basic Features:
  • For call termination (VoIP to GSM) and origination (GSM to VoIP) }
  • Standard SIP & H.323 protocol
  • GSM: quad-band 850/900/1800/1900MHz

Major Advantages:
  • Lightweight and Portable
  • Change IMEI Automatically at regular time
  • GSM Base Station Optional
  • Support SIM Bank/ SIM Sever
  • Manual/ Automatic Selection Operators
  • Sending and Receiving SMS and USSD (Web Interface)

Free Software/ Sever:
Remote Control Server: Access Interface Remotely

Relay Server: Relay Encryption (Make Terminals Traversal the NAT without STUN and Outbound Proxy )

SMS Server:
  • Send Bulk SMS
  • Provide CDR and ASR
  • Auto Balance and Recharge

SIM Server:
  • Rotate SIM Cards on Duty
  • Set GSM Group (Assign several SIMs Per GSM Port)
  • Set Talk Time per SIM, Set Day of week, Set Time Range
  • Monitor CDR, ASR, ACD

1 Port VoIP GSM VoIP Gateway



  • SIM ports: 1 port
  • Size: 100mm (W) * 130mm (L) * 60mm (H)
  • Weight ( Including AC/DC Adapter): 0.45KG

4 Ports VoIP GSM VoIP Gateway



  • SIM ports: 4 ports
  • Size: 140mm (W) * 250mm (L) * 60mm (H)
  • Weight ( Including AC/DC Adapter): 0.95KG

8 Ports VoIP GSM VoIP Gateway



  • SIM ports: 8 ports
  • Size: 140mm (W) * 330mm (L) * 60mm (H)
  • Weight ( Including AC/DC Adapter): 1.3KG

16 Ports VoIP GSM VoIP Gateway



  • SIM ports: 16 ports
  • Size: 150mm (W) * 290mm (L) * 110mm (H)
  • Weight ( Including AC/DC Adapter): 1.6KG

Lead Sales: Leo
website: www.hybertone.com
telephone: +86 15118089575
skype: Leohybertone
MSN: Leo@hybertone.com
yahoo: Leovoip007@yahoo.com

Facebook
: http://www.facebook.com/HyberTone.VoIP
Youtube
: http://www.youtube.com/HyberTone



Yeastar

VoIP GSM/CDMA Gateway Series—NeoGate TG Series

Reduce costs for SOHO and SMBs


NeoGate TG series is a series of VoIP GSM/CDMA gateway connecting GSM/CDMA Network to VoIP Network directly, which can support two-way communication: GSM/CDMA to VoIP or VoIP to GSM/CDMA. It is the best solution ever to connect IP-based telephone systems and softswitches to GSM/CDMA network; and also the best fallback solution when landline goes down.

Benefits

1) Cost Savings - Save phone bills tremendously with mobile-to-mobile calls and LCR.
2) Back up - Work as a cost-effective backup when the landline network goes down.
3) Easy to install - Everything can be easily set up in the Web based management interface.
4) Easy to integrate - High compatibility with major IP PBX and softswitch brands.

Features

IP Server and SIP Trunk supported
SIP Peer Mode supported
Calling Type: VoIP to GSM/CDMA, GSM/CDMA to VoIP
GSM/CDMA Ports Group Manage, VoIP Trunk Group
Incoming /Outgoing Routing rules
SMS Sending and Receiving
Send Bulk SMS
Gain Adjustment
USSD
PIN Modify
Carrier Selection: Auto/Manual
Balance Alarm
Caller ID/CLIR
Black List
Hotline
Call Duration Limitation
Call Transfer
Call Back
Call Status Display
Call Detail Record (CDR)
Call Progress Tone Generation
Call Duration Limitation for SIM Card/Single Call
LCR (Least Cost Routing)
Top voice quality (EFR super sound)
SIP Response Code Switch
Open API for SMS and USSD
Real Open API Protocol (Based on Asterisk)
IP Blacklist
Network Attack Alert
System Logs
Web based configuration


NeoGate TG100


NeoGate TG100 is a fully featured 1 port VoIP GSM/CDMA gateway that provides GSM/CDMA network connectivity for softswitch and IP PBX. It significantly reduces the costs of calls with two-way communication: VoIP to GSM/CDMA and GSM/CDMA to VoIP. With friendly GUI, everything can be easily set up.

Yeastar NeoGate Main Distributor of Germany and Europe http://shop.voipdistri.com/VoIP-Analog--GSM--WCDMA--ISDN-BRI-PRI/VoIP-Gateways/VoIP-GSM-IP-Gateway/Yeastar-NeoGate-GSM-Gateway/



Specification

Number of GSM/CDMA channels (Max): 1
GSM Network type: 850/900/1800/1900MHz
CDMA Network type: 800MHz
Protocol: SIP (RFC3261),IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711A/U law, G.722, G.723.1, G.726, G.729a.
Echo Cancellation: ITU-T G.168 LEC

LAN: 1 (10/100Mbps)
Network: Static IP, DHCP Client, Firewall, VLAN, DDNS,
QoS, OpenVPN
NAT Traversal: Static NAT, STUN

Size: 110x70x24mm
Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)

Operation Range: 0°to 40°C, 32° to 104° F
Storage Range: -20° to 65°C, -4° to 149° F
Humidity: 10-90% non-condensing


NeoGate TG200


NeoGate TG200 is a VoIP GSM/CDMA gateway with 2 channels providing GSM/CDMA network connectivity for softswitch and IP PBX. It supports two-way communication: VoIP to GSM/CDMA and GSM/CDMA to VoIP. Thus the calls costs could be significantly reduced by VoIP or GSM/CDMA network.



Specification

Number of GSM/CDMA channels (Max): 2
GSM Network type: 850/900/1800/1900MHz
CDMA Network type: 800MHz
Protocol: SIP (RFC3261),IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711A/U law, G.722, G.723.1, G.726, G.729a.
Echo Cancellation: ITU-T G.168 LEC

LAN: 1 (10/100Mbps)
Network: Static IP, DHCP Client, Firewall, VLAN, DDNS,
QoS, OpenVPN
NAT Traversal: Static NAT, STUN

Size: 213x160x44mm
Power Supply: AC 100-240V 50/60Hz 0.5A MAX

Operation Range: 0°to 40°C, 32° to 104° F
Storage Range: -20° to 65°C, -4° to 149° F
Humidity: 10-90% non-condensing


NeoGate TG400


NeoGate TG400 is a compact 4 channels VoIP GSM/CDMA gateway that connects GSM/CDMA network with VoIP. It is the ideal product for small and medium sized companies with heavy demands of calls to mobile networks. The cost-saving solution makes connection cheaper and efficient.



Specification

Number of GSM/CDMA channels (Max): 4
GSM Network type: 850/900/1800/1900MHz
CDMA Network type: 800MHz
Protocol: SIP (RFC3261),IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711A/U law, G.722, G.723.1, G.726, G.729a.
Echo Cancellation: ITU-T G.168 LEC

LAN: 1 (10/100Mbps)
Network: Static IP, DHCP Client, Firewall, VLAN, DDNS,
QoS, OpenVPN
NAT Traversal: Static NAT, STUN

Size: 213x160x44mm
Power Supply: AC 100-240V 50/60Hz 0.5A MAX

Operation Range: 0°to 40°C, 32° to 104° F
Storage Range: -20° to 65°C, -4° to 149° F
Humidity: 10-90% non-condensing


NeoGate TG800


NeoGate TG800 is a powerful VoIP GSM/CDMA gateway with 8 channels, bridging between GSM/CDMA network and IP-based systems. Designed to slash the cost of telephone calls, it can find the cheapest route and use the most economical SIM card.



Specification

Number of GSM/CDMA channels (Max): 8
GSM Network type: 850/900/1800/1900MHz
CDMA Network type: 800MHz
Protocol: SIP (RFC3261),IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711A/U law, G.722, G.723.1, G.726, G.729a.
Echo Cancellation: ITU-T G.168 LEC

LAN: 1 (10/100Mbps)
Network: Static IP, DHCP Client, Firewall, VLAN, DDNS,
QoS, OpenVPN
NAT Traversal: Static NAT, STUN

Size: 340x210x44mm
Power Supply: AC 100-240V 50/60Hz 1.5A MAX

Operation Range: 0°to 40°C, 32° to 104° F
Storage Range: -20° to 65°C, -4° to 149° F
Humidity: 10-90% non-condensing


NeoGate TG1600


NeoGate TG1600 is a powerful VoIP GSM/CDMA gateway with 16 channels, bridging between GSM/CDMA network and IP-based systems. Designed to slash the cost of telephone calls, it can find the cheapest route and use the most economical SIM card.



Specification

Number of GSM/CDMA channels (Max): 16
GSM Network type: 850/900/1800/1900MHz
CDMA Network type: 800MHz
Protocol: SIP (RFC3261),IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711A/U law, G.722, G.723.1, G.726, G.729a.
Echo Cancellation: ITU-T G.168 LEC

LAN: 1 (10/100Mbps)
Network: Static IP, DHCP Client, Firewall, VLAN, DDNS,
QoS, OpenVPN
NAT Traversal: Static NAT, STUN

Size: 440x280x44mm
Power Supply: AC 100-240V 50/60Hz

Operation Range: 0°to 40°C, 32° to 104° F
Storage Range: -20° to 65°C, -4° to 149° F
Humidity: 10-90% non-condensing

Contact Information




KTS

VoIP GSM Gateway Series — KTS4SMi/KTS4Mi

For SOHO market


Destination
For 4 or 8 GSM to VoIP connection; Quad band 900 1800 850 1900MHz; SIP protocol, Asterisk full compatilbe; support all NAT, with change IMEI, with local SIM server.

Fully compatible with
- 3CX Phone System
- Aastra (Ericsson)
- Alcatel
- Asteriks all
- Avaya IP Office
- Cisco Callmanager
- LG-Nortel IPEC
- Microsoft OCS
- NEC Philips
- Nortel BCM
- Nortel CS1000
- Siemens HiPath all
- Siemens OpenOffice
- Panasonic KX-TDE all
- Zyxel IPBBX X6004

Major Function:
VoIP (SIP)- GSM conversion
For call termination (VoIP to GSM) and origination (GSM to VoIP)
Standard SIP (RFC2543, RFC3261) protocol
Support SMS to MAIL function
To be setup on web
Specification:
SIP protocol: (RFC2543, RFC3261)
TCP/IP: IP/TCP/UDP/RTP/RTCP/、CMP/ARP/RARP/SNTP/SNMP/SMTP/POP DHCP/DNS Client、IEEE802.1P/Q、NAT Traversal、STUN、uPnP、IP Assignment、Static IP、DHCP
Codec: G.711 u-Law、G.711 a-Law、G.723.1 (5.3k) G.723.1 (6.3k)、G.729A、G.729A/B、Voice Quality VAD、CNG、AEC、LEC、Packet loss
GSM Frequency: Quad band 900 1800 850 1900MHz

4-channel version with separate antenna:


4-channel version with separate big antenna:


4-channel version with antenna splitter and small antenna:


4-channel version with antenna splitter and big antenna:



4-channel version with local SIM server and separate antenna:


4-channel version with local SIM server and separate big antenna:


4-channel version with local SIM server and antenna splitter and small antenna:


4-channel version with local SIM server and antenna splitter and big antenna:


VoIP GSM Gateway Series — KTS8SMi


8-channel version with antenna splitter and big antenna:


Contact Information

Computer Techology and System (KTS)

See also

Created by: batikova, Last modification: Wed 19 of Nov, 2014 (07:00 UTC) by michaelchan


Please update this page with new information, just login and click on the "Edit" or "Discussion" tab. Get a free login here: Register Thanks! - Find us on Google+

Page Changes | Comments



Featured -

Search:
