Yeastar - MyPBX

IP PBX for SMBs

The new compact, feature rich PBX for every-day use!

MyPBX is a standalone embedded hybrid PBX for small businesses and remote branch offices of larger organizations (2-300 users per site). MyPBX also offers a hybrid solution (a combination of VoIP applications using legacy telecom equipment) alternative for enterprises who are not yet ready to migrate to a complete VoIP solution.



MyPBX-SOHO


Specification:

Users: 32
Concurrent Calls(Max): 15
Voicemail: 3000min

Interface:
Up to 4 Analog Ports (FXO/FXS)
Up to 4 BRI Ports
Flash: 512 MB Onboard Flash
RAM: 256 MB Onboard RAM
LAN: 1 (10/100Mbps)

Size: 160x160x30 mm
Weight: 500g
Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)

Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP, TCP, TLS, SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263, H263p, H264 ,MPEG4.
DTMF: In-band, RFC2833, SIP INFO
LED: Red for FXO, Orange for BRI, Green for FXS.
Network: Firewall, VLAN, DDNS, QoS, DHCP Server, Static IP, VPN, PPPoE
Multiple Languages Support:
Chinese, English, French, German, Hebrew, Italian, Portuguese, Russian,
Spanish, Swedish, Turkish and more.

Features:

Auto Provision
Blind Transfer
BLF Support
Blacklist
CDR (Call Detail Records)
Call Forward
Call Parking
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
One touch record
PIN User ( PIN Code Control)
Paging/Zone Paging
Queue
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)

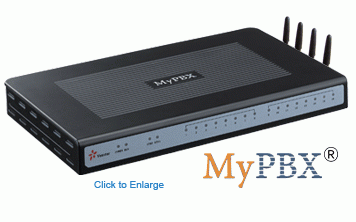

MyPBX-Standard


Specification:

Users: 100
Concurrent Calls: 25
Voicemail: 3000min

Interface:
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports(Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports(UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
Flash: 512 MB Onboard Flash
RAM: 512 MB Onboard RAM
USB: 1 (USB2.0)
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)

Size: 290x180x33 mm
Weight: 700g
Power Supply: AC 100~240V/50~60Hz(DC 12V, 5A)

Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: In-band, RFC2833, SIP INFO
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server, OpenVPN
Multiple Languages Support:
Albanian, Chinese, English, French, Hebrew, Italian, Portuguese, Russian,
Spanish, Turkish, Thai, Korean and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User (PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Static Route
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
  • TR069
Spy functions (Normal Spy, Whisper Spy, Barge Spy)



MyPBX-U100


Specification:

Users: 100
Concurrent Calls: 25
Voicemail: Default 3000min (upgradable)
Auto-Recording(Add-on): Support

Interface:
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
One RS232 Port
One Onboard TF card slot
Flash: 512 MB Onboard Flash
RAM: 512 MB Onboard RAM
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)
USB: 1 (USB2.0)
Audio In/Out: Supported

Size: 340x210x44 mm
Weight: 2.1kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX (DC 12V, 5A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS, SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: In-band, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)



MyPBX-U200


Specification:

Users: 200
Concurrent Calls: 50
Voicemail: Default 3000min (upgradable)
Auto-Recording(Add-on): Support

Interface:
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
One RS232 Port
One Onboard TF card slot
Flash: 512 MB Onboard Flash
RAM: 512 MB Onboard RAM
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)
USB: 1 (USB2.0)
Audio In/Out: Supported

Size: 340x210x44 mm
Weight: 2.1kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX (DC 12V, 5A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)

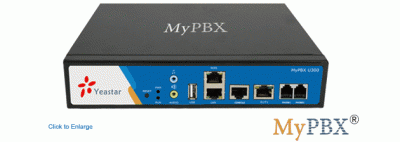

MyPBX-U300


Specification:

Users: 300
Concurrent Calls: 50
Voicemail: Default 3000min

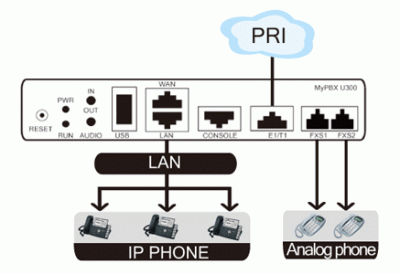

Interface:
One E1/T1/J1 ports (Support PRI,MFC R2,SS7)
2 FXS Ports
One RS232 Port
Flash: 512 MB Onboard Flash
RAM: 512 MB Onboard RAM
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)
USB: 1 (USB2.0)
Audio In/Out: Supported

Size: 213x160x44 mm (1U half-width)
Weight: 1.2kg
Power Supply: AC 100-240V 50/60Hz 0.5A MAX (DC 12V, 2A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS, SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: In-band, RFC2833, SIP INFO
Echo Cancellation: Supported
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)

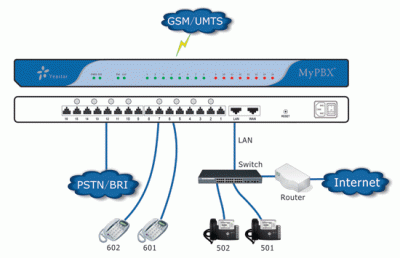

MyPBX-U500


Specification:

Users: 500
Concurrent Calls: 80
Voicemail: Default 3000min (upgradable)
Auto-Recording: Support
Hard Disk: Support 2.5 inch SATA2 (Optional)

Interface:
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
One RS232 Port
RAM: 1 GB Onboard RAM
LAN: 1 (10/100/1000Mbps)
WAN: 1 (10/100/1000Mbps)
USB: 1 (USB2.0)

Size: 438x280x44 mm (1U Rack-Mount)
Weight: 3.4kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX (DC 12V 5A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)



MyPBX-U510


Specification:

Users: 500
Concurrent Calls: 80
Voicemail: Default 3000min (upgradable)
Auto-Recording: Support
Hard Disk: Support 2.5 inch SATA2 (Optional)

Interface:
One E1/T1/J1 ports (Support PRI,MFC R2,SS7)
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
One RS232 Port
RAM: 1 GB Onboard RAM
LAN: 1 (10/100/1000Mbps)
WAN: 1 (10/100/1000Mbps)
USB: 1 (USB2.0)

Size: 438x280x44 mm (1U Rack-Mount)
Weight: 3.4kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX (DC 12V 5A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)


MyPBX-U520


Specification:

Users: 500
Concurrent Calls: 80
Voicemail: Default 3000min (upgradable)
Auto-Recording: Support
Hard Disk: Support 2.5 inch SATA2 (Optional)

Interface:
One E1/T1/J1 ports (Support PRI,MFC R2,SS7)
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
One RS232 Port
RAM: 1 GB Onboard RAM
LAN: 1 (10/100/1000Mbps)
WAN: 1 (10/100/1000Mbps)
USB: 1 (USB2.0)

Size: 438x280x44 mm (1U Rack-Mount)
Weight: 3.4kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX (DC 12V 5A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)



Image Image Image Image

<CE Certification> <FCC Part 15 Certification> <FCC Part 68 Certification> <TBR21 Certification>


For more information:
http://www.yeastar.com


Distributors


Where to Buy



IP PBX for SMBs

The new compact, feature rich PBX for every-day use!

MyPBX is a standalone embedded hybrid PBX for small businesses and remote branch offices of larger organizations (2-300 users per site). MyPBX also offers a hybrid solution (a combination of VoIP applications using legacy telecom equipment) alternative for enterprises who are not yet ready to migrate to a complete VoIP solution.



MyPBX-SOHO


Specification:

Users: 32
Concurrent Calls(Max): 15
Voicemail: 3000min

Interface:
Up to 4 Analog Ports (FXO/FXS)
Up to 4 BRI Ports
Flash: 512 MB Onboard Flash
RAM: 256 MB Onboard RAM
LAN: 1 (10/100Mbps)

Size: 160x160x30 mm
Weight: 500g
Power Supply: AC 100~240V/50~60Hz (DC 12V, 1A)

Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP, TCP, TLS, SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263, H263p, H264 ,MPEG4.
DTMF: In-band, RFC2833, SIP INFO
LED: Red for FXO, Orange for BRI, Green for FXS.
Network: Firewall, VLAN, DDNS, QoS, DHCP Server, Static IP, VPN, PPPoE
Multiple Languages Support:
Chinese, English, French, German, Hebrew, Italian, Portuguese, Russian,
Spanish, Swedish, Turkish and more.

Features:

Auto Provision
Blind Transfer
BLF Support
Blacklist
CDR (Call Detail Records)
Call Forward
Call Parking
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
One touch record
PIN User ( PIN Code Control)
Paging/Zone Paging
Queue
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)



MyPBX-Standard


Specification:

Users: 100
Concurrent Calls: 25
Voicemail: 3000min

Interface:
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports(Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports(UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
Flash: 512 MB Onboard Flash
RAM: 512 MB Onboard RAM
USB: 1 (USB2.0)
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)

Size: 290x180x33 mm
Weight: 700g
Power Supply: AC 100~240V/50~60Hz(DC 12V, 5A)

Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: In-band, RFC2833, SIP INFO
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server, OpenVPN
Multiple Languages Support:
Albanian, Chinese, English, French, Hebrew, Italian, Portuguese, Russian,
Spanish, Turkish, Thai, Korean and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User (PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Static Route
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
  • TR069
Spy functions (Normal Spy, Whisper Spy, Barge Spy)



MyPBX-U100


Specification:

Users: 100
Concurrent Calls: 25
Voicemail: Default 3000min (upgradable)
Auto-Recording(Add-on): Support

Interface:
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
One RS232 Port
One Onboard TF card slot
Flash: 512 MB Onboard Flash
RAM: 512 MB Onboard RAM
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)
USB: 1 (USB2.0)
Audio In/Out: Supported

Size: 340x210x44 mm
Weight: 2.1kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX (DC 12V, 5A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS, SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: In-band, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)



MyPBX-U200


Specification:

Users: 200
Concurrent Calls: 50
Voicemail: Default 3000min (upgradable)
Auto-Recording(Add-on): Support

Interface:
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
One RS232 Port
One Onboard TF card slot
Flash: 512 MB Onboard Flash
RAM: 512 MB Onboard RAM
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)
USB: 1 (USB2.0)
Audio In/Out: Supported

Size: 340x210x44 mm
Weight: 2.1kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX (DC 12V, 5A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)



MyPBX-U300


Specification:

Users: 300
Concurrent Calls: 50
Voicemail: Default 3000min

Interface:

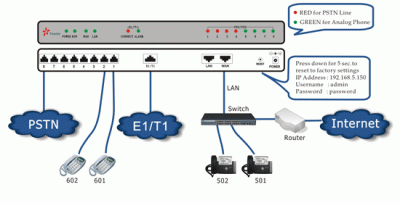

One E1/T1/J1 ports (Support PRI,MFC R2,SS7)
2 FXS Ports
One RS232 Port
Flash: 512 MB Onboard Flash
RAM: 512 MB Onboard RAM
LAN: 1 (10/100Mbps)
WAN: 1 (10/100Mbps)
USB: 1 (USB2.0)
Audio In/Out: Supported

Size: 213x160x44 mm (1U half-width)
Weight: 1.2kg
Power Supply: AC 100-240V 50/60Hz 0.5A MAX (DC 12V, 2A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS, SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: In-band, RFC2833, SIP INFO
Echo Cancellation: Supported
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)

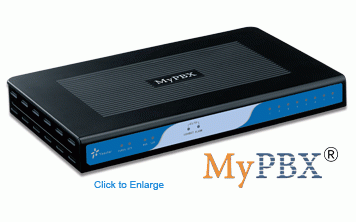

MyPBX-U500


Specification:

Users: 500
Concurrent Calls: 80
Voicemail: Default 3000min (upgradable)
Auto-Recording: Support
Hard Disk: Support 2.5 inch SATA2 (Optional)

Interface:
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
One RS232 Port
RAM: 1 GB Onboard RAM
LAN: 1 (10/100/1000Mbps)
WAN: 1 (10/100/1000Mbps)
USB: 1 (USB2.0)

Size: 438x280x44 mm (1U Rack-Mount)
Weight: 3.4kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX (DC 12V 5A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)



MyPBX-U510


Specification:

Users: 500
Concurrent Calls: 80
Voicemail: Default 3000min (upgradable)
Auto-Recording: Support
Hard Disk: Support 2.5 inch SATA2 (Optional)

Interface:

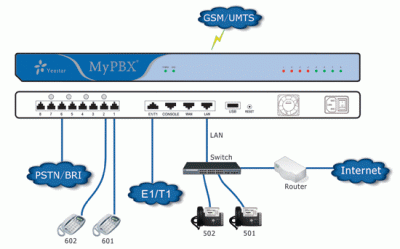

One E1/T1/J1 ports (Support PRI,MFC R2,SS7)
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
One RS232 Port
RAM: 1 GB Onboard RAM
LAN: 1 (10/100/1000Mbps)
WAN: 1 (10/100/1000Mbps)
USB: 1 (USB2.0)

Size: 438x280x44 mm (1U Rack-Mount)
Weight: 3.4kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX (DC 12V 5A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)


MyPBX-U520


Specification:

Users: 500
Concurrent Calls: 80
Voicemail: Default 3000min (upgradable)
Auto-Recording: Support
Hard Disk: Support 2.5 inch SATA2 (Optional)

Interface:
One E1/T1/J1 ports (Support PRI,MFC R2,SS7)
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 CDMA Ports
Up to 8 BRI Ports
One RS232 Port
RAM: 1 GB Onboard RAM
LAN: 1 (10/100/1000Mbps)
WAN: 1 (10/100/1000Mbps)
USB: 1 (USB2.0)

Size: 438x280x44 mm (1U Rack-Mount)
Weight: 3.4kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX (DC 12V 5A)

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish and more.

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
MyTwins (Double System)
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)



Image Image Image Image

<CE Certification> <FCC Part 15 Certification> <FCC Part 68 Certification> <TBR21 Certification>


For more information:
http://www.yeastar.com


Distributors


Where to Buy



Created by: yeastar, Last modification: Tue 22 of Sep, 2015 (02:18 UTC) by michaelchan
Please update this page with new information, just login and click on the "Edit" or "Discussion" tab. Get a free login here: Register Thanks! - Find us on Google+
