Zhengzhou Yuneng Communication Co.,Ltd (YUXIN ), the manufacturer of VOIP phone ,voice gateway ata,usb phone and usb conference box ,IP camera .For more information about our product,please visit our company website:http://www.yntx.com/english/products/index.asp

IP PHONE Series

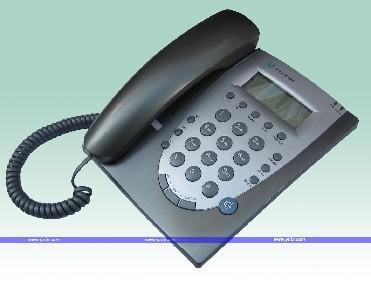

YWH201Series
YWH201B
-1 RJ45
-SIP,IAX2
－Backlight,
CE,FCC
-PoE（Optional）
YWH201D
-2 RJ45
-SIP,IAX2
－Backlight,
CE,FCC
-PoE（Optional）

YWH202 Series
-1 WAN,1 LAN
-SIP,IAX2,H323
－Backlight,
CE,FCC
-2 SIP account
-Message, Record
-PoE（Optional）
It can register two SIP account and one IAX2 account in the same time. All these 3 account
can be used as called anytime . and for the caller ,it can be selected by setting different dial prefix.

YWH300 Series
YWH300C
-1 WAN,1 LAN
-3 SIP account
2 RJ45 Ports, Builtin Router, conference, 3 SIP account, Auto-Provision or updating by http or ftp or tftp or http

YWH600 Series
YWH600A
-1 WAN,1 LAN
-3 SIP account
-PoE(Optional)
YWH600B
-1 WAN,1 LAN
-3 SIP account
-FXO
-PoE(Optional)

2 RJ45 Ports, Builtin Router, conference.
Auto-Provision or updating by http or ftp or tftp or http
For each YWH600A ,it can have 3 SIP account .all can be used callee at anytime.
It can be selected among these 3 SIP account as caller by dial different dial prefix
For each YWH600B ,it can have 3 SIP account and one pstn phone number .that means each

phone own 4 phone number ,all can be used callee at anytime. For the caller,these 4 account
can be selected by dial different relevant prefix (including switch to PSTN as an ordinary pstn phone).
YWH600B has a real FXO to support router call from PSTN to VOIP or from VOIP to PSTN

YWH602
--1 WAN,1 LAN
-SIP,IAX2,H323
-backlight, CE,FCC
-Message, Record
-PoE（Optional）
It can register two SIP account and one IAX2 account in the same time. All these 3 account

can be used as callee anytime . and for the caller , it can be selected by setting

different dial prefix.. M1-M9 Speed dial

Gateway—ATA Series

YGW30
YGW30A
-1 WAN,1 LAN
-1 RJ11 FXS
-1 RJ11 PSTN Lifeline
-3 SIP account
YGW30B
-1 WAN,1 LAN
-1 RJ11 FXS
-1 RJ11 FXO
-3 SIP account

2 RJ45 Ports, Builtin Router, conference.
Auto-Provision or updating by http or ftp or tftp or http
For each YGW30A ,it can have 3 SIP account .all can be used callee at anytime.
It can be selected among these 3 SIP account as caller by dial different dial prefix.
It can be used as pstn ordinary phone when power off.
For each YGW30B ,it can have 3 SIP account and one pstn phone number .that means each ATA
own 4 phone number ,all can be used as callee at anytime. For the caller,these 4 account
can be selected by dial different relevant prefix (including switch to PSTN as an ordinary pstn phone).
YGW30B has a real FXO to support router call from PSTN to VOIP or from VOIP to PSTN

YGW50

-1 WAN
-1 LAN
-1 RJ11 FXS
-1 RJ11 lifeline
-SIP，IAX2

it can have 2 SIP account ,one IAX2 account and one pstn phone number .that means each ATA
own 4 phone number ,all can be used as callee at anytime. For the caller,these 4 account
can be selected by dial different relevant prefix (including switch to PSTN as an ordinary
pstn phone).When power off,it can be used as pstn phone

YGW60

-1 WAN
-1 LAN
-2 RJ11 FXS
-1 RJ11 lifeline
-SIP

Each FXS port can have one SIP account and one PSTN phone number.
It can use the same SIP account for 2 FXS port. But at that time, only one of the 2 port
can be used as callee ,however ,both port can be used as caller simultaneously.
But when they used the different SIP account ,it can be used as caller or callee anytime.
For the lifeline port ,the default is 1 fxs port to be used as pstn phone when power off.
You can select any fxs port to be switched to PSTN as caller through lifeline by dial different dial prefix.

YGW80

-1 WAN
-1 LAN
-4 RJ11 FXS
-SIP
Each FXS port can have one SIP account.
It can use the same SIP account for 4 FXS port. But at that time, only one of the 4 port

can be used as callee ,however ,all port can be used as caller simultaneously.
But when they used the different SIP account ,it can be used as caller or callee anytime.

USB PHONE

USB 2.0 Interface.
High quality for full duplex communication
Built-in sound card and keypad for DTMF dialing, rings on an incoming call
multi-language(English, Japanese,germany,Traditional/ Simplified Chinese).LCD to display

caller ID, contact list
and calling list
( Miss ,Income,Outgoing)

Compatible with VoIP (Voice over Internet Protocol) solution such as Skype .Works as

microphone & earphone with Yahoo Messenger, MSN Messenger, NetMeeting and etc.Hot-key

functions to operate Skype software as easy as dialing a normal telephone

USB Conference

USB 2.0 Interface.
Best voice quality with full-duplex and echo-free sound
Hardware generated DTMF signals for dialing to extension through PBX

Compatible with Skype, the free PC Internet Phone Service
Support Skype,MSN Messenger,Yahoo Messenger,AIM, NetMeeting, Net2Phone, and any other

Internet Telephony software .
Best of Home and office. works under firewall and NAT with virtual IP.
Integrated phone set with USB audio, speaker, microphone, for natural voice conversation.
Plug-and-play installation, operating without any external power adapter.

IP CAMERA

YIC100- CCD IP Camera--MPEG4 32 Bit ARM9
Support DDNS: DynDNS;PeanutHull;88IP
PPPoE ,DHCP, SMTP ,FTP Record，3GPP,
Resoution:D1/Half-D1/CIF/QCIF
Frame:30fps@D1(NTSC),25fps@D1(PAL)
1-64 channel multi-window S/W.
Built-in multi region motion detection (16 regions).
E-mail attachment with snapshot
3 level user login:
         Admin/User/Anonymous
Max 20 user concurrently access
Multi GPIO Connector
         (3 inputs $ 4 Outputs)


YIC200－Wi-Fi CCD IP Camera --MPEG4 32 Bit ARM9
Support DDNS: DynDNS;PeanutHull;88IP
PPPoE ,DHCP, SMTP ,FTP Record，3GPP,
Resoution:D1/Half-D1/CIF/QCIF
Frame:30fps@D1(NTSC),25fps@D1(PAL)
1-64 channel multi-window S/W.
Built-in multi region motion detection (16 regions).
E-mail attachment with snapshot
3 level user login: Admin/User/Anonymous
Max 20 user concurrently access
Multi GPIO Connector(3 inputs $ 4 Outputs)
Enhanced Wireless Security
Support 64-bit /128-bit WEP
     encryption, TKIP, 802.11i, WPA and WPA2.
Security 64/128 bit WEP,
       WPA/WPA2, 802.1x, AES
Signal Range Indoors: Up to 100m
     Outdoors: Up to 400m

YIC10－CMOS IP CAMERA
CMOS colorful,1/4’’ maximum frame rate :30fps (QVGA), 15fps (VGA) motion detection


Specifications
image format MJPG standard
image dpi VGA(640x480)/ QVGA(320x240)
image sensor cmos colorful,1/4’’
network interface RJ-45/10-100 Base T
network agreement TCP/IP, DHCP, SMPT, HTTP, DDNS, UPNP, ICMP
maximum frame rate 30fps (QVGA), 15fps (VGA)
motion detection support
software upgrade systematic software & web page upgrade
monitor way IE explorer
playback method Microsoft media player
output drive 1 channel (5VDC, 2A)
trigger input 1 channel (close trigger)
minimum illumination 2.0 Lux@550nm
white balance auto
work environment 0-50°C, 20%-80%RH
power supply exterior power (PS-D), 110-220VAC/5VDC, 2A
power consumption 2 w
dimensions 120x68x38mm
weight 0.42kg


YIC20－ CMOS Waterproof Infrared IP Camera

CMOS colorful, 1/4", Waterproof:P66 ir-led distance: 15m min illumination: 0 Lux@850nm

Specifications
image format MJPG standard
image dpi VGA(640x480)/ QVGA(320x240)
image sensor cmos colorful, 1/4’’
network interface RJ-45/10-100 Base T
network agreement TCP/IP, DHCP, SMPT, HTTP, DDNS, UPNP, ICMP
maximum frame rate 30fps (QVGA), 15fps (VGA)
motion detection support
software upgrade systematic software & web page upgrade
monitor way IE explorer
playback method Microsoft media player
output drive 1 channel (5VDC, 2A)
trigger input 1 channel (close trigger)
minimum illumination 0 Lux@850nm
waterproof P66
ir-led distance 15m
white balance auto
work environment 0 - 50C°, 20% - 80%RH
power supply exterior power (PS-D), 110-220VAC/5VDC, 2A
power consumption 3 w
dimensions 175x70x82mm
weight 0.6kg (including power adaptor)

YIC30－Wireless CMOS IP Camera

COMS 1/4?" 802.11b/g minimum illumination: 2.0 Lux@550nm


Specifications
image format MJPG standard
image dpi VGA(640x480)/ QVGA(320x240)
image sensor cmos colorful,1/4’’
network interface RJ-45/10-100 Base T, IEEE802.11b/g
network agreement TCP/IP, DHCP, SMPT, HTTP, DDNS, UPNP, ICMP
maximum frame rate 30fps (QVGA), 15fps (VGA)
motion detection support
software upgrade systematic software & web page upgrade
monitor way IE explorer
playback method Microsoft media player
output drive 1 channel (5VDC, 2A)
trigger input 1 channel (close trigger)
minimum illumination 2.0 Lux@550nm
white balance auto
work environment 0-50°C, 20%-80%RH
power supply exterior power (PS-D), 110-220VAC/5VDC, 2A
power consumption 2 w; 3w (wireless)
dimensions 120x62x55mm
weight 0.42kg


YIC50－Waterproof IR Wireless CMOS IP Camera
COMS 1/4" 802.11b/g Waterproof:IP66 ir-led distance: 15m min illumination:0 Lux@850nm

Specifications
image format MJPG standard
image dpi VGA(640x480)/ QVGA(320x240)
image sensor cmos colorful,1/4’’
network interface RJ-45/10-100 Base T, IEEE802.11b/g
network agreement TCP/IP, DHCP, SMPT, HTTP, DDNS, UPNP, ICMP
maximum frame rate 30fps (QVGA), 15fps (VGA)
motion detection support
software upgrade systematic software & web page upgrade
monitor way IE explorer
playback method Microsoft media player
output drive 1 channel (5VDC, 2A)
trigger input 1 channel (close trigger)
minimum illumination 0 Lux@850nm
waterproof P66
ir-led distance 15m
power supply exterior power (PS-D), 110-220VAC/5VDC, 2A
power consumption 2 w; 3w (wireless)
dimensions 120x62x55mm
weight 0.42kg


YIC60－CMOS Pan/Title CMOS IP Camera
Main Specifications:
Image Compression JPEG Standard
Sensor CMOS,1/4’’
Image Dpi VGA (640x480)/ QVGA (320x240)
Network Interface 802.11b/g
Operating Frequency 2400-2483.5MHz( for US, Canada)
2400-2483.5MHz( for Europe)
Operating Channel IEEE 802.1b, Direct Sequence Spread Spectrum,
IEEE 802.11g,Orthogonal Frequency Division Multiplexing
11 Channels( US, Canada)
13 Channels( Europe, Japan)
Network Agreement TCP/IP, DHCP, SMTP, HTTP, DDNS, UPNP, PPPoE, FTP, DNS
Max frame rate 30fps (QVGA), 15fps (VGA)
Alarm Output: 1 Ch (5VDC, 0.1A); Input: 1 Ch (close trigger)
Pan/Tilt Control Vertical: 90°, Horizontal: 120°
Motion Detection Support
Software Upgrade Upgrade by the user
Monitor Way IE browser or special program
Playback Method Window media player
Safety Password protection Mini Illumination 2.0Lux@550nm
Auto White Balance Support Lens CS
Operating Environment 0 - 50°C, 20% - 80%RH
Power Supply Exterior Power Supply: (PS-D): 220VAC/5VDC, 1A
Power Consumption 3W Dimension 110x110x100mm (without aerial)
Weight 0.6Kg (including the package and power adaptor)

YIC80-Wireless Pan/Tilt IP Camera
Main Functions:
    pan/tilt control
    supports UPnP, plug and view
   Dynamic  domain name analysis
    IE monitoring
    assign  dynamic IP address
Specifications:
Image System
- Compression: JPEG Standard
- 300,000 pixels CMOS sensor
- 6.0mm, CS mount lens
- Mini. Illumination: 2.0 Lux@550nm
- Automatic White Balance
- Resolution: QVGA (320 x 240), VGA (640 x 480)
- Image Frame Rate: Max. 30 fps at QVGA, 15 fps at VGA
Network Interface - RJ-45 for Ethernet
Network Protocols - TCP/IP, FTP, SMTP, HTTP, UDP, DHCP,
                                 NTP, DDNS, UPNP, DNS, PPPoE
Monitor Method- IE6.0 or above
Software upgrade- Systematic software & web page upgrade
Security - Three-level Password Protection
