AudioCodes MP118 4FXS 4FXO

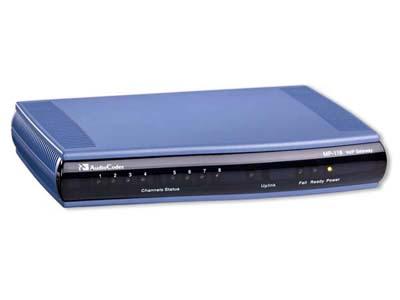

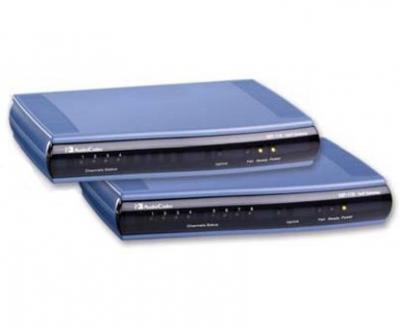

AudioCodes MP118 4FXS 4FXO VoIP Gateway

The Audiocodes MP118 4FXS4FXO Series Analog VoIP Gateways are cost-effective, cutting-edge technology products. Audiocodeds Mediapack VoIP Gateways provide superior voice technology for connecting legacy telephones, fax machines and PBX systems with IP-based telephony networks, as well as for integration with new IP-based PBX architecture.

AudioCodes MP118-4FXS4FXO VoIP Gateway Overview

The Audiocodes Mediapack Gateways are well-suited for commercial VoIP deployment. Field-proven voice and fax technology and feature-rich design makes the MediaPacks an excellent solution for various emerging VoIP applications. The AudioCodes MediaPacks are used in VoIP-based PBX or IP-PBX architecture as a mediation gateway and remote analog extension. It is also used for optimizing voice transmission over satellite links, payphone networks, centralized IVR and Quality Monitoring applications. The MediaPacks are vastly deployed in the MTU (Multi Tenant Units) broadband access networks, IP Centrex and rural areas.

AudioCodes MP118-4FXS4FXO Features and Functions

• 4 FXS Ports
• 4 FXO Ports
• 1 RJ45 Port
• G.711
• G.723.1
• G.726
• G.727
• G.729AB Vocoders
• Price Includes 1-Year Enhanced Support

Manufacturer

• AudioCodes

# of FXO Ports

• 4

# of FXS Ports

• 4

# of RJ45 Ports

• 1

AC Power adapter Included

• Yes

Analog Connection Type

• RJ-11

Auto Provisioning

• Yes

Codec Support

• G.711 u/a law
• G.729 a/b
• G.723
• G.726

Echo Cancellation Support

• Yes- G.168

Fax Support

• T.38

Modular

• No

MWI Support

• Yes

Peripheral Port

• RS-232

Protocol Supported

• SIP
• H.323
• MGCP

Provisioning Method

• HTTP
• TFTP
• WEB GUI
• BootP
• Console

PSTN Fallback / Failover

• Yes

PSTN Signalling Support

• FXO loop start
• FXS loop start

Rack Mountable

• yes-available

Requires Amphenol 50pin Cable

• No
