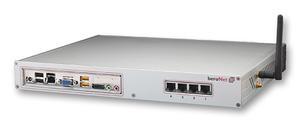

beroNet Telephony Appliance

<< back to beroNet

• Solid State: No Moving Parts, Long Life and Reliable
• Tough: 100% Aluminium Construction, Robust, Light Weight and Rust-Free.
• Modular: There is a Module for every Scenario – PRI, BRI, Hybrid, Analog, GSM & Skype Connect
• Any OS: Install either Operating System or both on the same Appliance
• Extensible: Extend your Appliance with an additional beroNet Gateway
• Cloud Managed: Remotely Manage and Monitor all Modules and Connections
• Green Tech: Operational Use of under 24W saving €200/year in Electricity
• 100% Silent: Completely Silent & can be placed anywhere in any office
• GSM Ready: Powerful solutions integrating GSM for Least Cost Routing & Mobile PBX

Technical Details

Hardware:

• Intel Atom N2800 2×1,86Ghz
• 2GB RAM
• 30 GB SSD
• 4 x external USB 2.0, Gigabit Ethernet port
• Keyboard and Monitor Support
• Silent system and Fanless design

Telephony:

The beronet Telephony Appliance is available in a 16 and a 64 Channel Edition. Both provide two module slots for up to two of the following modules:

• BF4S0 4 ISDN BRI ports
• BF2S02FXS 2 ISDN BRI and 2 analog FXS ports
• BF1E1 1 ISDN PRI /E1 ports
• BF2E1 2 ISDN PRI/E1 ports
• BF4FXO 4 analog FXO ports
• BF4FXS 4 analog FXS ports
• BF2GSM 2 GSM ports

Dimensions and Weight:

• Dimensions: 35 x 25,5 x 4,6 cm (1U industry standard rack- or wallmountable chassis, 19” Brackets optional)
• Weight: 2 kg (depending on module configuration)
• Power supply: 12V DC 3A (2,5×5,5) Desktop, Voltage: 110/230V 50/60Hz

Environment:

• Storage conditions: Temp: -20 ° to 70 °C
• Working conditions: Temp: 0 ° to 40 °C / Humidity: 20% – 95%, non condensing

Warranty and Service:

• 24 months beroNet Warranty
• “Bring In Service” (standard)
• optional available “Advanced Exchange Service”
