Digium Digital Telephony Cards

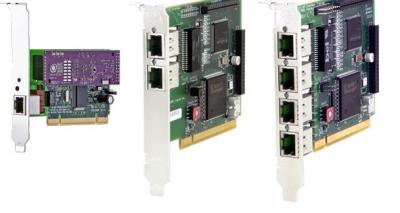

Digium Digital Telephony Cards: Single Span, Double Span, Quad Span

Digium® cards in the TE series are high-performance, cost-effective, digital telephony interfaces which support T1 and E1 environments. The environments are selectable on a per-card or per-port basis. This feature enables signalling translation between T1 and E1 equipment and allows inexpensive T1 channel banks to connect with E1 circuits. The bus-mastering TE cards improve I/O speed over slave-only architectures, resulting in reduced CPU usage and increased card density per server. The cards provide the power to interconnect traditional telephony systems with emerging Voice-over IP (VoIP) technologies.

The TE cards support industry standard telephony protocols, including Primary Rate ISDN (both N. American and Euro Standard) protocol families. Both line-side and trunk-side interfaces are supported, as well as advanced call features.

The TE cards have been designed to be fully compatible with existing software applications. They are fully integrated with Digium’s Asterisk® software. The open source drivers for these cards support an API for custom application development. With the combination of Digium hardware and Asterisk software, numerous telephony configurations are possible. From the traditional PBX to VoIP Gateways, Digium solutions are paving the way for a new generation of worldwide communications.

Target Applications

Legacy PBX/IVR Services
Voice-over Internet Protocol (VoIP) Services
Complex IVR Trees
“Meet-Me” Bridge Conferencing
VoIP Gateways (supports SIP, H.323 and IAX)
Calling Card Platforms
Voice/Data Router (replace expensive routers)
PRI Switch Compatibility – Network or CPE

PRI Switch Compatibility

EuroISDN (PRI or PRA) - Q.931/Q.921
AT&T 4ESS Network or CPE
DMS 100 National ISDN 2
Lucent 5E CAS Voice Modes

Framing Types

Superframe (D4)
Extended Superframe (ESF)
Channel Associated Signaling (CAS)
Common Channel Signaling (CCS)

Coding Types

Alternative Mark Inversion (AMI)
Bipolar with Eight (8) Zero Substitution (B8ZS)
High Density Bipolar of Order Three (3) Code (HDB3)(optional)

1 Port T1/E1 PRI

1 Digital Interface Port
Selectable T1, E1, or J1 Mode / Half-length, Low Profile, Digital Card
TE122 for use only with a 3.3V or 5.0V PCI 2.2 compliant slot.
- Bundled with VPMOCT032 Echo Cancellation Module as TE122B
TE121 for use only with PCI-Express 1.0 compliant slot.
- Bundled with VPMOCT032 Echo Cancellation Module as TE121B

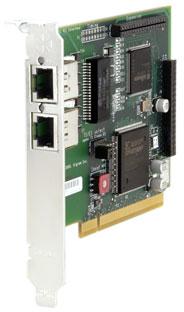

2 Port T1/E1 PRI

2 Digital Interface Ports
Selectable T1, E1, or J1 Mode / Half-length, Full-height, Digital Card
TE205P for use only with a 5.0V PCI 2.2 compliant slot.
- Bundled with VPMOCT64 Echo Cancellation Module as TE207P
TE210P for use only with a 3.3V PCI 2.2 compliant slot.
- Bundled with VPMOCT64 Echo Cancellation Module as TE212P
TE220 for use only with a PCI-Express 1.0 compliant slot.
- Bundled with VPMOCT64 Echo Cancellation Module as TE220B

4 Port T1/E1 PRI

4 Digital Interface Ports
Selectable T1, E1 or J1 Mode / Half-Length, Full-height, Digital Card
TE405P for use only with a 5.0V PCI 2.2 compliant slot.
- Bundled with VPMOCT128 Echo Cancellation Module as TE407P
TE410P for use only with a 3.3V PCI 2.2 compliant slot.
- Bundled with VPMOCT128 Echo Cancellation Module as TE412P
TE420 for use only with a PCI-Express 1.0 compliant slot.
- Bundled with VPMOCT128 Echo Cancellation Module as TE420B
