F3000

UTstarcom F3000 Wireless IP Phone

Color LCD Screen (65000k)
802.11b/g Compatible
Protocols: SIP

Product Description

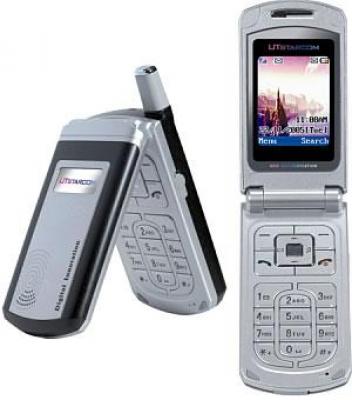

The UTstarcom F3000 is a clam shell style wireless IP phone that combines the power of Voice Over IP technology with the mobility of wireless networking. Wireless Voice Over IP is a revolutionary step for VoIP technology because it extends the reach and capabilities of your VoIP network. UTstarcom has become a respected leader the mobile VoIP industry by releasing quality handsets that use the flexible SIP protocol at an affordable cost. UTstarcom gained an innovative reputation in the marketplace by being one of the first manufacturers to release a 802.11g wireless IP phone which drastically increased sound quality and compatibility with modern wireless (WiFi) networks.

KEY FEATURES

• Clamshell Type Design
• 65K CSTN 1.8ࢀ?, 128×160 pixels
• 802.11b/g
• VoIP Protocols Supported
  • SIP (Session Initiation Protocol)
  • SDP (Session Description Protocol)
  • RTP/RTCP
  • RFC 2833/Inband DTMF
• Network Protocols Supported
  • DHCP (Dynamic Host Configuration Protocol)
  • TFTP/HTTP
  • NTP
• Powerful Personal Information Management
• Earphone supported
• Polyphonic ringtones
• Voicemail indication
• Local Log/System Log

TECHNICAL PROFILE

• Frequency: 2.4 GHz, Channel 1-14
• Effective Range Indoor: 70m Outdoor: 110m
• LCD: 65K CSTN Color LCD, 128Ã-160
• Dimension: 85 x 43 x 22 mm
• Weight: 90g (Approx.)
• Battery: Li-ion DC 3.7V 1100 mAh
• Charger: Input 100~240 VAC 50~60Hz 120mA
• Output: 5.2V DC 600mA
• Charging Time: 2.5 hrs
• Standby Time: Up to 75 hrs (Approx.)
• Talking Time: Up to 3 hrs (Approx.)

CERTIFICATION

• FCC ID:06Y-F3000
• IC and CE

ADDITIONAL FEATURES

• 802.11b/g
  • WEP (64 and 128 bit )/WPA
• Call Features*
  • Three-way calling/Call waiting
  • Call rejection/redial/mute
  • Call transfer/Call forwarding
  • Caller ID blocking
  • Repeat dial
  • Reject anonymous callsv
  • Call hold/resume
• Voice Processing*
  • Codec G.711, G.729av
  • Comfort noise generation (CNG)
  • Voice activity detection (VAD)
  • Adaptive jitter buffer
  • Echo suppression
• Advanced Features*
  • Handover/Roaming between different AP and SSID
  • Net search
  • Auto scan
  • TFTP/HTTP provisioning
  • TFTP/HTTP firmware upgrade
  • Web configuration interface
  • STUN support, DNS SRV
  • AES encrypted provisioning
  • SIP server failover

Default Login

username “admin” password “psw”
