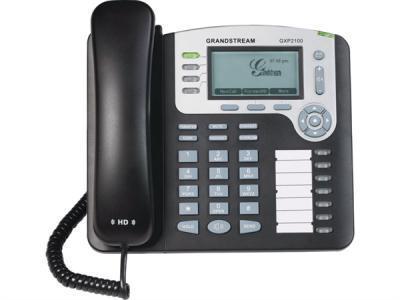

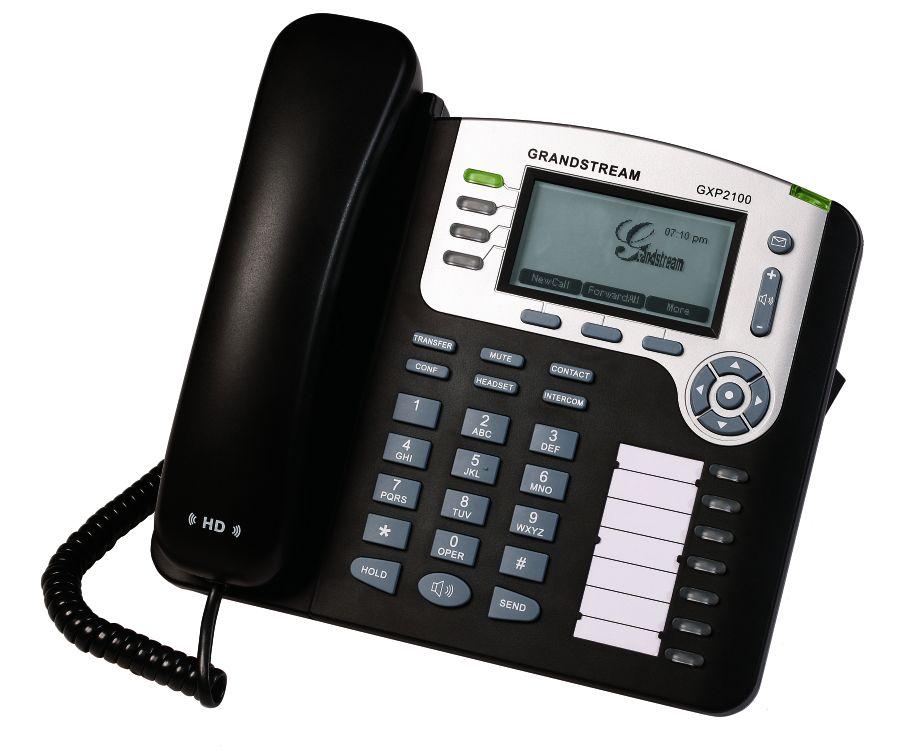

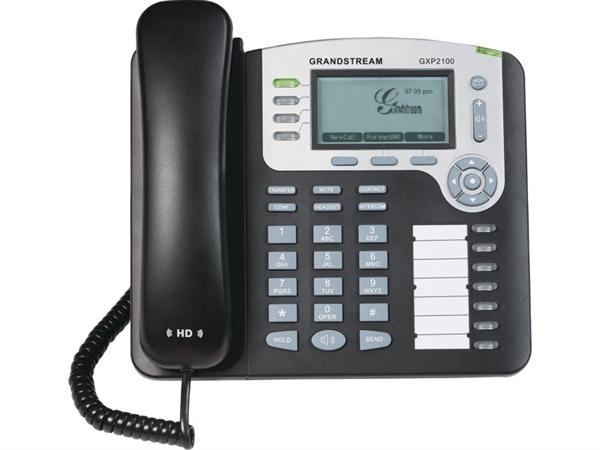

Grandstream GXP 2100

The Grandstream GXP2100 IP Phone is a next generation, enterprise grade IP phone that features 4 lines a 180 x 90 backlit graphical LCD, 3 XML programmable context-sensitive soft keys,
7 XML programmable BLF extension keys, dual network ports with integrated PoE and 5 way conferencing.

The Grandstream GXP2100 IP Phone delivers superior HD audio quality, rich and leading edge telephony features, personalized information and customizable application service,
automated provisioning for easy deployment, advanced security protection for privacy and broad interoperability with most 3rd party SIP devices and leading SIP/NGN/IMS platforms.

It is a perfect choice for enterprise users looking for a high quality, feature rich multi-line IP phone with the best values.

Feature Highlights

• 180×90 pixel backlit graphical LCD display with up to 8 level grayscale
• Dual switched auto-sensing 10/100Mbps network ports with integrated PoE
• Large phonebook (up to 2,000 contacts) and call history (up to 2,000 records)
• 4 dual-color line keys (with 4 SIP accounts), up to 5-way conference (max 4 concurrent calls), and up to 11 call appearances with 7 dual-color BLF (Busy Lamp Field) extension keys
• 3 XML programmable context-sensitive soft keys, a desktop stand to allow 2-angle positions
• HD wideband audio, superb full-duplex hands-free speakerphone with advanced acoustic echo cancellation and excellent double-talk performance
• Automated personal information service (e.g. local weather, stock, currencies, RSS news, etc), personalized music ring tone/music ring back tone/music-on-hold using Internet music streaming or local music files, flexible customizable screen content & format using Web and enterprise applications integration (pending)
• RJ9 and 2.5mm jacks for professional and casual use
• Can be used as a desktop phone or mounted on a wall

Protocols/Standards

• SIP RFC3261
• TCP/IP/UDP
• RTP/RTCP
• HTTP/HTTPS
• ARP/RARP
• ICMP
• DNS (A record, SRV, NAPTR)
• DHCP
• PPPoE
• TELNET
• TFTP
• NTP
• STUN
• SIMPLE
• TR-069
• 802.1x
• IPV6 (pending)

Network Interfaces

• Dual switched 10/100Mbps ports with integrated PoE

Feature Keys

• 4 line keys with dual-color LED and 4 independent SIP accounts
• 7 programmable BLF extension keys with dual-colour LED
• 3 XML programmable context sensitive soft keys
• 5 navigation/menu/volume keys
• 11 dedicated function keys for:
  • Hold
  • Speakerphone
  • Send/Redial
  • Transfer
  • Conference
  • Mute
  • Headset
  • Intercom/Paging
  • Volume
  • Phonebook/Contacts
  • Message (with LED indicator)

Voice Codec

• Support for
  • G.723.1
  • G.729A/B
  • G.711u/a-law
  • G.726
  • G.722 (wide-band)
  • iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Telephony Features

• Hold
• Transfer
• Forward
• 5-way conference
• Busy-lamp field (BLF)
• Call Park
• Pickup
• Shared-call-appearence (SCA)
• Bridged-line-appearence (BLA)
• Downloadable phone book (XML, LDAP, up to 2,000 items)
• Call waiting
• Call log (up to 2,000 records)
• XML customizatin of screen
• Off-hook auto dial
• Auto answer
• Click-to-dial
• Flexible dial plan
• Hot desking
• Personalized music ringtones and music on hold
• Server redundancy and fail-over

QoS

• Layer 2 (802.1Q, 801.2p)
• Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords
• MD5 and MD5-sess based authentication
• AES based secure configuration file
• SRTP
• TLS
• 802.1x media access control

Languages

• English
• German
• Italian
• French
• Spanish
• Chinese
• Korean
• Japanese, etc)

Upgrade/Provisioning

• Firmware upgrade via TFTP/HTTP/HTTPS
• Mass provisioning using TR-069 or encrypted XML configuration file

Power & Green Energy Efficiency

• Universal power adapter included
• Input: 100-240VAC 50-60Hz
• Output: +5VDC, 800mA)
• Integrated Power-over-Ethernet (802.3af)
• Max power consumption 2.5W (power adapter) or 3W (PoE)

Physical

• Dimension: 222mm (W) x 210mm (L) x 93mm (H)
• Unit weight; 0.98KG; Package weight; 1.63KG

Temperature and Humidity

• 32-104 Degrees Farenheit/ 0-40 Degrees Celcius, 10-90% (non-condensing)

Package Content

• GXP2100 phone
• Handset with cord
• Base stand
• Universal power supply
• Network cable
• Quick Start Guide

Compliance

• FCC Part 15 (CFR 47)
• Class B; EN55022
• Class B; EN55024, EN61000-3-2, EN61000-3-3, EN 60950-1;
• AS/NZS CISPR 22 Class B
• AS/NZS CISPR 25
• RoHS
• UL 60950 (power adapter)
