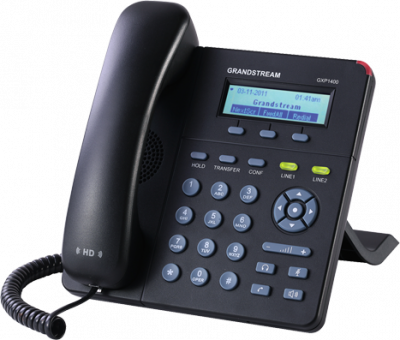

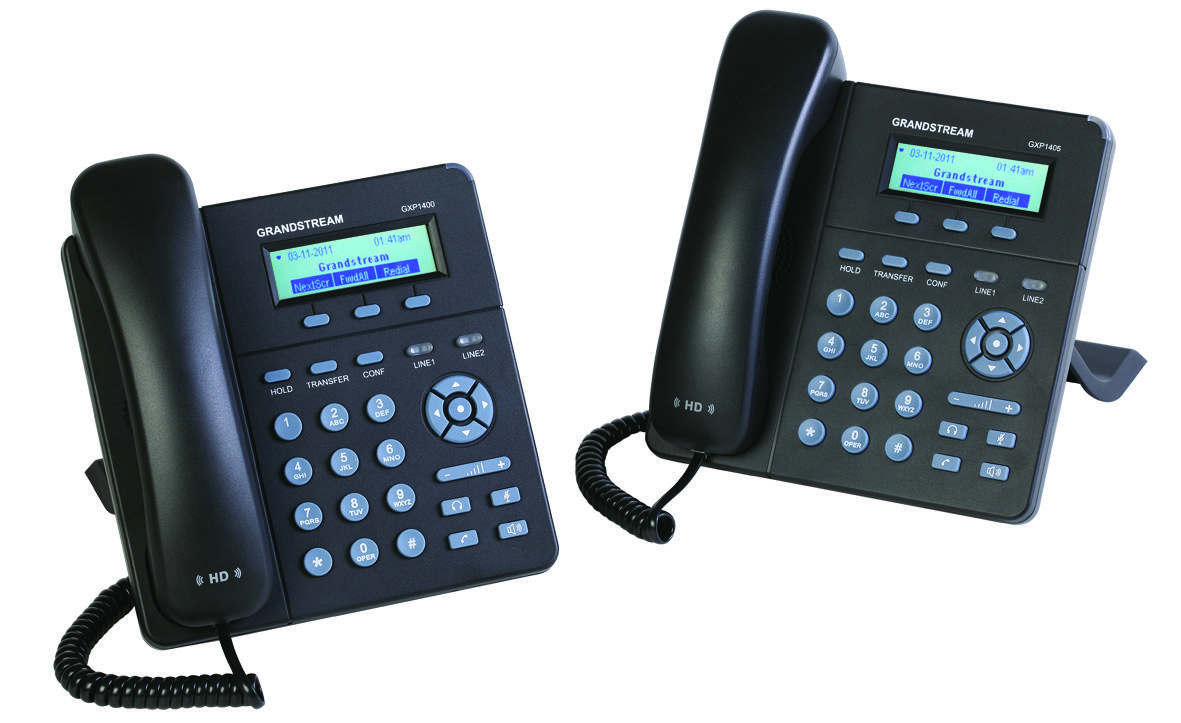

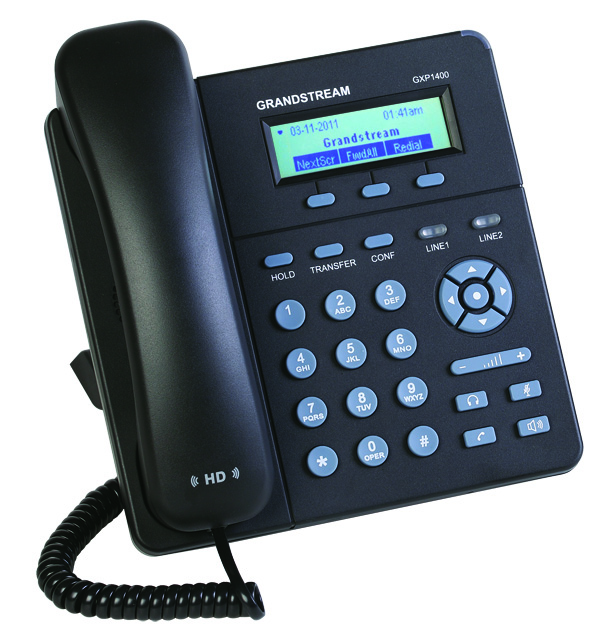

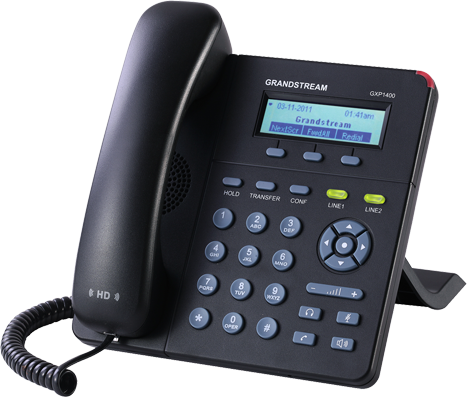

Grandstream GXP1400

The Grandstream GXP1400 IP Phone delivers superior HD audio quality, rich and leading edge telephony features, personalized information and customizable application service, automated provisioning for easy deployment, advanced security protection for privacy and broad interoperability with most 3rd party SIP devices and leading SIP/NGN/IMS platforms.

The Grandstream GXP1400 IP Phone is a perfect choice for small-to-medium businesses looking for a high quality feature rich IP phone at an affordable cost.

Features

• 128×40 pixel graphical LCD display
• 2 line keys with dual color LED 1 SIP account and up to 2 call appearances 3 XML programmable context sensitive soft keys 3-way conference
• HD wideband handset hands free speakerphone with advanced acoustic echo cancellation
• Phonebook with up to 500 contacts and call history with up to 200 records
• Automated personal information service (e.g. local weather) personalized music ring tone/ring back tone
• Dual switched auto sensing 10/100 Mbps network ports
• Automated provisioning using TR 069 or AES encrypted XML configuration file, SRTP and TLS for advanced security protection, 8021x for media access control

Feature Keys

• 2 line keys with dual-color LED and 1 SIP account
• 3 XML programmable context sensitive soft keys
• 5 navigation/menu/volume keys
• 8 dedicated function keys for:
  • Hold
  • Transfer
  • Conference
  • Volume
  • Headset
  • Mute
  • Speakerphone
  • Send/Redial

Telephony Features

• Hold
• Transfer
• Forward
• 3-way conference
• Call park
• Pickup
• Shared-call-appearance (SCA)/Bridged-line-appearance (BLA)
• Downloadable phone book (XML, LDAP, up to 500 items)
• Call waiting
• Call log (up to 200 records)
• Off-hook auto dial
• Auto answer
• Click-to-dial
• Flexible dial plan
• Hot desking
• Personalized music ringtones
• Server redundancy
• Fail-over

Protocols and Standards

• SIP RFC3261
• TCP/IP/UDP
• RTP/RTCP
• HTTP/HTTPS
• ARP/RARP
• ICMP
• DNS (A record, SRV, NAPTR)
• DHCP
• PPPoE
• TELNET
• TFTP
• NTP
• STUN
• SIMPLE
• TR-069
• 802.1x

Voice Codec

• Support for:
  • G.723.1
  • G.729A/B
  • G.711 µ/a
  • G.726-32
  • G.722 (wide-band)
  • iLBC, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Headset Jack

• RJ9 headset jack

QoS

• Layer 2 (802.1Q, 802.1p)
• Layer 3 (ToS, DiffServ, MPLS) QoS

Security

• User and administrator level passwords
• MD5 and MD5-sess based authentication
• AES encrypted configuration file
• SRTP
• TLS
• 802.1x media access control

Languages

• English
• German
• Italian
• French
• Spanish
• Portuguese
• Russian
• Croatian
• simplified and traditional Chinese
• Korean
• Japanese

Upgrades and Provisioning

• Firmware upgrade via TFTP/HTTP/HTTPS
• Mass provisioning using TR-069 or AES encrypted XML configuration file

Power & Green Energy Efficiency

• Universal power adapter included: Input: 100-240VAC 50-60Hz; Output: +5VDC
• Max power consumption: 2.5W

Physical

• Dimensions: 186mm (W) x 210mm (L) x 81mm (D) Unit
• Weight: 0.7kg
• Package weight: 1.1kg

Temperature and Humidity

• 32-1047 °F / 0-40 °C
• 10-90% (non-condensing)

Package Content

• Grandstream GXP1400 IP Phone
• Handset with cord
• Base stand
• Universal power supply
• Network cable
• Quick start guide

Compliance

• FCC Part 15 (CFR 47) Class B
• EN55022 Class B
• EN55024
• EN61000-3-2
• EN61000-3-3
• EN 60950-1 AS/NZS CISPR 22 Class B
• AS/NZS CISPR 24
• RoHS UL 60950 (power adapter)
