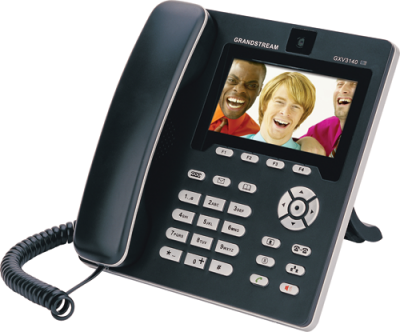

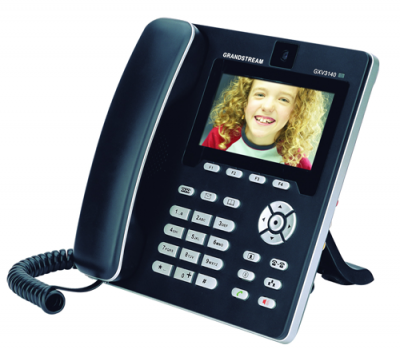

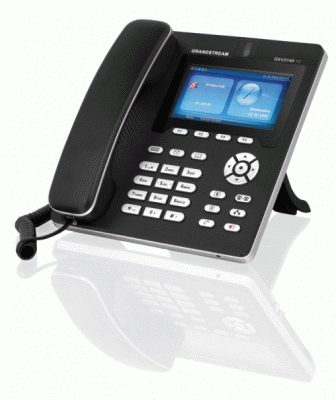

Grandstream GXV3140

GXV3140 IP Multimedia Phone

The GXV3140 represents the next generation of personal IP multimedia communication with great functionality such as:

• Extraordinary video quality, advanced telephony features and rich applications embodied in a sleek industrial design, distinguish this product in a unique class of its own.
• The GXV3140 sports a crystal clear 4.3” digital color LCD, a tiltable 1.3M pixel advanced CMOS camera with razor sharp clarity and privacy shutter, dual network ports,rich auxiliary interfaces (such as SD, USB, stereo headset, audio/video output, etc)
• Advanced video compression (AVC) standard H.264/H.263/H.263+, and a full-duplex speakerphone.

The GXV3140 combines best-in-class technology to enable free video and voice calling worldwide with just one simple step: plug-in. The GXV3140 allows you to keep in touch with friends and family around the world as well as information that impacts your daily life without interruption, any time of day.

• Make free voice and video calls upon installation
• Access real time information through an integrated web browser, RSS feeds of weather/news/stocks and internet radio.*
• Access to Yahoo Flickr web photo album, alarm clock, calendar, games, music ring tones
• A full-duplex speakerphone and popular voice codec support ensure best-in-class telephony features

By splendidly blending state-of-art real time video conference capability with a number of popular Web and social networking applications (such as Web browsing, IM with Yahoo/MSN/Google, Internet radio, Yahoo Flickr Web photo album, RSS news/weather/stock feeds, music streaming, games, etc), the GXV3140 creates a powerful platform for enabling converged IP multimedia applications that bring unprecedented stunning user experience.

Features & Benefits

• 4.3” digital TFT color LCD (480×272 resolution), 1.3M pixel CMOS camera with privacy shutter
• Advanced smart NAT traversal technology to allow truly zero-configuration plug-and-play
• Dual switched 10M/100M auto-sensing Ethernet ports, optional FXS and FXO port
• SD/MMC/SDHC, USB, stereo headset with microphone, stereo audio output, video output, 2-angle stand, wall mountable
• Web browser
• IM with Yahoo/MSN/Google
• RSS feeds of weather/news/stocks
• Internet radio, music/video streaming/playing from SD/USB card/Internet
• Yahoo Flickr web photo album, alarm clock, calendar, games, music ring tone, etc
• High fidelity full-duplex speakerphone with acoustic echo canceller
• H.264 baseline (with CABAC enhancement pending)
• H.263/H.263+ (pending) video standard at bit rate of 64kbps to 1Mbps, frame rate of up to 30fps and resolution of QVGA/CIF/QCIF
• G.711 (a/u-law), G.722 (wideband), G.723.1, G.729A/B, GSM-FR, G.726-32 (pending) voice codec and AAC, MP3, WMA, Real, Ogg-Vorbis audio codec
• Intuitive graphic user interface with customizable skins, multi-language, multiple virtual screens
• Strong security and privacy protection based on TLS/SRTP/AES

Feature Specifications

Exterior

• Black ABS plastic
• 2-angle stand
• 18 function keys including 4 programmable soft keys
• 5 navigation keys
• Line
• Message
• Phone Book
• Local View
• Transfer
• Hold
• Conference
• Dial/Send, and Speakerphone

Auxiliary Ports

• SD/MMC/SDHC
• USB (2.0)
• Stereo headset with microphone
• Stereo audio output
• TV CVBS output
• optional FXS/FXO port

Virtual Lines

3 individual SIP accounts with “Line” switching button

Network Protocols

• SIP RFC3261
• TCP/UDP/IP
• PPPoE
• RTP/RTCP
• SRTP
• HTTP/HTTPS
• ARP/RARP
• ICMP
• DNS
• DHCP(client)
• NTP/SNTP
• TFTP
• Telnet
• TLS
• UPnP

QoS

• Layer 2 (IEEE 802.1Q/p VLAN tagging)
• Layer 3 QoS (ToS, DiffServ, MPLS)

Security Protection

• SIPS/TLS/SRTP
• AES

NAT Traversal

• Smart NAT traversal technology to allow truly zero-configuration plug-and-play, Support STUN, TURN, and UPnP

Provisioning & Management

• Support TR-069 and Syslog for remote device automated provisioning and monitoring
• Support configuration via LCD, Web browser
• AES encrypted configuration file. Support firmware upgrade via TFTP and HTTP

Video Codec

• H.264 baseline (with CABAC enhancement pending), H.263/H.263+ (pending)
• CIF/QVGA/QCIF resolution, configurable frame rate up to 30 fps, configurable bit rate from 32kbps to 1Mbps Anti-flickering
• Auto focus and auto exposure, zoom (2x optical, 2xdigital)
• PIP (Picture-in-Picture)
• On-Screen-Display
• Audio mute
• Camera Block, Call log
• Video phone book Configurable screen-saver pictures
• Still picture capture/store, visual voice message indicator

Voice Codec

• G.711 (PCMU/PCMA, Appendix I & II)
• G.722 (wideband), G.723.1
• G.729AB
• GSM-FR
• G.726-32 (pending)
