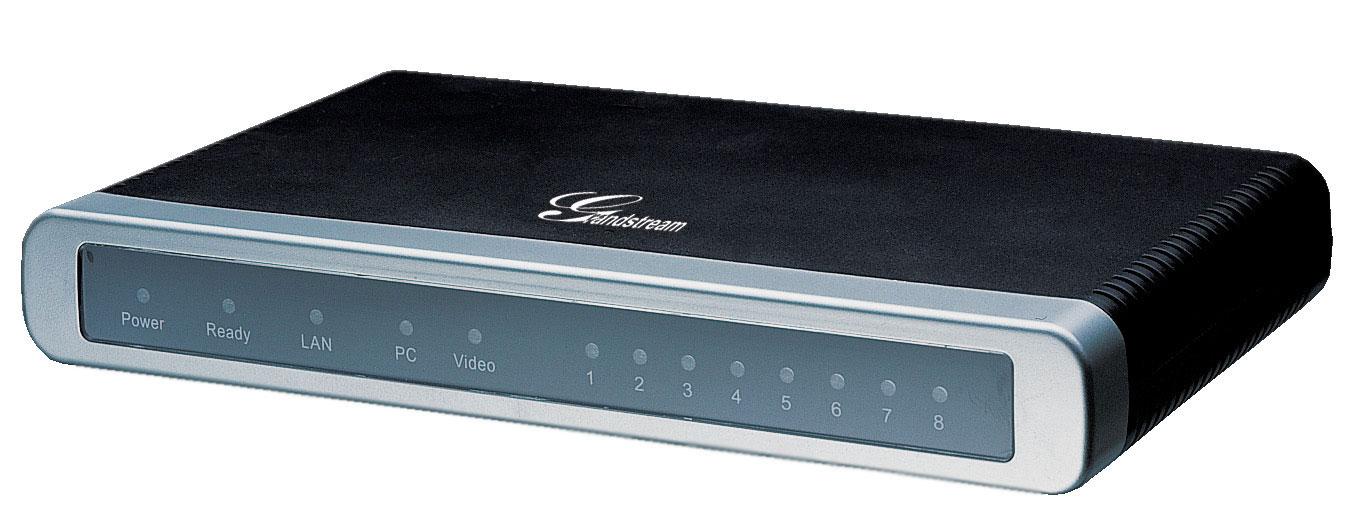

Grandstream GXW-4108

GXW-4108 FXO Analog Gateway

The GXW series offers the small enterprise, SOHO, remote offices and multi-location enterprises a cost-effective, easy to deploy VoIP FXO analog gateway.

Designed and tested for full interoperability with leading IP-PBXs, Softswitches and most SIP-based environments, the GXW technology ensures manageability, a simple configuration, superb voice and video quality and feature rich functionality. The GXW series also offers a video surveillance port and is the only small business gateway in the industry that provides a video surveillance option. GXW Series IP Gateway is based on open industry standards.



Features

• 8-FXO-port media gateways
• Video surveillance port
• Two RJ-45 ports (switched or routed)
• Supports PSTN/PBX analog trunk lines and SIP trunk interface
• Multiple SIP accounts and profiles (3 per system)



Benefits

• Interconnect remote location legacy phone lines across the Internet
• Web management for easy configuration and installation
• Provides fax,voice, video surveillance, and modem support
• Video surveillance port to enhance premise security
• Can be stand-alone gateway for IP Communications

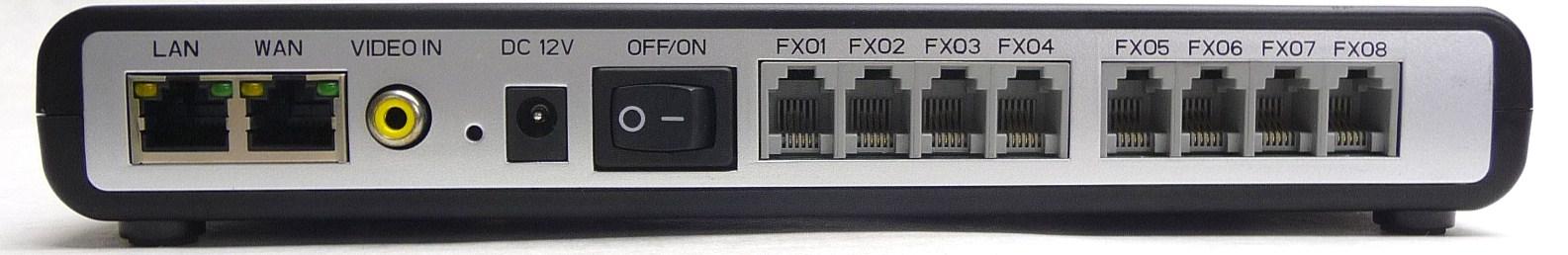

Interfaces

• Voice Port
  • 8ports
• Telephone Interface
  • FXO, RJ11
• Network Interface
  • Dual 10/100 mbps RJ45 prots

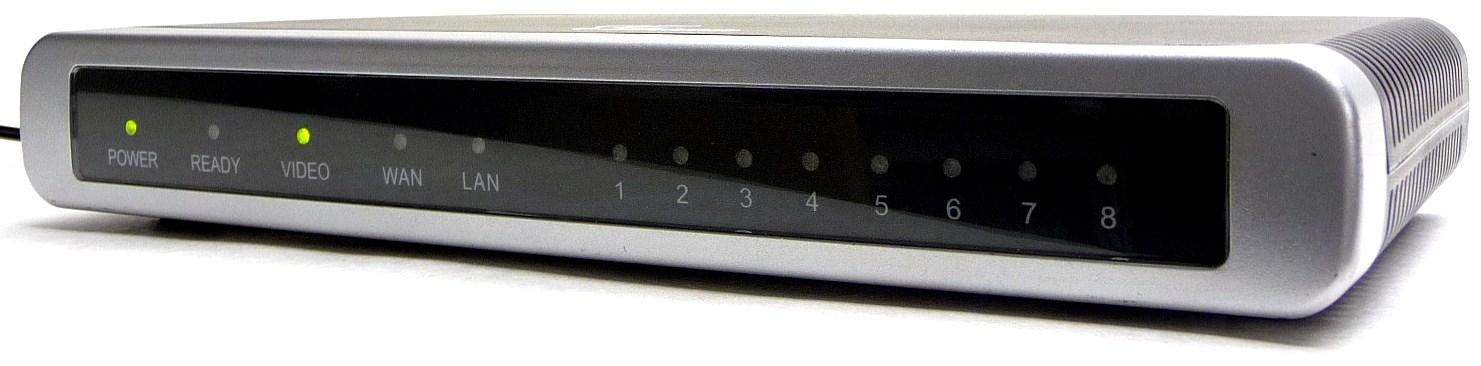

• LED Indicators
  • Power, Video, Network, and Line LEDs
• On/Off Switch



Voice, Fax, Modem, Video Surveillance

• Voice Over Packet Capabilities
  • G.168 Line Echo Cancellation
  • Dynamic Jitter Buffer
  • Modem detection & auto-switch to G.711
• Voice Compression
  • G.711
  • G.723
  • G.729A/B
  • GSM
  • G.726 (pending)
• Video Surveillance
  • real-time base line H.264 (CIF resolution, up to 30fps)
• DHCP Client/Server
  • NAT Router or switched mode
• Fax over IP
  • T.38 compliant Group 3 Fax Relay up to 14.4kpbs
  • Auto switch to G.711 for Fax Pass-Through (pending)
• Qos
  • Diffserve
  • TOS
  • 802.1 P/Q VLAN tagging
• IP Transport
  • RTP/RTP/RTCP
  • PPPoE



Signaling

• PSTN SIgnaling
  • FXO Loop start
• DTMP Method
  • Flexible STMP transmission method
  • User Interface of in-audio
  • RFC2833
• IP Signaling
  • SIP Info
  • SIP (RFC3261)
  • Up to three distict SIP accounts and profiles
• Provisioning
  • TFTP
  • HTTP
  • Round-robin port scheduling to ensure available lines to access PSTN



Security

• Media
  • SRTP (pending)
• Control
  • TLS/SIPS (pending)
• Management
  • SysloG Support
  • HTTPS and telnet (pending)
  • Remote management using Web browser



Physical

• Power
  • Output:12VDC
  • Input:100-240 VAC/50/60 Hz
• Environmental
  • Operational:32-104 Farenheit/ 0-40 Celsius
  • Storage:14-140 Farenheit/-10-60 Celsius
  • HumidityL 10-90% Non-condensing
• Dimensions (LxWxH)
  • 225mm x 135mm x 35mm
• Mounting
  • Rack mount
  • Wall mount
  • Desktop



Additional Features

• Caller ID
  • Bellcore Type 1& 2
  • ETSI, BT, NTT, and DTMF-baseed CID
• Polarity Reversal/Wink



Homologation

• EMC
  • FCC Part 68 & Part 15B, CE (EN55022,EN55024)
• Safety
  • UL

Ships With:

• GXW-4108 Analog IP Gateway
• 12v Universal Power Adapter
• Ethernet Cable
• Quick Installation Guide
• User Manual
