HOMER

HOMER is a robust, carrier-grade, scalable SIP Capture system and Monitoring Application with HEP/HEP2, IP Proto4 (IPIP) encapsulation & port mirroring/monitoring support right out of the box, ready to process & store insane amounts of signaling with instant search, end-to-end analysis and drill-down capabilities for ITSPs, VoIP Providers and Trunk Suppliers using SIP signaling.

Homer can be downloaded & installed from SIP Capture GITHUB Repositories How-to quick install, FAQ and guides for OpenSIPS,Kamailio, Freeswitch and Asterisk

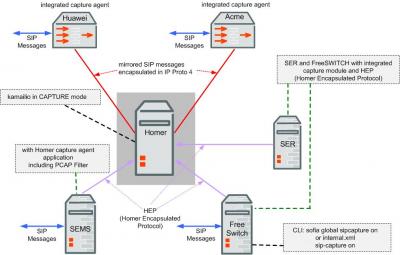

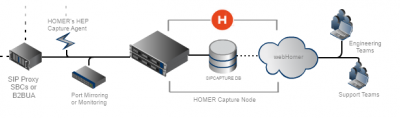

Homer is composed of:

Capture Node(s):

• Collects/indexes mirrored SIP traffic to database
• Based on sipcapture module for industry standard Kamailio/OpenSER/OpenSIPS comes with powerful fine-tuning and filtering options, flawlessly handling millions of packets per hour

Capture Agent(s):

• Captures/forwards packets to capture node
• Native IP Proto 4 support (ACME Packet, Hauwei) and port mirroring/monitoring
• Native capture support in Kamailio/SER & FreeSWITCH, any other supported via Homer’s universal Capture Agent with HEP & Filtering for total flexibility

Webhomer UI:

User interface to Homer capture DB & API Search, filter and display SIP packets and SIP sessions details, Visualize end-to-end Call Flows, extract PCAPs, display traffic & statistics, Multi-user, Access Levels, internal/external authentication (LDAP,Radius) with a fast, drag & drop, customizable Ajax/jQuery dynamic interface

• Thousands of packets/sec
• Multiple database options
• Powerful UI Search/Filter
• Native Call-Flow & PCAP
• Statistic Charts & Analytics
• REST API & Widgets
• Multi-User w/ LDAP, Radius
• Drag & Drop UI
• Firefox, Chrome & IE support
• 100% Open Source
• Daily updates & improvements

WebHOMER 5 ships with a full-featured REST API, enabling applications and scripts developed in any language to interface with Homer SIP capture database and extract the same detail of information available using the user interface in real-time as JSON and XML for post-processing, storage or visualization
