Linksys WIP310

---

General Description

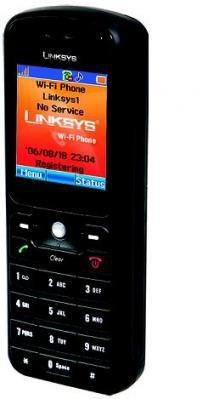

The Linksys WIP310 phone is a ‘candybar’ style SIP WiFi phone that supports 802.11b/g as well as WEP/WPA/WPA2/TKIP/SES network encryption. There are two ports: a headset port, and a USB port (mini-b style) that acts as a charger port.
The phone is derived from an earlier model, the WIP300.

---



Features at a Glance

Feature	Support
802.11b WiFi	Yes
802.11g WiFi	Yes
10/100/1000BaseT physical connection	No, only wireless
Cellular/dual-use	No, only VoIP
Skype Support	No (try the WIP-320)
NAT Traversal Support	Yes, stun
Send/Receive Email	Yes, but cumbersome
Charge from AC	Yes, using provided AC adapter
Charge from USB	Yes, but cable not included
USB communication interface	No, only for charging (perhaps future comm support?)
Bluetooth Support	No
Web Config Interface	Yes
Built-in Camera	No

---

FAQ

Q. Can the phone charge over USB using a regular USB cable connected to a computer, laptop, or powered hub?
A. The phone is chargeable via a USB cable connected to a powered-on desktop or laptop.

Q. How long does the battery last?
A. 50 hours standby or 3 hours talk

Q. Does this phone handle stun? turn/ice?
A. The phone works fine behind NAT using STUN. It does not implement ICE/TURN.

Q. Does this phone support Bluetooth headsets?
A. No

Q. How easily configurable is the phone?
A. The menus are easy to navigate, although using the keypad can be a bit cumbersome. There is a web interface that can make bulk changes easier.

---

Specifications

Model	WIP310
Standards	802.11b, 802.11g
Band	2.4GHz
Transmit Power	12.5 dBm for 802.11g / 16.6 dBm for 802.11b
Radio Range	Out-door up to 200m, In-door up to 75m via Embedded Antenna
External interface	One USB 1.1 port, 2.5m Standard 4 Segment Ear Phone Jack
Display	1.8 inch TFT, LCD (128 x 160 pixels) with 65K colors
Memory	32MB NAND Flash + 32MB SDRAM
WiFi Account Support	Multiple access point registration support
Network Protocols	TCP/UDP/IP, IPV4, DNS, SDP, ARP, ICMP, DHCP Client, Static IP, PPPoE
Security	WEP, WPA,WPA2,TKIP
Voice Protocols	SIP v2 Session Initiation Protocol (RFC3261)
Device Dimensions	1.77” x 4.65” 0.81” (W x H x D) 45 x 118 x 20.47 mm
Weight	0.22 lb (0.1 kg)
Power	900mAh Li-ion battery, AC Adapter
Certification	FCC, CE, IC, UL
Operating Temperature	0 to 40 ºC (32 to 104 ºF)
Storage Temperature	-20 to 65 ºC (-4 to 149 ºF)
Operating Humidity	10 to 80% relative humidity, non-condensing
Storage Humidity	10 to 95% non-condensing

Feature List

• SIP Session Keep Alive
• Multiple SIP Account Support
• Voice Codec’s G.711, G.726, G.729, G.723 CODEC support
• DTMF Transmission In-band, out-band (RFC2833)
• Minimum Requirements
  • Internet Connection (cable/DSL/other)
  • Wireless Router / Access Point with DHCP server
  • Activated VoIP Service
• Package Contents
  • Handset
  • USB Power Adapter
  • Li-ion Battery
  • Quick Install Guide
  • User Guide on CD-ROM
• Voice Quality G.168 Echo cancellation
• Jitter buffer control
• Comfortable Noise Generation, (CNG)
• Handsfree speaker
• Speaker and microphone volume control
• Silence suppression
• Voice Activity Detection (VAD)
• Telephony and 3-way conference call
• Supplementary Services Call hold and resume
• Caller ID presentation
• Dial by phone number
• Call forward
• Call transfer
• Call waiting and retrieve
• Mute
• Speed dial
• Last number redial
• Direct IP dialing
• DTMF tone detection and generation
• Volume control
• Vibrator (silent mode)
• Password security
• Phone book (200 records)
• Call history (20 records)
• POP3/SMTP e-mail access (optional)
• Ringtones: polyphonic (MIDI)
• Downloadable and selectable wallpaper
• Language – English
• Management features AES encryption
• Embedded web configuration interface (with password protection)
• Firmware upgrade through HTTP over WiFi
• Auto-provisioning via TFTP/HTTP/HTTPS
• Multiple-profile provisioning
• Remote software upgrade via WLAN
• Configuration recovery
• Secure Easy Setup (SES) configuration
