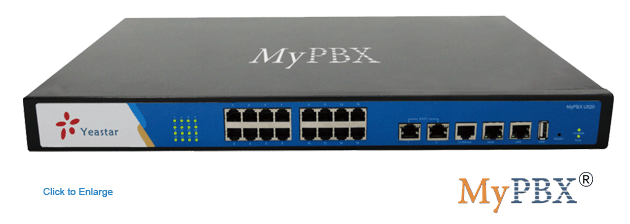

MyPBX U520

The Powerful Alternative for Enterprise!

MyPBX U520 is an enterprise-grade solution designed for offices of up to 300 users, supporting up to 60 concurrent calls. It boasts to have 2 embedded PRI (E1/T1/J1) ports and 16 phone ports for PSTN, ISDN BRI and GSM/UMTS connectivity. Thus U520 couples VoIP with traditional telephone lines offering scalability, high availability, cost saving, and simplified support and maintenance.

Specification:

Users: 500
Concurrent Calls: 80
Voicemail: Default 3000min (upgradable)
Auto-Recording: Support
Hard Disk: Support 2.5 inch SATA2 (Optional)

Interface:
Two E1/T1/J1 ports (Support PRI,MFC R2,SS7)
Up to 16 Analog Ports (FXO/FXS)
Up to 8 GSM Ports (Quad-Band GSM/GPRS850/900/1800/1900MHz)
Up to 8 UMTS Ports (UMTS 900/2100MHz or 850/2100MHZ or 850/1900MHZ)
Up to 8 BRI Ports
One RS232 Port
LAN: 1 (10/100/1000Mbps)
WAN: 1 (10/100/1000Mbps)
USB: 1 (USB2.0)

Size: 438x280x44 mm (1U Rack-Mount)
Weight: 3.4kg
Power Supply: AC 100-240V 50/60Hz 1.5A MAX

SIP Protocol: SIP(RFC3261), IAX2
Transport Protocol: UDP,TCP,TLS,SRTP
Codec: G.711, GSM, SPEEX, G.722, G.726, ADPCM, G.729 A, H261,
H263,H263p, H264 ,MPEG4.
DTMF: Inband, RFC2833, SIP INFO
Echo Cancellation: Supported
LED: Red for FXO/GSM/UMTS, Orange for BRI, Green for FXS
Network: Static IP, PPPoE, DHCP, Firewall, VLAN, DDNS, QoS,
DHCP Server,OpenVPN
Multiple Languages Support:
Chinese, Dutch, English, French, German, Hebrew, Korean, Italian,
Polish,Portuguese, Romanian, Russian, Spanish, Thai, Turkish

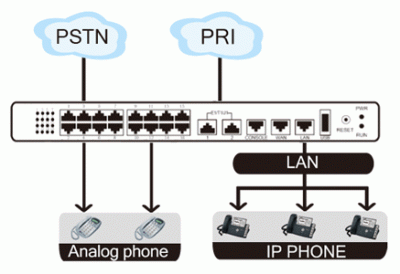

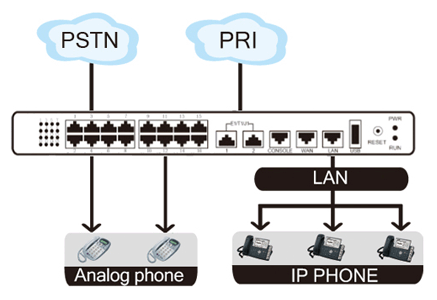

Flow Chart

Features:

Attend Transfer
Blind Transfer
BLF Support
Blacklist
Callback
CDR (Call Detail Records)
Call Forward
Call Parking
Call Recording
Call Pickup
Call Routing
Call Transfer
Call Waiting
Caller ID
Conference
Define Office Time
DDNS
Dial by Name
DISA (Direct Inward System Access)
DIDs
Distinctive Ringtone
DND (Do Not Disturb)
FAX (T.38)
Firewall
Follow Me
IVR (Interactive Voice Response)
Intercom/Zone Intercom
Mobility Extension
Multi-language Prompt
Music On Hold
Music On Transfer
One touch record
OpenVPN
Phone Provisioning
PIN User ( PIN Code Control)
Paging/Zone Paging
PPPoE
Queue
Redundancy
Ring Group
Route by Caller ID
Skype Integration (Skype Connect)
SMS to Mail/Mail to SMS
Speed Dial
Three Way Calling
Voicemail
Voicemail to Email
Voicemail Forwarding
Web Based Control Panel
Spy functions (Normal Spy, Whisper Spy, Barge Spy)
