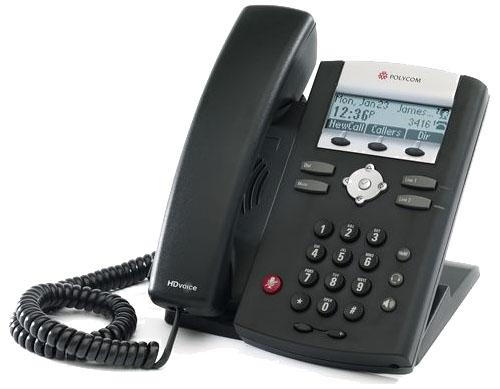

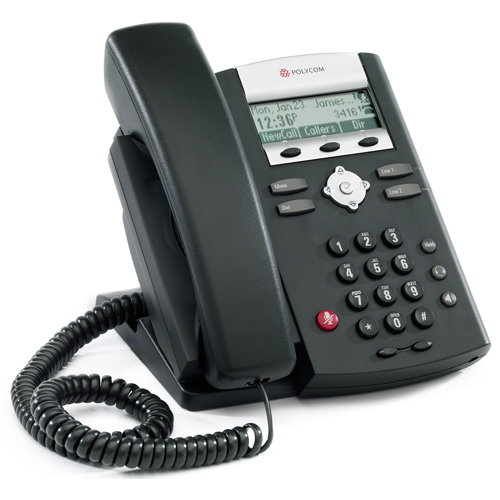

Polycom SoundPoint IP 335

The Polycom® SoundPoint® IP 335 phone is designed to bring a high-quality, cost effective
solution to cubicle workers/call center operators through advanced telephony features and
HD Voice technology, making voice communication more clear and productive. Utilizing its
high resolution backlit display, RJ-9 headset port, and Polycom HD Voice technology, the
SoundPoint IP 335 phone delivers a business grade telephony endpoint at an entry-level
price.

Features

Unsurpassed Voice Quality and Clarity

With a best-in-class design for high-fidelity voice reproduction, the SoundPoint IP 335 also
incorporates wideband audio for over twice the voice clarity of standard phones. Patented
Polycom Acoustic Clarity™ technology provides crystal-clear, noise- and echo-free audio,
while hold, pick-up, transfer, and three-way local conferencing features make managing
calls simple and intuitive. Capabilities such as shared call/bridged line appearance, builtin
xHTML microbrowser, and a RJ-9 headset port extend functionality for more advanced
requirements.

Polycom Powers Smarter Conversations

The SoundPoint IP 335 is a key element in a broader Polycom portfolio of best in class
solutions and services for voice, video, telepresence, and collaboration infrastructure. As a
global leader in open standard Unified Communications (UC) solutions, Polycom’s awardwinning
IP telephony and conferencing solutions make it easy for people to interact and
maximize productivity over any network, in just about any environment, anywhere around the
globe. That’s why more organizations worldwide choose Polycom to enable UC everywhere.

Lines (Direct Numbers)

• Up to 2 lines with up to 8 simultaneous calls total

Display

• 102 x 33 pixel backlit grayscale graphical LCD
• LED backlight with custom intensity control
• Message Waiting Indicator (MWI) LED

Feature Keys

• 3 context-sensitive “soft” keys
• 2 line keys with bi-color (red/green) LED
• 2 feature keys (“Menu” and “Dial”)
• 4-way navigation key cluster with center “Select” key
• 2 volume control keys
• Dedicated hold key
• Dedicated headset key
• Dedicated hands-free speakerphone key
• Dedicated microphone mute key
• Optional Messages Key

Headset and Hearing Aid Compatibility

• Dedicated RJ-9 headset port
• Compliant with ADA Section 508 Recommendations: Subpart B 1194.23 (all)
• Hearing Aid Compatible (HAC) handset for magnetic coupling to TIA 504-A and ITU P.370 standards
• Compatible with commercially available TTY adapter equipment

Audio Features

• Polycom HD Voice technology delivers life-like voice quality for each audio path – the handset, the hands-free speakerphone and the optional headset1
• Full-duplex hands-free speakerphone
• Type 1 compliant with IEEE 1329 full duplex standards
• Codecs: G.722 (wideband), G.711 µ/A, G.729A (Annex B) and iLBC
• Individual volume settings with visual feedback for each audio path
• Voice activity detection
• Comfort noise fill
• DTMF tone generation/DTMF event RTP payload
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• Acoustic echo cancellations
• Background noise suppression

Call Handling Features

• Shared call/bridged line appearance
• Busy Lamp Field (BLF)
• Flexible line appearance (one or more line keys can be assigned for each line extension)
• Distinctive incoming call treatment/call waiting
• Call timer
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Local three-way conferencing
• One-touch speed dial
• Call waiting
• Remote missed call notification
• Intercom
• Automatic off-hook call placement
• Do not disturb function

Other Features

• Interoperability with Microsoft® LCS 2005 for telephony and presence
• Compatibility with Microsoft Office Communicator and Windows® Messenger 5.1 Clients
• Enabled for Polycom Productivity Suite
• Local feature-rich GUI
• Time and date display
• User-configurable contact directory and call history (missed, placed and received)
• Wave file support for call progress tones
• Unicode UTF-8 character support. Multilingual user interface encompassing Danish, Dutch, English (Canada/US/UK), French, German, Italian, Norwegian, Polish, Russian, Slovenian, Spanish, Swedish

Protocol Support

• IETF SIP (RFC 3261 and companion RFCs)

Network and Provisioning

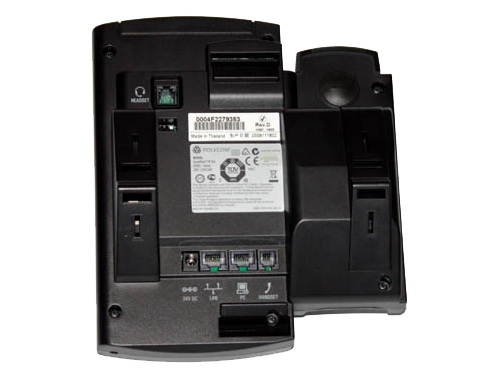

• Two 10/100 Mbps Ethernet ports
• Manual or dynamic host configuration protocol (DHCP) network setup
• Time and date synchronization using SNTP
• FTP/TFTP/HTTP/HTTPS server-based central provisioning for mass deployments
• Provisioning and call server redundancy supported
• Web portal for individual unit configuration
• QoS Support – IEEE 802.1p/Q tagging (VLAN), Layer 3
• TOS and DSCP
• Network Address Translation (NAT) support for static configuration and “Keep-Alive” SIP signaling
• RTCP support (RFC 1889)
• Event logging
• Syslog
• Local digit map
• Hardware diagnostics
• Status and statistics reporting

Security

• Transport Layer Security (TLS)
• Secure Real-time Transport Protocol (SRTP)
• Encrypted configuration files
• Shipped with X.509 certificate installed
• Digest authentication
• Password login
• Support for URL syntax with password for boot server
• HTTPS secure provisioning
• Support for signed software executables

Power

• Built-in, auto-sensing IEEE 802.3af Power Over Ethernet (Class2)
• External universal input AC adapter (optional4; 24V DC@500mA)

Approvals

• FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55022 Class B
• CISPR22 Class B
• AS/NZS CISPR22 Class B
• VCCI Class B
• EN55024
• CE
• RoHS Compliant
• GOST-R
• A-Tick
• C-Tick
• KCC
• ANATEL
• NZ Telepermit
• TRA

Safety

• IEC60950-1
• EN60950-1
• UL60950-1
• CAN/CSA C22.2 No.60950-1-03
• AS/NZS 60950-1

Operating Conditions

• Temperature: 0 to 40 °C (+32 to 104 °F)
• Relative Humidity: 5% to 95%, non-condensing

Storage Temperature

• -40 to +70 °C (-40 to +160 °F)

SoundPoint IP 335 Comes With:

• SoundPoint IP 335 console
• Handset with handset cord
• Base stand
• Network (LAN) cable
• Quick Start Guide
• Product registration card

Size

• 6.7 in x 5.7 in x 6.9 in
• (17 cm x 17 cm x 17.5 cm)

Weight

• Phone weight: 1.9 lb (0.861 kg)5

Part Numbers /UPC Codes

• 2200-12375-025/610807694670 for all markets

Unit Box Dimensions / Weight

• 10 in x 4.2 in x 11.6 in (W x H x D)
• (25 cm x 10.5 cm x 29.5 cm)
• 2.9 lbs (1.3 kg)5

Master Carton Quantity

• Ten

Country of Origin

• Thailand

Warranty

• 1 Year
