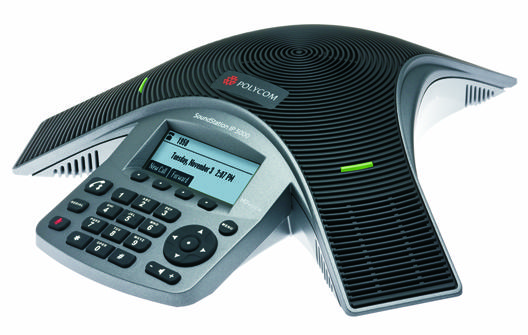

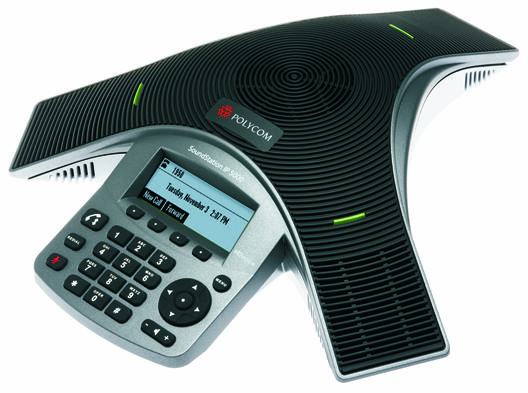

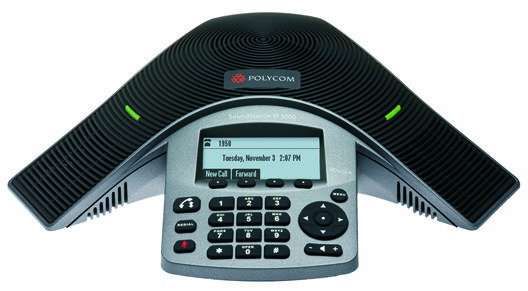

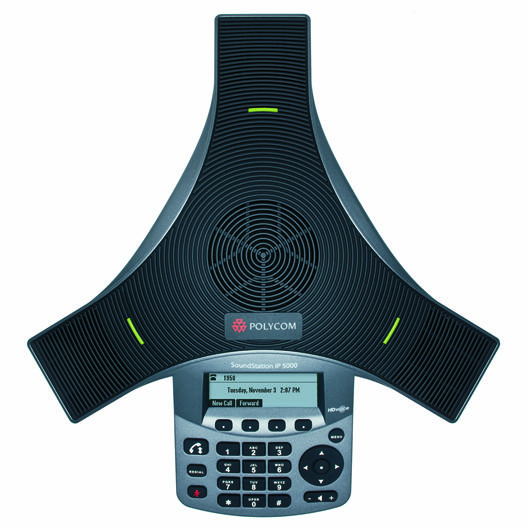

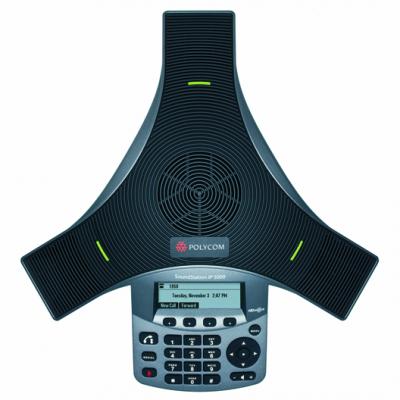

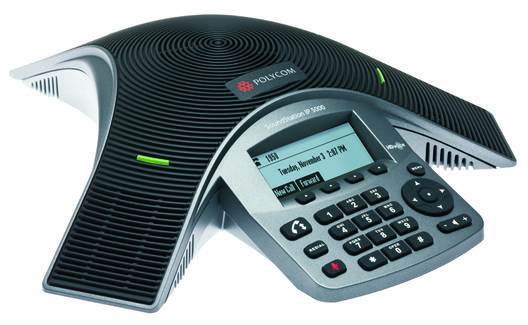

Polycom SoundStation IP 5000

The Polycom® SoundStation® IP 5000 conference phone delivers remarkably clear conference calls for small conference rooms and executive offices. It
features Polycom HD Voice™ technology, broad SIP interoperability, and a modern design that is ideal for smaller rooms-all at an affordable price.

With Polycom HD Voice technology, the SoundStation IP 5000 conference phone boosts productivity and reduces listener fatigue by turning ordinary
conference calls into crystal-clear, interactive conversations. It captures both the deeper lows and higher frequencies of the human voice for conference
calls that sound as natural as being there.

For all calls, the SoundStation IP 5000 conference phone delivers advanced audio performance that is designed for executive offices and smaller
conference rooms with up to 6 participants. From full-duplex technology that eliminates distracting drop-outs to the latest echo cancellation
advancements, only Polycom can deliver a conference phone experience with no compromises. Conference calls are made more productive and
efficient by three sensitive microphones with 360 ° coverage that allow users to speak in a normal voice and be heard clearly from up to 7 feet away. The
phone also features technology that resists interference from mobile phones and other wireless devices, delivering clear communications without distractions.

The SoundStation IP 5000 leverages Polycom’s strong history in both conference phone and VoIP technology to deliver the most robust standardsbased
SIP interoperability in the industry. It shares the same SIP phone software base with Polycom’s award-winning SoundPoint IP products-the
most comprehensive, reliable and feature-rich SIP products in the industry with proven interoperability with a broad array of IP PBX and hosted platforms.

Robust provisioning, management, and security features make Polycom’s family of IP conference phones the only choice for meeting rooms in SIPbased
environments. Integrated Power over Ethernet (PoE) simplifies setup, with an optional AC power kit available for non-PoE environments. Plus, the
SoundStation IP 5000 conference phone includes a high-resolution backlit display for vital call information and multi-language support.

Key Features

Power

• IEEE 802.3af Power over Ethernet (built in)
• Optional external universal AC powersupply kit: 100-240V, 0.4A, 48V/19W

Display

• Size (pixels): 248 x 68 (W x H)
• White LED backlight with custom intensity control

Keypad

• Standard 12-key keypad
• Context-dependent soft keys: 4
• On-hook/Off-hook, redial, mute, volume up/down
• 5-way navigation
• Menu

Audio Features

• Loudspeaker
• Frequency: 250 – 7,000 HZ
• Volume: Adjustable to peak volume 84 dB at 1/2 meter distance
• Voice activity detection
• Comfort noise fill
• DTMF tone generation / DTMF event RTP payload
• Low-delay audio packet transmission
• Adaptive jitter buffers
• Packet loss concealment
• Acoustic echo cancellation
• Background noise suppression
• Supported Codecs
• G.711 (A-law and µ-law)
• G.729a (Annex A, B)
• G.722
• iLBC

Call Handling Features

• Shared call / bridged line appearance
• Busy Lamp Field (BLF)
• Distinctive incoming call treatment / call waiting
• Call timer
• Call transfer, hold, divert (forward), pickup
• Called, calling, connected party information
• Advanced Local three-way conferencing(conference, join, split, hold, resume)
• One-touch speed dial, redial
• Call waiting
• Remote missed call notification
• Automatic off-hook call placement
• Do not disturb function

Other Features

• Local feature-rich GUI
• Time and date display
• Corporate Directory Access (search, dial,save to local directory)
• Convenient volume adjustment keys
• User-configurable contact directory and call history (missed, placed, and received)
• Customizable call progress tones
• Wav file support for call progress tones
• Unicode UTF-8 character support.
  • Multilingual user interface encompassing Simplified Chinese, Danish, Dutch, English (Canada / US / UK), French, German, Italian, Japanese, Korean,Norwegian, Polish,Portuguese, Russian,Slovenian, Spanish, Swedish

Network and Provisioning

• Ethernet 10/100 Base-T
• IP Address Configuration: DHCP and Static IP
• Time synchronization with SNTP server
• FTP / TFTP / HTTP / HTTPS server-based central provisioning for mass deployments.Provisioning server redundancy supported.
• Web portal for individual unit configuration
• QoS Support — IEEE 802.1p/Q tagging (VLAN), Layer 3 TOS and DSCP
• Network Address Translation (NAT)support – static
• RTCP support (RFC 1889)
• Event logging
• Local dial plan
• Hardware diagnostics
• Status and statistics
• User selectable ringer tones
• Field upgradeable

Security

• Transport Layer Security (TLS)
• Encrypted configuration files
• Digest authentication
• Password login
• Support for URL syntax with password for boot server
• HTTPS secure provisioning
• Support for signed software executables

Safety

• CE Mark
• EN60950-1
• IEC60950-1
• UL60950-1
• CAN/CSA C22.2 No.60950-1-03
• AS/NZS60950-1
• RoHS Compliant

EMC

• FCC Part 15 (CFR 47) Class B
• ICES-003 Class B
• EN55022 Class B
• CISPR22 Class B
• AS/NZS CISPR22 Class B
• VCCI Class B
• EN22024

Protocol Support

• IETF SIP (RFC 3261 and companion RFCs)

Product Ships With

• Conference Phone Console
• 25 foot Ethernet cable
• Quick Start Guide

Optional AC Power Kit Ships With

• Universal Power Supply
• 7 foot region-specific power cord
• Power Insertion Cable

Environmental Conditions

• Operating temperature: 41 – 104 degrees F(5 – 40 degrees C)
• Relative humidity: 20% – 85% (noncondensing)
• Storage temperature: -22 – 131 degrees F(-30 – 55 degrees C)

Warranty

• 1 year

Country of Origin

• China

Phone Dimensions

• 11.4 x 10.6 x 2.6 in ( 28.5 x 26.5x 6.5 cm)(L x W x H)

Phone Console Weight

• 1.14 lb (0.52 kg)

Box Dimensions

• 14.88 x 11.76 x 3.8 in (37.2 x 29.4 x 9.5 cm)(L x W x H)

Box Weight

• 2.99 lb (1.36 kg)
