Sangoma A200

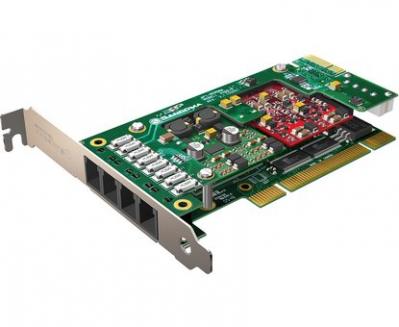

Sangoma A200 2 – 24 Port Scalable FXO/FXS

Superior audio quality in a card that is expandable from two to twenty-four ports in a 2U form factor-the Sangoma A200 FXO/FXS card delivers!

For optimum echo-cancelled voice quality and enhancement choose the A200D model with echo cancellation hardware. One DSP echo canceller on the A200D base card will support telco-grade hardware echo cancellation on all channels up to the card’s maximum configuration in 24 ports with no additional CPU load. To reach this configuration, simply add additional Remora™ cards to any base card in the A200 Series. A single PCI or PCI Express slot hosts the connection and ensures common synchronous clocking for all channels.

Like all the cards in the award-winning Sangoma AFT series product line, the A200 and Remora™ system’s architecture is shared with Sangoma’s A101, A102, A104, and A108 cards, ensuring common 3.3 V or 5 V, high performance, universal
PCI or PCI Express compatibility, and crash-proof field upgradable firmware to take advantage of enhancements, as soon they become available.

Sangoma cards guarantee error-free faxing and click-free audio on analog-digital links.

Technical Specifications

From 2 to 24 ports supported, mixing FXO and FXS interfaces, as required
Support for Asterisk®, FreeSwitch™, and Yate as well as other Open Source and proprietary PBX, Switch, IVR, and VoIP gateway applications
Single synchronous PCI interface for all 24 FXO/FXS ports
Four RJ11 connections per Remora™ card
Dimensions: 2U Form factor: 120 mm x 55 mm for use in restricted chassis; includes both standard and short 2U compatible mounting clips for installation in 2U rack-mount servers
32 bit bus master DMA data exchanges across PCI interface at 132Mbytes/sec for minimum host processor intervention
Autosense compatibility with 5 V and 3.3 V PCI busses
Fully PCI 2.2 compliant, compatible with all commercially available motherboards, and proper sharing of PCI interrupts
Intelligent hardware: Downloadable Field Programmable Gate Array programming with multiple operating modes;field upgradable so that new features can be added when they become available
Maximum operational power for PCI: 3.75 W (0.75 A @ 5 V) + 4.2 W (0.35 A @ 12 V) per FXS module For PCI Express: 2.64 W (0.8 A @ 3.3 V) + 4.2 W (0.35 A @ 12 V) per FXS module
Temperature range: 0 – 50 °C
Shipped with standard RJ11-terminated cables

Get the Fax on Sangoma Hardware

With Sangoma, there is no need for a separate analog line to run your fax machine

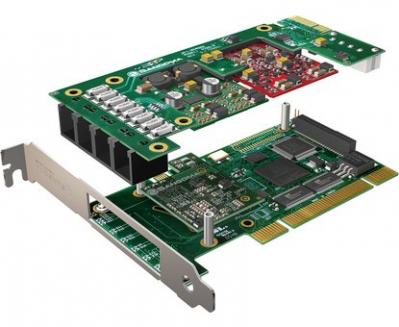

Using T1/E1 passthrough with Sangoma analog cards, there are no clock slips, buffer overruns, or transmit underruns that cause missed lines, blank sheets, and missed pages when faxing A200 4-Port FXO/FXS, shown with hardware echo canceller, disassembled
Sangoma A200 and A400 cards synchronize perfectly with digital T1/E1 cards and the PSTN atomic clock for error-free fax and modem passthrough and superior voice quality over T1 and E1 lines*

Optional: DSP Echo Canceller Daughterboard on the A200D

G.168-2002 echo cancellation in the hardware
1024 taps/128 ms tail per channel on all channel densities
DTMF decoding and tone recognition
Voice quality enhancement: music protection, acoustic echo control and adaptive noise reduction
No CPU load as a result of echo cancellation
Does not increase the physical size of the card, and no additional slot is required

Wiring Connections

The A200 and Remora™ cards incorporate 4-pin RJ11/4 narrow jacks, such as those used in telephone handsets.
Each Sangoma A200 Card is shipped with four 2 m cables terminating in a narrow RJ11/4 plug at one end and a telephone-standard RJ11/6 plug at the other.
To hardwire the A200 system, you can purchase a kit of 12 RJ11/4 plugs and a crimping tool, sold separately.

Operating Systems

Windows® 2003
Windows® XP
Windows® Server 2008
Windows® Vista
Windows® 7
Linux (all versions, releases and distributions from 1.0 up)

Diagnostic Tools

WANPIPEMON
SNMP
System logs

Certification

FCC Part 15 Class A, FCC Part 68, EN 55022 Class A, JATE
Technical certifications in Russia and Malaysia

Architecture

The A200 consists of a Remora™ daughterboard mounted on the AFT PCI card.
The Remora card has two sockets each of which can accept a FXO-2 or FXS-2 module.
Each FXO-2 or FXS-2 module supports two FXO or FXS lines, respectively.
Up to five additional Remora™ daughterboards can be mounted in empty slot positions beside the A200 assembly, connected to the A200 by a backplane bus connector.

Warranty

Lifetime warranty on parts and labour.
Plus a 30-day-noquestions-asked return policy.

Production Quality

ISO 9002
