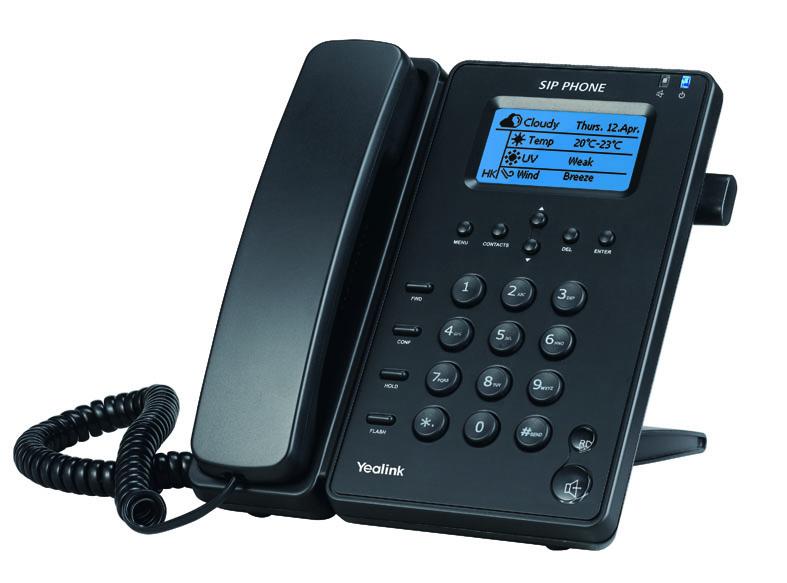

SIP-T10

SIP-T10 Brochure Download:

Key Features

• Value-Added services: online advertisement, SMS, and voice mail etc.
• Billing function and Language Customization.
• Remote Maintenance: phone can be diagnosed and configured by remote.
• Centralized Management: dial plan and phone book can be centrally managed, ideal for IP PBX.
• Zero Config: automated provisioning and software upgrading even through firewall/NAT.

Note: these functions are available if the service provider supports them.

Network feature:

• Supports SIP 2.0(RFC3261) protocol.
• Supports NAT transverse: STUN mode.
• IP Assignment: Static IP/ DHCP/PPPoE.
• Supports in-band DTMF and out-of band RFC2833 DTMF.
• Supports Proxy mode and peer-to-peer SIP link mode.
• Supports standard encryption and authentication(MD5 and MD5-sess).

Voice feature:

• High voice quality: stable and crystal clear voice quality due to GIPS technique.
• Voice Codec: G.711A/U, G.729AB, G.726, iLBC or G.723.
• Supports VAD, CNG, EC, NLP, AGC and Volume adjustment.

Phone feature:

• Call hold, call waiting, call forward, call transfer and 3-way conference.
• Supports Caller ID/Name display and DND.
• Speaker Phone, Phone Book, Speed Dial, Flash, Volume Adjustment, Rings Selection.

Other feature:

• PoE Optional.
• Can be configured through web browser, console/telnet, keypad or remote.
• Firmware can be upgraded through HTTP, FTP or TFTP.
• Built-in router, NAT, supporting bridge and router model.
• The adjustable stand makes LCD review more comfortable

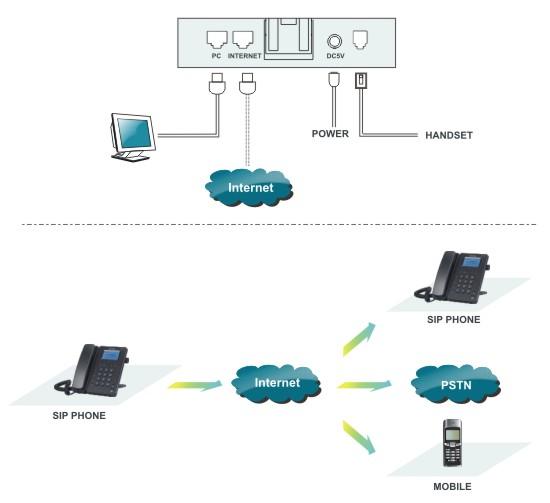

Application

Package features

A Simple Table

Items	Number
Device	1
Power Adaptor	1
User Manual	1
CD	N/A
Ear Phone	N/A



Packing Details

Items	Details
Unit weight(kg)	1.243
N.W/CTN(kg)	6.22
W/CTN(kg)	7.02
PCS/CTN	5
carton Meas.(mm)	480*305*240
