SIP-T9CM

SIP-T9CM Brochure Download:
Ideal for ITSPs, SMB and home users!

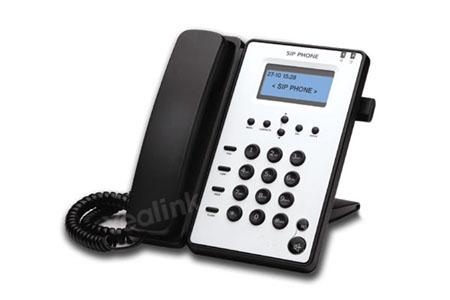

Yealink SIP-T9CM is a feature-rich, cost-effective SIP phone specially designed for ITSPs, small to medium businesses and residential applications. It supports 3 user accounts, auto-provision and PoE as well as zero configuration and easy maintenance. As the basic model of the Yealink SIP phones, SIP-T9CM offers high quality audio, a broad range of voice codes and rich telephone features to general level users. Due to its excellent cost-performance ratio and high performance, it is absolutely a good choice for you!　

Network Features

• SIP v1(RFC2543), v2(RFC3261)
• Registrar Server: 3 SIP user accounts
• Power over Ethernet optional
• Outbound Proxy mode
• Peer-to-peer SIP link mode
• TFTP/DHCP/PPPoE Client
• Telnet/HTTP Server
• DNS Client
• NAT/DHCP Server
• QoS

Voice Features

• G.711, G.723.1 or iLBC, G.726, G.729AB and GSM
• VAD, CNG, AEC
• Packet Loss Compensation
• Adaptive Jitter Buffer

Telephony Features

• Call Hold
• Call Waiting
• Call Transfer
• Call Forward
• Caller ID
• Call List
• Redial and Flash
• Speed Dial
• Phone Book
• Volume Adjustment
• Ring Tone Selection
• 3-way Conference
• Speakerphone

Configuration

• Web Browser
• Console/Telnet
• Keypad
• Auto-provision

Firmware Upgrade

• TFTP
• Console
• HTTP
• Auto-provision

Dial Method

• Direct IP call without SIP proxy
• Dial number via SIP server
• Dial URL via SIP server

DTMF Function

• In-Band DTMF
• Out-of-Band DTMF
• SIP Info

IP Assignment

• Static IP
• DHCP
• PPPoE

NAT Traversal

• STUN
• UPnP

Security

• HTTP 1.1 basic/digest authentication for Web setup
• MD5 for SIP authentication (RFC 2069/RFC 2617)

Physical Features

• LCD: dual rows display, 2*16 dots
• LEDs: Blue lights for Power and Hand free
• Interface: 2* RJ45 10/100M ports
• Tiltable Stand: 30 °/ 45 °/60 °
• Dimension: 185*200*90mm
• Weight: 0.77kg
• Power adapter: Input: AC 100~240V
• Output: DC 5V/1A
• Operating humidity: 10~95%
• Storage temperature: up to 60℃
