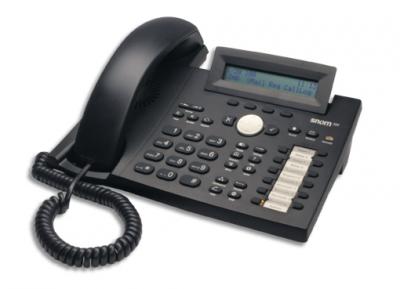

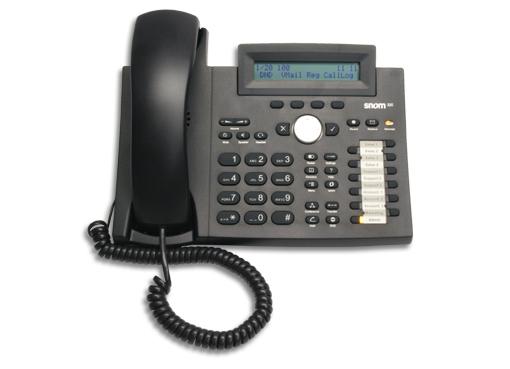

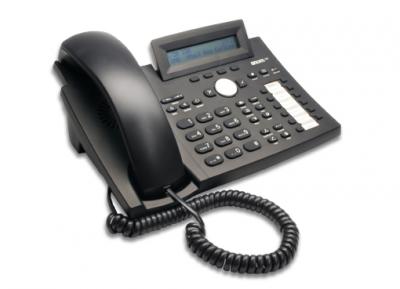

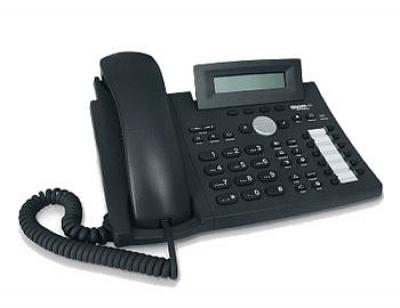

Snom 320 2-Line SIP based IP phone

Ideal for the office and everyone who makes a lot of calls, the snom 320 is an affordable, yet powerful SIP business telephone with built-in full duplex speakerphone and three-party conference bridging.

How does it work?
Hailing from Germany, Snom is fast gaining ground in the SIP marketplace. Snom phones offer excellent interoperability with Asterisk Open Source PBX, Trixbox, PBXnSIP and other SIP based platforms.

The Snom 320 is Snom’s mid-level, SIP based IP phone. For under $200, you get an LCD display and programmable function keys, dual onboard ethernet ports, PoE multiple line appearances, full duplex speakerphone and a range of codec support.

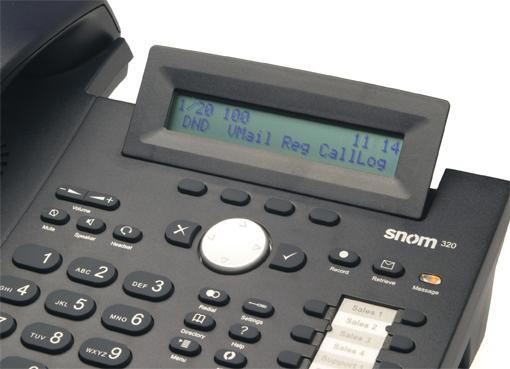

A 2 x 24 semi-graphical LCD display and a menu-driven user interface supports easy feature management.

12 programmable keys with LEDs support flexible identity access/key configuration. A 100 number call
memory, a 100 entry onboard address book (to which data may easily be uploaded),custom call blocking, configurable/ downloadable ringtones,auto-answer mode, DND and other sophisticated features ensure convenience and productivity. And the snom 320’s built-in web server supports even simpler end user configuration,screen dialing, and access to call history.

The snom 320 is remote-manageable and firmware- upgradable, uniquely easy to install, and largely self-configuring.
Broad codec support and full compatibility with current SIP recommendations ensure interoperability;support for STUN (NAT traversal),ENUM (for dialed-number resolution) and other state-of-the-art features enables flexible deployment behind local proxies, IP PBXs or hosted VoIP services.

The snom 320 supports the security standard SRTP – a current specification from the Internet Engineering Task Force (IETF) for protection against eavesdropping – and TLS for protection against sniffing of signaling and authentication data.

By limiting the need for external conference bridges/media server capacity or use of conference services for routine multiparty calls, the snom 320’s built-in three-party conference bridge helps limit total cost of ownership, while also ensuring high

Highlights

Tiltable semi- graphical two-line display
47 keys, 13 LEDs
12 programmable function keys
Speakerphone
2 x IEEE 802.3 10/100 Mbps switch
Power over Ethernet
Headset connection
SIP RFC3261
Security: SIPS/SRTP, TLS
STUN, ENUM, NAT, ICE,IEEE 802.1X
Codecs: G.711, G.729A, G.723.1,G.722, G.726, GSM 6.10 (full rate)
National language support
XML driven mini browser
Very low energy consumption
Expansion module available
Unified Communications ready

General Features

Dimensions: approx. 25 x 20 x 12 cm
Weight: approx. 920 g
Certifications: FCC Class B, CE Mark
Power consumption: 2.1 – 2.4 watts

Connectors

1 x LAN, 1 x PC: RJ45 (Ethernet)
Power: 5 V DC
Ethernet: 2 x IEEE 802.3 10/100 Mbps switch
Power over Ethernet: IEEE 802.3af, Class 1
Handset: RJ-4P4C connector
Headset: RJ-4P4C connector
Expansion Module: Proprietary snom connector

User Interface

2 x 24 character, tiltable semi-graphical display with backlit
47 keys, 12 programmable function keys with LEDs (54 with the expansion module)
Caller-ID
Message waiting indication LED
Address book (100 entries)
Speed dialing
Local dial plan
Number guessing
Lists of missed, received and dialed calls (100 entries each)
Call waiting indication
Clock, daylight saving, call-timer
Call blocking (deny list)
Blocking of anonymous calls
Handling of up to 12 calls simultaneously
Menu-driven user interface
Ring tone selection, import of individual ringtones
URL Dialing support
National language support for selected languages (NLS)
Do not disturb
Speakerphone (full duplex)
Auto answer mode
Keyboard lock

Call Features

Hold
Blind transfer, attended transfer
Music on hold support (only via PBX)
Divert
Conferencing (3-way conference bridge on phone)
Call park, call pickup (only via PBX)
Call completion
Client Matter Code (CMC)
Call waiting/switching between calls
Redialing
RTP multicast paging
Multiple audio device support

Web Server

Embedded web server HTTP/HTTPS
Easy configuration of the phone, remote configuration
Dial from web interface
Password protection
Diagnostics (tracing, logging, syslog

Security, Quality of Service

HTTPS (server/client)
Transport Layer Security (TLS)
SRTP (RFC3711), SIPS
RTCP, S-RTCP
VLAN (IEEE 802.1X)
LLDP-MED

Codecs, Audio

G.711 A-law, ÃŽÂ¼-law
G.722, G.729A, G.723.1, G.726
GSM 6.10 (full rate)
Comfort noise, voice activity detection

SIP

RFC3261 compliance
UDP, TCP and TLS
Digest/basic authentication
PRACK (RFC3262)
Error-information support
Reliability of provisional responses (RFC3262)
Early media support
DNS SRV (RFC3263),redundant server support
Offer/answer (RFC3264)
Message Waiting Indication (RFC3842),subscription for MWI events (RFC3265)
Dialog-state monitoring (RFC 4235)
In-band DTMF/out-of-band DTMF/SIP INFO DTMF
STUN client, ICE (NAT traversal)
ENUM (RFC3261), NAPTR (RFC2915),rport (RFC3581), REFER (RFC3515)
Bridged line appearance (BLA)
Auto provisioning with PnP
Busy lamp field support (BLF)

Installation

Automatic software update
Automatic settings retrieval via HTTP/HTTPS/TFTP with authentication
Installation via web interface
Static IP provisioning, DHCP
NTP

Snom 320 Solution Overview

The snom 320 features a 100-number call memory, 100-number onboard address book (to which data may easily be uploaded), custom call blocking, configurable/downloadable ring-tones, auto-answer mode, DND and other sophisticated features insure convenience and productivity. And the 320\’s built-in web server supports even simpler end-user configuration, screen dialing, and access to call history.

The snom 320 is remote-manageable and firmware-upgradeable, uniquely easy to install, and largely self-configuring. Broad codec support and full compatibility with current SIP recommendations insures interoperability; support for STUN (for NAT traversal), ENUM (for dialed-number resolution) and other state-of-the-art features enables flexible deployment, behind local proxies, IP PBXs or hosted VoIP services.

By limiting need for external conference bridges/media server capacity or use of conference services for routine multiparty calls, the snom 320’s built-in three-party conference bridge helps limit total cost of ownership, while also insuring high audio quality and low latency.
