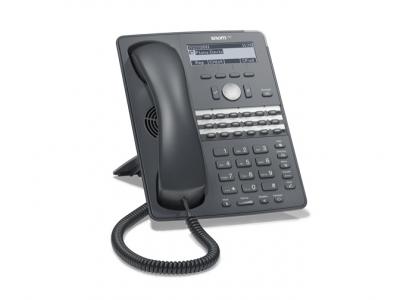

snom 760

Snom 760 4-Line SIP based IP phone

The snom 760 phone addresses office users that require excellent audio, PBX-style keys, and rich visual information. It combines a state-of-the-art
hardware with the proven snom SIP software.
The snom 760 not only provides you with comprehensive IP telephone functionality but also a whole range of extra features which really put it in a class of its own compared to similar products.

The new audio subsystem was designed for excellent performance in office environments. It supports a large range of codecs, wideband audio, handset and hands-free operation according to TIA-920 standard. The specially designed grips which hold and release the receiver compliment overall user-friendliness by eliminating the noise normally associated with lifting and replacing the receiver.
The new foot stand allows two positions for the device (33 ° and 55 ° angle). It can be setup and changed easily without tools. The snom 760 comes in a dark grey color that fi ts the typical office dress code and makes usage traces less obvious than lighter colors.

Highlights

• High-resolution 3.5”color display
• 12 LED function keys
• LED function keys
• Wideband audio
• Hands-free operation
• Power over Ethernet (PoE)
• WLAN ready
• VLAN
• 2 x USB (Type A)
• 2 Gigabit LAN ports

General Features

• Weight: approx. 920g (690g without foot-stand)
• Dimensions: approx. (mm) 238x190x40 (LxWxD) w/o footstand, 238x190x220 (LxWxD) with footstand
• Certifications: FCC Class B, CE Mark
• Safety: IEC 60950-1:2007
• Power over Ethernet/PoE: IEEE 802.3af, Klasse 2
• Power: Input voltage 5V DC, max. 10 W (adapter not included) (1)
• Average power consumption with PoE: Approx. 2.2-3.4 W (without USB peripherals)
• Ethernet: 2 x IEEE 802.3/1 Gigabit switch
• 1 x LAN, 1 x PC: RJ 45
• USB ports: 2 x type A, USB 2.0 Hi/Full/Low Speed-compatible host interface
• Handset: 4P4C connector
• Headset: 4P4C connector or wireless via USB adapter(2) or snom EHS Advanced(3)
• Color: Anthracite gray

User Interface

• High-resolution color display
• 8.9 cm, 320 x 240 pixels 18 bits color depth
• 16 freely programmable function keys with LEDs, 4 variable function keys
• Comfortable and intuitive menu structure
• Call indication with LED
• Caller identification
• LED indication for missed and received calls and messages
• Directory with 1000 contact entries
• Import/Export of Directory
• Speed dialing
• Local dial plan
• Indication of calls on hold
• Clock with automatic daylight-saving time
• Call duration
• Call blocking (deny list)
• Management of up to 12 calls simultaneously
• Auto answer
• URL dialing
• Selection of ring tones, VIP ring tones, ntegration of customized ring tones
• Localization
• DND mode (do not disturb)
• Hands-free talking
• Keyboard lock

Call Features

• Hold
• Music on hold (4)
• Blind and attended transfer
• Call forwarding
• 5-way conference on the phone
• Call park, call unpark (4
• Extension monitoring, call pickup (4)
• Call completion (Busy/Unreachable) (4)
• Client Matter Code (CMC)(4)
• Automatic redial on busy
• Multicast paging
• Multiple audio device support
• Unified Communications ready

Web Server

• Built in HTTP, HTTPS server
• Remote configuration/provisioning
• Dialing via Web browser
• Password protection
• Diagnostics (traces, logging, syslog)

Security, Quality of Service

• HTTPS (server/client)
• Transport Layer Security (TLS)
• SRTP (RFC3711), SIPS
• RTCP, S-RTCP
• VLAN (IEEE 802.1X)
• LLDP-MED

Codecs, Audio

• Wideband Audio
• G.711 A-law, μ-law
• G.722, G.726, G.729AB, GSM 6.10 (full rate)
• Comfort Noise Generator (CNG)
• Voice Activity Detection (VAD)

SIP

• RFC3261 compliant
• UDP, TCP and TLS
• Digest authentication
• PRACK (RFC3262)
• Loose and strict Routing
• Error code indication
• Reliability of provisional responses (RFC3262)
• Early media support
• DNS SRV (RFC3263), redundant server support
• Offer/Answer (RFC3264)
• Message Waiting Indication (RFC3842), Subscription for MWI events (RFC3265)
• Dialog-state monitoring (RFC 4235)
• DTMF
• STUN client (NAT traversal)
• Event list subscription support (RFC 4662)
• Bridged line appearance (BLA)
• Auto provisioning with PnP
• Presence/Buddy-list feature
• Busy lamp field support (BLF)
• Presence publishing

Installation

• Automatic software updates
• Automatic loading of settings via HTTP/ HTTPS/TFTP
• Completely configurable through Web interface
• Remote management via TR-069/TR-111
• Easy WLAN binding via USB adapter (5)
• Static IP, DHC
• NTP
