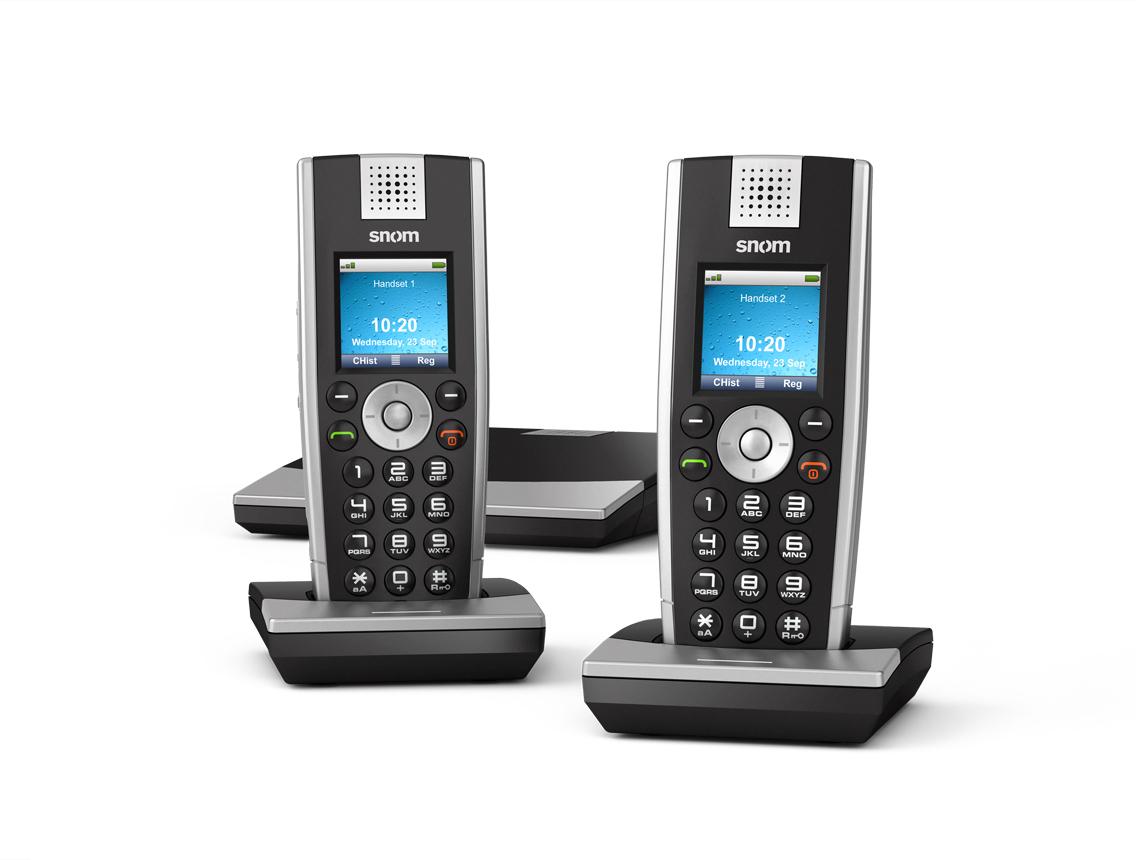

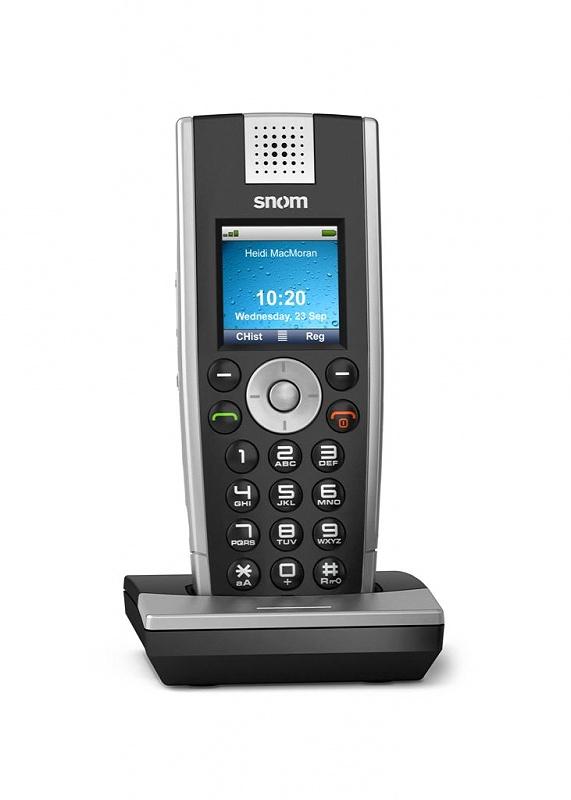

Snom m9

The snom m9 is the next generation snom DECT handheld that empowers users with the convenience of wireless communication along with the widely accepted benefi ts and feature richness of Voice over IP telephony.

The snom m9 delivers excellent speech quality through digital cordless audio. By combining functions of business communication with the ease of use of consumer products, the snom m9 is ideally suited for professional and private use alike. With features such as hands free mode, calling line identifi cation (CLI) by displaying name, number and image of the caller as well as typical mobile phone features such as address book, calendar, calculator and alarm function, the snom m9 provides the perfect blend of mobility and accessibility.

The DECT based snom m9 provides interference free communication by making use of the dedicated DECT frequency band. In addition, the delivers the typical benefits of the DECT world such as high standby time and superior speech
quality in addition to internet application integration,thus providing a decisive edge over WLAN-based handhelds.

The access point covers roughly 50m (150 ft) indoors and approx. 300m (1000 ft) outdoors (depending on the actual topology of a building and/or outdoor premise).

The intuitive design of the snom m9 makes it a highly consumer friendly and convenient handheld device. With its illuminated keypad and TFT color display, the cordless phone is ideally suited for enterprise and SoHo environments
alike. The address book may include JPEG images which are displayed on incoming calls.

The menu driven graphical user interface allows intuitive usage and five navigation keys provide easy access to most of the phone functions saving users from the hassle of searching through complicated menus.

Furthermore, the USB interface and the large flash memory provide an excellent potential for future enhancements. The attractive design underlined by its modern look is what defi nes this state of-the-art VoIP wireless
telephone.

To enable seamless integration in most VoIP environments, the snom m9 delivers pre-confi gured PBX profiles allowing it to be employed in parallel with the most popular SIP platforms with the click of a button. The snom m9 is the first device from snom that comes with full IPv6 support from day one. Such features combined with automatic configuration download make the snom m9 a truly unique cordless device. Last but not least, the snom m9 incorporates the renowned SIP stack from snom with its decade
long proven interoperability and technology leadership.

Highlights

• Interference-free telephony
• 100+ hours standby time
• Proven interoperability
• Security (TLS, SRTP, pre-installed X.509 certificate)
• Color Picture Caller-ID
• IPv6 support
• Up to 9 handsets per base station
• Up to 4 simultaneous calls per base station
• Intercom, alarm and calendar function
• And much more
• Voice encryption

Display

• Color TFT Display (65,536 colors)
• Resolution 128×128 P ixel
• 5-step contrast adjustment
• Status indication of signal strength,alarm, “DND”, call diversion,battery status, MWI, loudspeaker
• Date & time (manual or auto synchronized)
• Caller I D with name and image
• National L anguage S upport

Measurements

• Size: 125 x 50 x 20 mm
• Base station: 168 x 144 x 32 mm
• Charging cradle: 80 x 72 x 21 mm

Weight

• Handset (approx.): 98g
• Base station: 275g
• Charging cradle: 80g

Battery

• Li-Ion 3.7V

Power

• Charging cradle: 5.9V DC
• Base station: 5V DC

Keypad

• Illuminated
• 12 numeric keys
• 2 softkeys
• 5 navigation keys
• Key-barring
• Loudspeaker
• Volume adjustment
• 24-digit input
• Multiple input modes

User interface

• Emergency calls
• Call lists (missed, dialed, received)
• Address book (170 entries)
• Digital clock with automatic time synchronization
• Talktime indication
• Convenient and intuitive menu structure
• Polyphonic ringtones
• Handsfree mode
• Customizable wallpaper
• Screensaver
• Auto answer

Further functions

• USB interface
• Music-on-hold (only when connected to PBX)
• Call hold
• Call transfer
• Call redirection
• Caller lists
• Call Waiting I ndication (CWI)
• Message Waiting I ndication (MWI)
• Do Not Disturb (DND)
• RSS Feed Reader
• Missed calls indication
• 4 simultaneous VoIP calls
• Registration of up to 9 handsets
• Intercom (handset-to-handset calling without PBX)
• Calling line identification from address book
• Mailbox (PBX)
• VCARD 3.0 support
• Speed dial
• LDAP
• CLIP /CLI R
• Dial plans
• SIP U RI Dialing

Audio

• Wideband audio (Q3 2011)
• Voice E ncryption (SRTP)
• Mute function
• Volume adjustment – 6 steps
• Separate settings for a) handsfree and b) headset
• Ringer volume – 6 steps + O FF
• 2.5mm H eadset Jack
• Key-press tone – Click, DTMF and special sounds
• Acoustic warning for low battery status and charging

Codecs

• G.711, G .722, G .726, G .729

Voip

• Pre-configured P BX profiles
• IP v6 ready
• snom O CS E dition ready (Q3 2011)
• RFC3261-compliant
• Digest and NTLM authentification
• DNS S RV (RFC3263),
• Offer/answer (RFC3264)
• Indication of incoming messages (MWI in accordance with RFC3265)
• DTMF (Inband, O utband, SIP I NFO)
• SIP configuration via base station or handset
• SIPS /TLS
• STUN support for NAT Traversal

Installation

• Automatic software updates
• Automatic upload of settings via H TTP
• Control LE Ds on base station for network activity, power and VoIP registration
• Reset key
• VLA N
• Standards: DECT, GAP
• Supports: DECT encryption
• Device diagnostics mode
• LL DP
• DECT Band: 1.88-1.9 GH z (EU )

Configuration

• Embedded web server
• Autoconfiguration via H TTP/HTTPS
• Embedded X.509 certificate
• TR-69/TR-111 for remote device management (Q3 2011)
• Over-the-air and US B firmware upgrade
