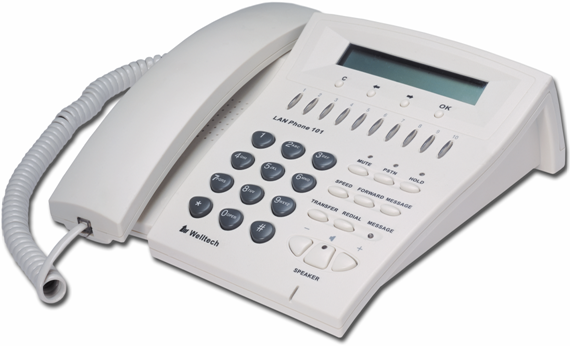

I think the primary OEM produce for this item is Welltech
Approx $115USD with a min order of 50 units.
These Phones run on a Motorola PPC 860 multimedia processor and run on VxWorks Unix
They have a Kendin KS8995M integrated network managed switch
The DSP is an AC4830
The PSTN interface is an AMS AS2525B
Boot Dump
—
–
Attached TCP/IP interface to CPM unit 0
Attaching interface lo0…done
VxWorks
Copyright 1984-1998 Wind River Systems, Inc.
CPU: Motorola ADS – PowerPC 860
VxWorks: 5.4.2
BSP version: 1.2/4
Creation date: Aug 27 2004
WDB: Ready.
KS8995M SPI slave device initialize …
Check chip family ID…found KS8995M
KS8995M initialize…OK
POWER_IP:0x00000008
Attached TCP/IP interface to cpm unit 0
Attaching interface lo0…done
no answer from 192.168.1.1
HTTPD initialized…
AC4804[0] is ok
successful 1 4 VP v1.44 stack open successfully.
WorkMode: PROXY_MODE
DNSgetHostByName:TRUE
Start registering to the Proxy server
login: lo = 800,hi = 0
Silence Signal = Lo
login: root
password:
Welcome to Terminal Configuration Mode
Please enter your configuration item
usr/config$ ls
help help/man/? [command]
quit quit/exit/close
debug show debug message
reboot reboot local machine
pbook Phonebook information and configuration
commit commit flash rom data
ping test that a remote host is reachable
time show current time
ifaddr internet address manipulation
pppoe PPPoE stack manipulation
flash clean configuration from flash rom
sysconf System information manipulation
sip SIP information manipulation
security Security information manipulation
voice Voice information manipulation
tos IP Packet ToS (Type of Service)values
ddns Dynamic DNS update manipulation
vlan VLAN configuration and information
bureau Bureau line information manipulation
rom ROM file update
passwd Password setting information and configuration
auth Set configuration items for "user".
usage: help [command]
usr/config$=======
