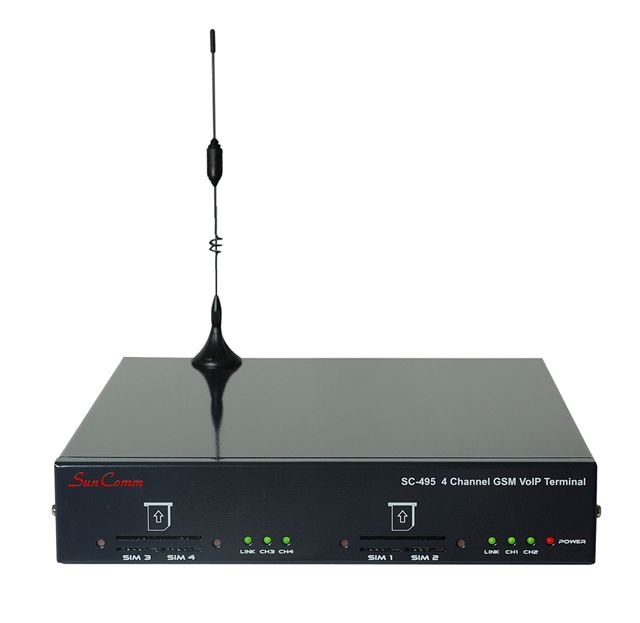

SunComm VoIP GSM Gateway SC-495 with 4SIM, 1 WAN

SC-495N GSM VoIP Terminal with 4SIM, 1WAN for 4 channels GSM-VoIP connection, Quad band, SMS, Support NAT, Auto Hunting

SC-495N GSM VoIP Terminal has 4 channels for call termination (VoIP to GSM) and origination (GSM to VoIP) simultaneously. It is SIP based, compatible with Asterisk, SIP Proxy Server, VoipBuster. Which enable to make 4 calls from IP phones to GSM networks and from GSM networks to IP Phone at the same time. SC-495N support Build in Dial peer Server, Stun Server & NAT Function
It is like a traditional PBX. 5060 is a delegate NUMBER
Which has 4 lines: 5062, 5064, 5066, 5068
The call automatically switches from a busy line to available line.
So user just send call to 5060 port from Asterisk/ IP PBX

• • • 5060 Port can be changed to any port as user’s need***

Major Function:
1. VoIP (SIP) – GSM conversion
2. 50 sets of LAN –> MOBILE routes setting; 50 sets of MOBILE –> LAN routes setting.
– Support one stage dialing:

• When LAN phone and SC-495N both register SIP proxy Server or Asterisk or VoipBuster, Users can dial any destination number from LAN phone directly.
  • • Please note, SIP proxy Server, Asterisk need to have the route of destination number. VoipBuster must have credit in deposit ***

– Support free mode – 2 stages dialing & assigned mode – 1 stage dialing
3. Voice response for setting and status (dial in from mobile).
4. For call termination (VoIP to GSM) and origination (GSM to VoIP).
5. Standard SIP (RFC2543,RFC3261) protocol, Communicates with other gateway or PC
6. Receive SMS and Send SMS (CDMA VoIP Terminal: SMS feature is not available)
7. Allows your program to Send/receive SMS with AT Command
8.. Support Call Back feature
9. All functions can be set on web.

Specification:

Protocols: SIP (RFC2543, RFC3261)

TCP/IP: IP/TCP/UDP/RTP/RTCP/, CMP/ARP/RARP/SNTP, DHCP/DNS Client, IEEE802.1P/Q, ToS/DiffServ, NAT Traversal, STUN, uPnP, IP Assignment, Static IP, DHCP, PPPoE

Codec: G.711 u-Law, G.711 a-Law, G.729A,G.729A/B
Voice Quality, VAD, CNG, AEC, LEC, Packet loss

Frequency: Quad Band: 900/1800/1900/850MHZ

SC-495N series models:
1. SC-495N GSM VoIP Terminal: for GSM – VoIP connection
2. SC-495G 3G VoIP Terminal: for 3G/UMTS – VoIP connection, tri band 850/1900/2100MHz (Voice only)
3. SC-495cdma VoIP Terminal: for CDMA – VoIP connection

Joan Hu
Suncomm Technology Co.,Ltd

Website : www.suncommtech.com.tw
E-mail: [email protected]
MSN:[email protected]
Skype: liaison3.suncomm.com.tw
Taiwan Tel:886-2-32341520 ext:2036
China Tel:86-769-82036350

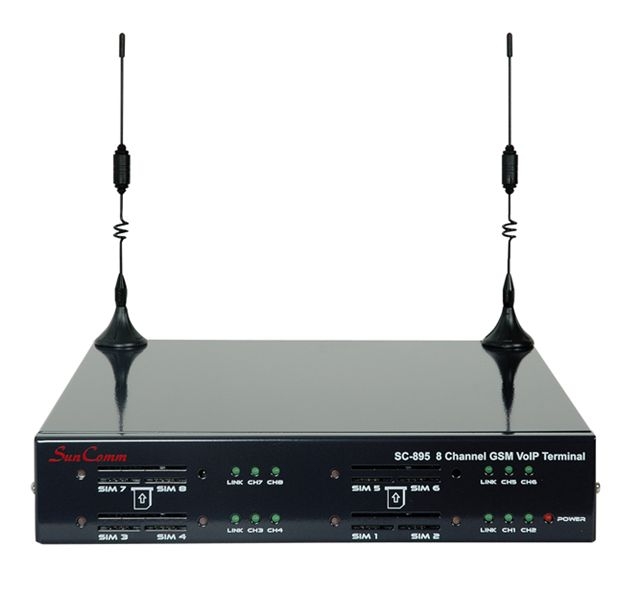

SunComm VoIP GSM Gateway SC-895 with 8SIM, 1WAN

SC-895N GSM VoIP Terminal with 8SIM, 1WAN for 8 channels use, SMS, Quad band (Support NAT, Auto Hunting)

SC-895N GSM VoIP Terminal has 8 channels for call termination (VoIP to GSM) and origination (GSM to VoIP) simultaneously. It is SIP based, compatible with Asterisk Soft Switch IP PBX, SIP Proxy Server, VoipBuster, 3CX etc. Which enable to make 8 calls from IP phones to GSM networks and from GSM networks to IP Phone at the same time. SC-895N support Built in Dial peer Server, Stun Server & NAT Function
It is like a traditional PBX. 5060 is a delegate NUMBER
Which has 8 lines: 5064, 5066, 5068, 5070, 5072, 5074, 5076, 5078
The call automatically switches from a busy line to available line.
So user just send call to 5060 port from Asterisk/ IP PBX

• • • 5060 Port can be changed to any port as user’s need***

Major Function:
1. VoIP (SIP) – GSM conversion
2. 50 sets of LAN –> MOBILE routes setting; 50 sets of MOBILE –> LAN routes setting.
– Support one stage dialing:

• When LAN phone and SC-895 both register SIP proxy Server or Asterisk or VoipBuster, Users can dial any destination number from LAN phone directly.
  • • Please note, SIP proxy Server, Asterisk need to have the route of destination number. VoipBuster must have credit in deposit ***

– Support free mode – 2 stages dialing & assigned mode – 1 stage dialing
3. Voice response for setting and status (dial in from mobile).
4. For call termination (VoIP to GSM) and origination (GSM to VoIP).
5. Standard SIP (RFC2543,RFC3261) protocol, Communicates with other gateway or PC
6. Receive SMS and Send SMS (CDMA VoIP Terminal: SMS feature is not available)
7. Allows your program to Send/receive SMS with AT Command
8.. Support Call Back feature
9. All functions can be set on web.

Specification:

Protocols: SIP (RFC2543, RFC3261)

TCP/IP: IP/TCP/UDP/RTP/RTCP/, CMP/ARP/RARP/SNTP, DHCP/DNS Client, IEEE802.1P/Q, ToS/DiffServ, NAT Traversal, STUN, uPnP, IP Assignment, Static IP, DHCP, PPPoE

Codec: G.711 u-Law, G.711 a-Law, G.729A,G.729A/B
Voice Quality, VAD, CNG, AEC, LEC, Packet loss

GSM Frequency: Quad band 900/1800/850/1900MHz

SC-895 series models:
1. SC-895N GSM VoIP Terminal: for GSM – VoIP connection
2. SC-895G 3G VoIP Terminal: for 3G/UMTS VoIP connection,
UMTS tri band 850/1900/2100MHz (Voice only)
3. SC-895cdma VoIP Terminal: for CDMA VoIP connection

Other Option:
1. Remote GSM Sim Switch SC-0032RS with 32 SIM (hardware): Installed with SC-495N with 4SIM, SC-895N with 8SIM at same installation site or remote site or foreign country for centralized SIM card management for ISP use.
2. SIM Switch Server (software): SC-4X32 for 128 channels use; SC-8X32 for 256 channels use; SC-16X32 for 512 channels use. (Must be installed with SC-495N or SC-895N (hardware) and SC-0032RS Remote Switch with 32SIM (hardware) together)
