• Support LCD
  • 7 programmable keys
  • 4 Softkeys
  • Independent Login / Logout Keys
  • Support PoE

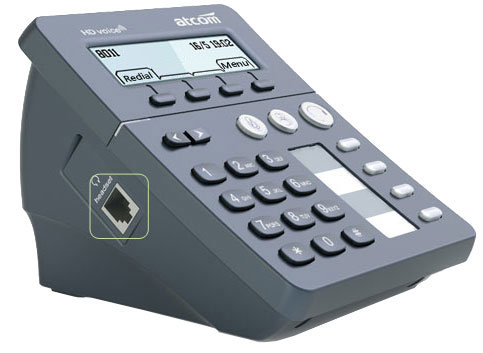

AT800DP is a specialized call center IP phone with HD voice quality and LCD. It supports SIP protocol, has indepent register/exit button and 7 programmable keys with veirous keys. It supports all the functions of the standard desktop IP phone and easy to use. Regarding the compatibility, it has been tested with many kinds of SIP based call center platform. It is the first kind of IP based call center phone in deomestic market and the best one for call center projecct.


    • Back light on LCD display
    • Support SIP
    • G.722 high definition voice codec and HD headset support
    • Dual RJ45 port with switch function
    • 7 programmable keys
    • Support RJ-9 professional call center earphone port and 3.5mm earphone
    • Customized right tone for different regions
    • Auto provision of configuration file and firmware
    • Independent Login/Logout key


  • VoIP
    • Support SIP protocol(RFC3261、RFC2543)
    • Support Call Forward、Call Transfer、Call Hold、Conference Call
    • Support DND、Call Park、Call Pickup
    • Support Auto Answer
    • Support Redial、Speed Dial
    • Support Black Lick、Limit List
    • Support In band audio、RFC2833 and SIP Info DTMF

  • Voice
    • Tone generation and Local DTMF re-generation according with ITU-T
    • Codec:G.711、G.722、G.726、G.729、G.723
    • HD voice support
    • AGC(Auto Gain Control)
    • AEC(Auto Echo Cancellation)
    • VAD(Voice Activity Detection)
    • CNG(Comfort Noise Generation)

  • Networking
    • LAN PC port working with bridge mode
    • Support VLAN
    • WAN support DHCP client
    • WAN support Primary and Alter DNS

  • Management
    • Support HTTP or HTTPS visit WEB
    • Support autoprovision update configuration file or firmware
    • Web and telnet management
    • Upgrade firmware through HTTP, FTP or TFTP
    • Support Auto Provisioning (configuration file and firmware)

  • Hardware
    • Independent Login/Logout Key
    • Support 7 programmable keys
    • Login/Logout indicator light*1
    • status indicator light*1
    • Mute indicator light*1
    • Softkeys *4

  • Interfaces
    • Support 2 RJ-45 Ethernet ports
    • Support RJ-9 professional call center earphone port
    • Support 3.5mm earphone port
    • Power port*1

  • Electric requirements
    • Power adapter: output DC 12V/450 mA

  • Compliance Certificates
    • CE: EN55024 EN55022
