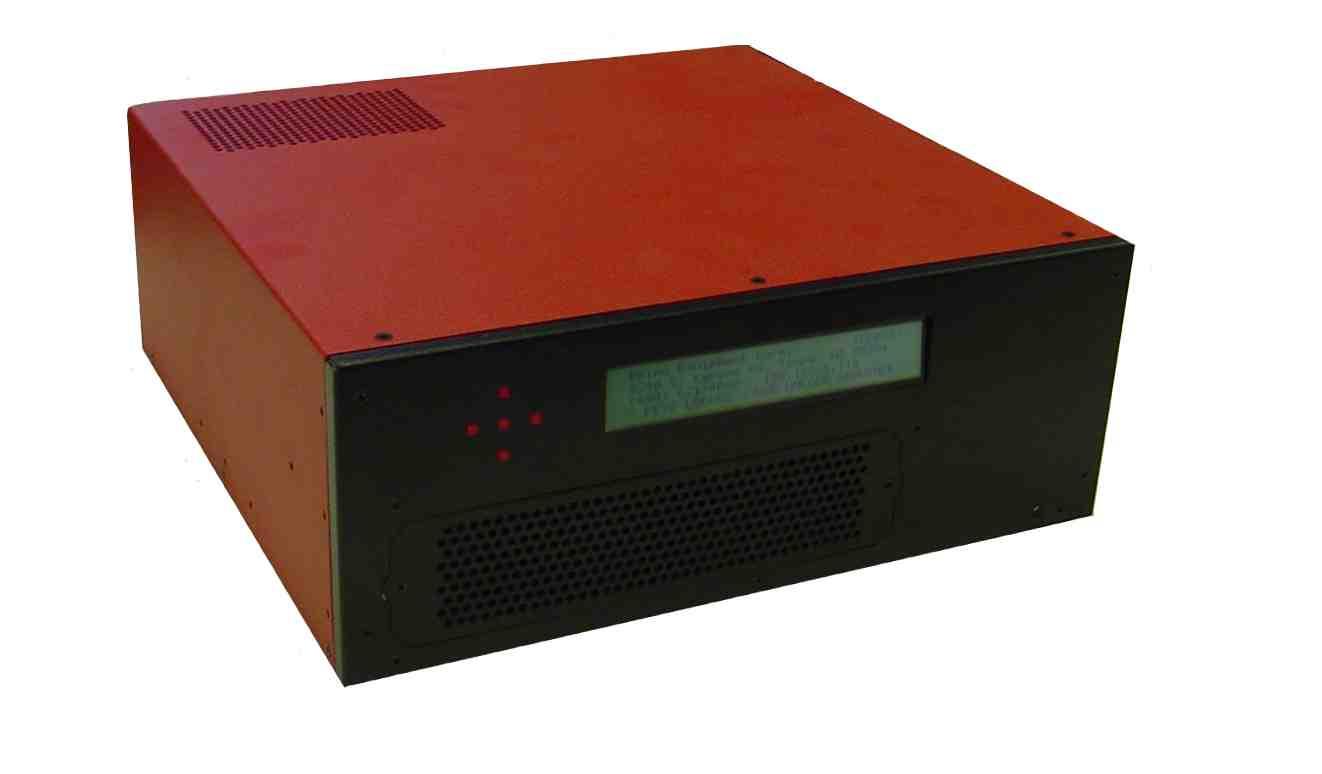

Rhino Ceros

Managing your open source telecommunication needs has never been easier than with Rhino products. Ceros provides instant credibility to your Value Added Reseller (VAR) product line, by providing an unmarked PC chassis that is simply customized by editing a simple four line by 40 character text file. The text in the file is displayed on the LCD at all times for your customers to visually identify your own branded PBX product.

Knowing that Rhino products are ready to perform right out of the box means that you can spend more time developing important customer relationships. Ceros comes preloaded with Linux and Asterisk, along with all the necessary configurations for the specific installed Rhino hardware. All that is needed is to customize extensions and other outside system environment configurations.

The Ceros chassis was designed with VARs in mind. The chassis comes with no external markings or silkscreening, and comes shipped in two cartons — an outside carton that can be discarded so that a pristine, inside carton can be cleanly shipped to your end customer.

Rhino designed products are tough. In the rare case of trouble, our technical support staff is ready to give you the support you need, when you need it. Our 5-year, limited warranty means that you can be confident that Rhino will always work hard in your Open Source Telephony (OST) application.

Ceros is a reseller item only — for reseller pricing and quantity discounts please contact us or a Rhino distributor in your area.

Standard Features

  • Looks like a PBX!
  • Asterisk soft PBX tested and ready
  • Various distributions preloaded and tested with installed Rhino PCI cards
  • Ready to go right out of the box, all you add is specific installation data like extensions and names
  • No need for a monitor or keyboard, the Rhino SLI interface provides all system management interfacing
  • 5-year limited warranty
  • Unlimited Hardware Support

Standard Ceros Features

  • Asterisk soft PBX tested
  • Preloaded with Linux and Asterisk
  • Accepts all Rhino PCI and PCI Express cards. Full length cards have special anchor brackets to fully secure cards in the chassis
  • Fully tested and integrated with all required hardware
  • 3U tall, 12.5" wide x 13.5 deep" external dimensions
  • Rubber bumper feet, or 19", 23" and wall mounting brackets
  • Dual high reliability chassis fans
  • Rhino SLI, serial LCD and 5-button keypad
  • No external monitor or keyboard required
  • Double shipping box, throw away the outer carton and ship a brand new carton to your customer
  • 5-year limited warranty

Base Configuration

  • Intel Core2 Duo Processor (Intel DG33 motherboard)
  • 80G SATA hard drive (upgradeable to 160 and 250GB, RAID1 also available)
  • 1GB 667MHz DDR2 memory (upgradeable to 4GB)
  • 400W power supply, 100-240VAC, 50-60Hz, Active PFC
  • NEW! Optional Dual Redundant 400W power supply, 100-240VAC, 50-60Hz, Active PFC, hot swappable
  • Three PCI slots, three PCI Express slots
  • NEW! Rhino SLI 6-line Graphical LED and 5-button keypad
  • Video, mouse and keyboard ports
  • Six USB ports, one firewire port, audio stack
  • 10/100/GbE integrated network
  • Note:Due to improvements, details subject to change at any time.

Chassis Mechanical Data

Size: 3U (5.25") tall 17” wide, 13.5 ” deep
Form Factor: Rack mount, wall mount, table top
Weight: 11.36 kilograms (25 pounds) for base configuration

Where to Buy

America - Buy Rhino Ceros from 8774e4voip.com - In-stock with Free Expert Support! Shop Online or Call 877.434.8647
America - Rhino Ceros at Telephony Depot: A premier retailer in the VoIP industry's online marketplace.
America - TheTelecomSpot.com - USA, Expert Advice, Low Prices and Free Shipping on Orders Over $99 - Call 866-369-3394
UK & Worldwide - VoIPon - Best Prices and Support on Rhino IP PBX - Call for reseller pricing or International Shipping. VoIPon.
Worldwide - Rhino Ceros at Telephony Depot: A premier retailer in the VoIP
industry's online marketplace.
See the Rhino Equipment Corp wiki page or visit: Our Website

Useful Links

Ceros Official Product Page

Rhino Equipment Corp
