Xorcom Ltd.

Manufacturer of high-quality Asterisk hardware since 2004:

Our Product Lines:

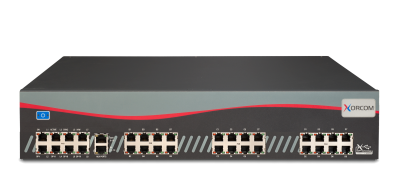

• Astribank – The first channel bank designed for Asterisk.

Features:

• • Up to 8/16/24/32 FXS/FXO ports per 19″ 1U wall- or rack-mountable unit
  • Up to 8 BRI ISDN ports
  • Up to 4 E1/T1 (PRI, R2, CAS) ports
  • Connects via USB 2.0, no need for additional PRI card, USB 2.0 hub may be used
  • Features input and output relays for connecting and operating external devices
  • Easy to install and implement

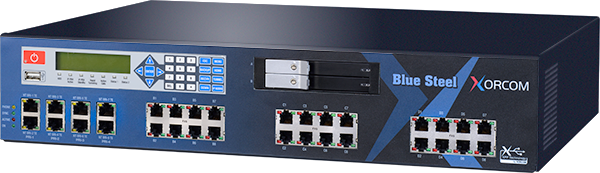

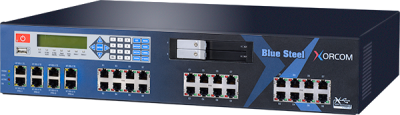

• CompletePBX with Built-in Redundancy – Blue Steel



Features:

• Various combinations of FXS, FXO, BRI and E1/T1 (PRI/R2/CAS) ports
• Supports SIP and IAX2 phones and trunks
• From 8 to 32 analog lines/extensions integrated into the unit
• Up to 4 ISDN E1/T1 (PRI, R2, CAS) ports
• Two hot-swappable disk drives
• Two built-in redundant power supplies
• Support for up to four Astribank USB channel bank units internally (24 Astribanks total)
• Up to 480 concurrent calls (550 if SIP-only)
• Dual hard drive (RAID1)
• Redundant fans for cooling
• Internal backup and restore
• Front panel USB access
• Two Ethernet ports to allow separation of IP voice and data traffic for improved voice quality and increased throughput
• Supports auxiliary appliances (door locks, alarm systems). Available for models that feature I/O ports.
• FreePBX™ – Easy-to-use Web interface for Asterisk and network setup
• Advanced support and maintenance features:
  • A multi-function LCD (Liquid Crystal Display) to perform the most common functions directly on the front panel of the IP-PBX without having to attach a keyboard and monitor.
  • Rapid Tunneling™ – Provides direct support for customers via a secure connection, behind firewalls and NATs
  • Internet updates
  • Configuration export / import

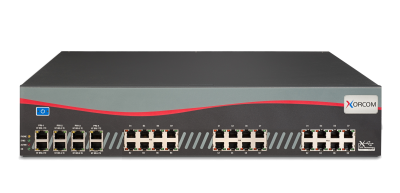

• XR1000 Asterisk Appliance for SOHO

Features:

• • Various combinations of FXS, FXO and BRI
  • Supports SIP and IAX2 phones and trunks
  • 8 or 16 analog lines/extensions
  • 2, 4, 6 or 8 BRI ISDN lines
  • 10 concurrent calls, regardless of codec used
  • Supports auxiliary appliances (door locks, alarm systems etc.)
  • Easy-to-use Web interface for Asterisk and network setup
  • Advanced provisioning and maintenance features:
    • Rapid Tunneling™ – Provides direct support for customers via a secure connection, behind firewalls and NATs
    • Compatible with Rapid Recovery™ backup and restore utility
  • Units with FXS ports support Rapid PA™ public address capability

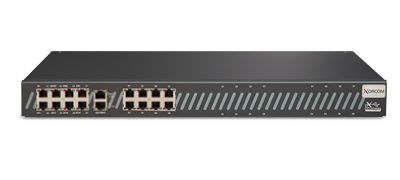

• XR2000 Asterisk Server for SME/SMB

Features:

• • Various combinations of FXS, FXO, BRI and E1/T1 (PRI/R2/CAS) ports
  • Supports SIP and IAX2 phones and trunks
  • From 8 to 32 analog lines/extensions integrated into the unit
  • Single ISDN E1/T1 (PRI, R2, CAS) port
  • Up to 4 external Astribank USB channel banks
  • Up to 45 concurrent calls (85 if SIP-only)
  • Supports auxiliary appliances (door locks, alarm systems). Available for models that feature I/O ports.
  • FreePBX™ – Easy-to-use Web interface for Asterisk and network setup
  • Advanced support and maintenance features:
    • Rapid Tunneling™ – Provides direct support for customers via a secure connection, behind firewalls and NATs
    • Internet updates
    • Configuration export / import

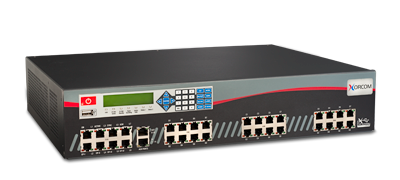

• • XR3000 Asterisk Server for Enterprise

Features:

• • Various combinations of FXS, FXO, BRI and E1/T1 (PRI/R2/CAS) ports
  • Supports SIP and IAX2 phones and trunks
  • From 8 to 32 analog lines/extensions integrated into the unit
  • Up to 4 ISDN E1/T1 (PRI, R2, CAS) ports
  • Up to 20 external Astribank USB channel banks
  • Up to 300 concurrent calls (325 if SIP-only)
  • Supports auxiliary appliances (door locks, alarm systems). Available for models that feature I/O ports.
  • FreePBX™ – Easy-to-use Web interface for Asterisk and network setup
  • Advanced support and maintenance features:
    • Rapid Tunneling™ – Provides direct support for customers via a secure connection, behind firewalls and NATs
    • Internet updates
    • Configuration export / import

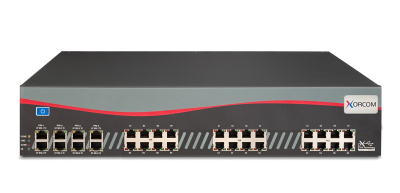

• XE2000 Enhanced Asterisk Server for SME/SMB

Features:

• • Various combinations of FXS, FXO, BRI and E1/T1 (PRI/R2/CAS) ports
  • Supports SIP and IAX2 phones and trunks
  • From 8 to 32 analog lines/extensions integrated into the unit
  • Single ISDN E1/T1 (PRI, R2, CAS) port
  • Up to 4 external Astribank USB channel banks
  • Up to 45 concurrent calls (85 if SIP-only)
  • Dual hard drive (RAID1)
  • Redundant fans for cooling
  • Internal backup and restore
  • Front panel USB access
  • Two Ethernet ports to allow separation of IP voice and data traffic for improved voice quality and increased throughput
  • Supports auxiliary appliances (door locks, alarm systems). Available for models that feature I/O ports.
  • FreePBX™ – Easy-to-use Web interface for Asterisk and network setup
  • Advanced support and maintenance features:
    • • A multi-function LCD (Liquid Crystal Display) to perform the most common functions directly on the front panel of the IP-PBX without having to attach a keyboard and monitor.



    • Rapid Tunneling™ – Provides direct support for customers via a secure connection, behind firewalls and NATs
    • Internet updates
    • Configuration export / import

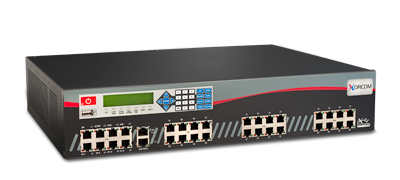

• XE3000 Enhanced Asterisk Server for Enterprise

Features:

• • Various combinations of FXS, FXO, BRI and E1/T1 (PRI/R2/CAS) ports
  • Supports SIP and IAX2 phones and trunks
  • From 8 to 32 analog lines/extensions integrated into the unit
  • Up to 4 ISDN E1/T1 (PRI, R2, CAS) ports
  • Up to 20 external Astribank USB channel banks
  • Up to 300 concurrent calls (325 if SIP-only)
  • Dual hard drive (RAID1)
  • Redundant fans for cooling
  • Internal backup and restore
  • Front panel USB access
  • Two Ethernet ports to allow separation of IP voice and data traffic for improved voice quality and increased throughput
  • Supports auxiliary appliances (door locks, alarm systems). Available for models that feature I/O ports.
  • FreePBX™ – Easy-to-use Web interface for Asterisk and network setup
  • Advanced support and maintenance features:
    • A multi-function LCD (Liquid Crystal Display) to perform the most common functions directly on the front panel of the IP-PBX without having to attach a keyboard and monitor.
    • Rapid Tunneling™ – Provides direct support for customers via a secure connection, behind firewalls and NATs
    • Internet updates
    • Configuration export / import

Optional Extras

• CompleteSBC™ – Intrusion prevention software (SBC) to protect the IP-PBX from hackers and other cybersecurity threats
• TwinStar™ – Automatic failover system for Asterisk server and telephony interfaces
• Rapid Recovery™ – Complete backup and restore utility for your PBX
• Hardware Echo Cancellation – Reduced load on server CPU and enhanced voice quality provided on hardware module; an alternative to software echo cancellation solution typically used in Asterisk systems
• Redundant Power Supply Unit – Microcomputer-based control system constantly monitors power requirements and supply to hundreds of telephony ports, alerting the system administrator and balancing the load in the event of a malfunction
• Analog Lines Failover – A simple fail-over solution for any Asterisk® based IP-PBX that uses Xorcom’s XPP™ technology
• Rapid Tunneling™ – Premium support tool for remote diagnostics and configuration repair
• RAID1 Support – Geometrically increase your IP-PBX hard-drive reliability
• Rapid PA™ – Public Address add-on for Astribanks with FXS ports
• Telecom Connector Option (TCO)
  – Unite all FXS ports into a single connector on the rear panel
• Input/Output (I/O) Ports – Enable activation/deactivation of peripheral devices and various call-handling scenarios
• External USB External 4-port USB hub for attaching multiple Astribanks to an Asterisk server

Bundled PBX + PMS for Hospitality

• Complete Concierge™ – Micros Fidelio certified Asterisk PBX interface to Property Management Systems (PMS) and Xorcom IP-PBX bundle
