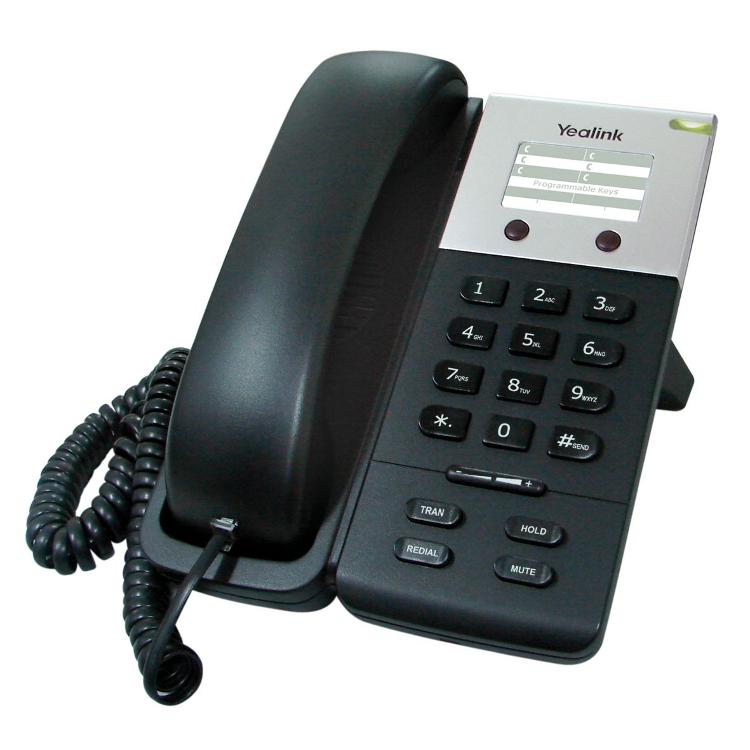

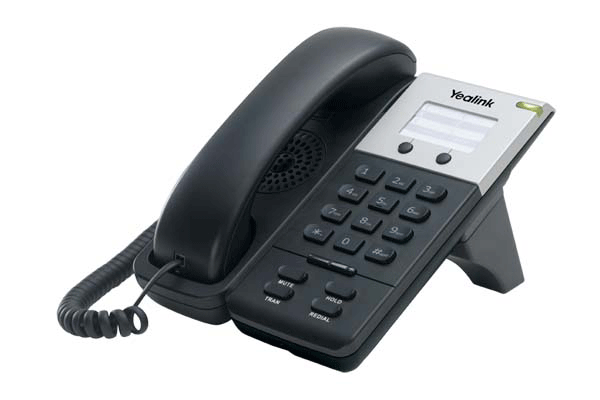

Yealink SIP-T18P

Yealink SIP-T18P Simple, Affordable and Easy-to-use IP Phone

The SIP-T18P is the simply IP phone that equipped with TI TITAN chipset,comprehensive telephony features, PoE, auto provision, and interoperable
with the leading IP-PBX and soft switch. It is economical and can be desktop or wall mounted.

Designed for working environment needing a basic feature IP phone, the SIP-T18P is a very cost-effective choice for small business, SOHO and Hotel,
college apartment, supermarket, and warehouse etc.

Highlights

• TI TITAN chipset and TI voice engine
• 2 programmable keys, Auto provision
• 1xLAN, 1xdual-color LED, Phone label
• Power over Ethernet, Wall-mountable

Phone Features

• 1 VoIP account, Hotline
• Call waiting, Call transfer, Call forward
• Call hold, Mute, Redial, DND
• 3-way conferencing, Speed dial
• Direct IP call without SIP proxy
• Volume control, Ringtone selection
• Tone scheme, System log export
• Integrated Voice Response System

IP PBX System Integration

• Music on hold
• Call park, Call pickup
• Dial plan, Dial now
• Voicemail
• Message Waiting Indication (MWI)
• Distinctive ringtone

Voice Features

• Wideband codec: G.722
• Narrowband codec: G.711u/A, G.726, G.729AB, G.723.1
• VAD, CNG, PLC, AJB, AGC

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• NAT Traversal: STUN mode
• DTMF: In-band, out-of band (RFC2833) and SIP INFO
• Proxy mode and peer-to-peer SIP link mode
• IP Assignment: Static/DHCP
• TFTP/DHCP client
• Telnet/HTTP server
• DNS client

Management

• Built-in HTTP web server
• Configuration: browser/phone/auto-provision/IVR
• Auto provision via TFTP/FTP/HTTP/PnP
• Auto provision for firmware, configuration, ringtone etc.

Security

• QoS: IEEE 802.1p/q tagging (VLAN), Layer 3ToS
• Digest authentication using MD5/MD5-sess
• Secure configuration file via AES encryption
• Admin/user configuration mode

Physical Features

• TI TITAN chipset
• 20 keys including 2 programmable keys
• 4 feature keys (Transfer/Hold/Mute/Redial)
• Phone label
• 1xdual-color LED
• 1xRJ45 10/100M Ethernet port
• Desktop with footstand (detachable), Wall-mountable
• Power adapter: AC 100~240V input and DC 5V/1.2A Output
• Power over Ethernet (IEEE 802.3af class 1) optional
• Operating humidity: 10~95%
• Storage temperature: up to 60 °C

Package Features

• Qty/CTN: 10 PCS
• N.W/CTN: xx KG
• G.W/CTN: xx KG
• Measurement: 0.054CMB
• Carton Meas: 520x470x220MM

Ships with:

• Yealink SIP-T18P IP Phone
• Handset and Handset Cord
• Power Adapter
• Ethernet Cable
• Quick Installation Guide & Quick Reference
• Stand
• CD
