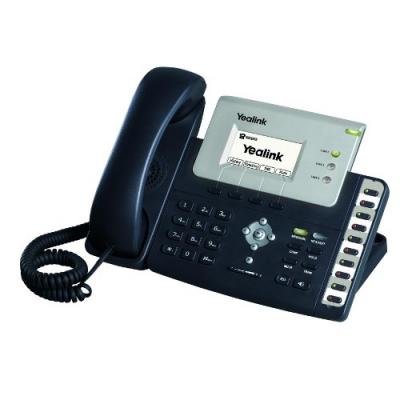

Yealink SIP-T26P

Yealink SIP-T26P Advanced IP Phone with 3 lines & HD voice

Yealink SIP-T26P is an advanced IP phone which designed for maximum productivity and efficiency
in the everyday business environment. It is equipped with the TI TITAN chipset, offers high definition
voice quality through TI voice engine, HD handset, HD speaker and HD codec (G.722).

Built-in 10 DSS keys for programmed as the IP-PBX features like BLF/BLA, intercom, call pickup, XML
browser, Hot desking, etc. Six navigation keys and four soft keys help you to use the phone easily.

Ten dedicated functional keys provide you with direct access to the functions for audio and call control.
Moreover, SIP-T26P has the rich external interfaces including 2xLAN, PoE, headset and expansion
module ports, supports 802.1x, Open VPN, etc security standards.

HIghlights

• TI TITAN chipset and TI voice engine
• 3 VoIP accounts, 132×64 graphic LCD
• HD Voice: HD Codec, HD speaker, HD handset
• BLF, XML Browser, Hot-desking, OpenVPN
• 2xLAN, PoE, Headset, Expansion module

Phone Features

• 3 VoIP accounts, Hotline, Emergency call
• Call hold, Call waiting, Call forward, Call return
• Call transfer (blind/semi-attended/attended)
• Caller ID display, Redial, Mute, DND
• Auto-answer, 3-way conferencing
• Speed dial, SMS, Voicemail
• Message Waiting Indication (MWI) LED
• Tone scheme, Volume control
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Phonebook (300 entries), Black list
• Call history: dialed/received/missed/forwarded
• Menu-driven user interface
• Localized language and input method
• Soft keys programmable
• Supports up to 6 expansion modules(EXP38 and EXP39)
• Supports Wireless Headset Adapter(EHS36)

Advanced Features

• XML phonebook search/import
• LDAP phonebook
• XML Browser, Hot-desking

IP PBX System Integration

• Busy lamp field (BLF), BLF list
• Bridged line appearance (BLA)
• DND&Forward synchronization
• Intercom, Paging, Music on hold
• Call park, Call pickup
• Call recording, Call completion
• Group listening, Group pickup
• Anonymous call, Anonymous call rejection
• Network conference
• Distinctive ringtone
• Dial Plan, Dial-now

Codecs and Voice Features

• Wideband codec: G.722
• Narrowband codec: G.711 µ/A, G.723.1
• G.726, G.729AB
• VAD, CNG, AEC, PLC, AJB, AGC
• Full-duplex speakerphone with AEC

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• DNS SRV (RFC3263)
• Redundant server support
• NAT Traversal: STUN mode
• DTMF: In-Band, RFC2833, SIP Info
• Proxy mode and peer-to-peer SIP link mode
• IP Assignment: Static/DHCP/PPPoE
• Bridge/router mode for PC port
• TFTP/DHCP/PPPoE client
• Telnet/HTTP/HTTPS server
• DNS client, NAT/DHCP server
• Logout

Management

• Auto-provision via FTP/TFTP/HTTP/HTTPS
• Auto-provision with PnP
• SNMP V1/2 optional, TR069 optional
• Configuration: browser/phone/auto-provision
• Factory configuration customized
• Trace package and system log export

Security

• Open VPN, 802.1x, VLAN QoS (802.1pq)
• Transport Layer Security (TLS)
• HTTPS (server/client), SRTP (RFC3711)
• Digest authentication using MD5/MD5-sess
• Secure configuration file via AES encryption
• Phone lock for personal privacy protection
• Admin/VAR/User 3-level configuration mode

Physical Features

• TI TITAN chipset
• 132×64 graphic LCD
• 45 keys including 13 programmable keys
• 1xRJ9 (4P4C) handset port
• 1xRJ9 (4P4C) headset port
• 2xRJ45 10/100M Ethernet ports
• 1XRJ12 (6P6C) EXT port
• Power adapter: AC 100~240V input and
• DC 5V/1.2A output
• Power over Ethernet (IEEE 802.3af)
• Power consumption: 1.6-2.6W
• Net weight: 1.05KG
• Dimension: 273x204x42MM
• Operating humidity: 10~95%
• Storage temperature: up to 60 °C

Package Features

• Qty/CTN: 5 PCS
• N.W/CTN: 8.065KG
• G.W/CTN: 8.915KG
• Measurement: 0.062CMB
• Carton Meas: 580x320x300MM

Ships with:

• Yealink SIP-T26P IP Phone
• Handset and Handset Cord
• Power Adapter
• Ethernet Cable
• Quick Installation Guide & Quick Reference
• Stand
• CD
