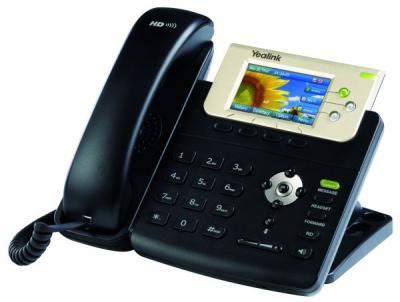

Yealink SIP-T32G

Yealink SIP-T32G Professional Gigabit phone with Color LCD Display

SIP-T32G IP Phone is Yealink latest innovation for managers with demanding collaborative communication needs.
For managers, it is a future-proofing network investment which supports seamless migration to GigE-based
network infrastructure. Dual-port Gigabit Ethernet is designed for flexible deployment options and lower cabling
expenses.

With its high-resolution TFT color display, SIP-T32G IP Phone offers a brilliant depiction of caller’s
information. Meanwhile, the user interface was designed for clarity and intuitive operation. Moreover, Equipped
with the TI Aries chipset, HD handset, HD speaker and HD codec (G.722), SIP-T32G IP Phone offers an unrivaled,
lifelike audio experience. Furthermore, The T32G Phone supports the security standards which prevent the
recording of data, For instance: TLS, SRTP, HTTPS, 802.1x, Open VPN and AES encryption.

Highlights

• Dual-port Gigabit Ethernet, Power over Ethernet
• 3” TFT-LCD, 262K colors, Intuitive user interface
• TI Aries chipset and TI voice engine
• HD Voice: HD Codec, HD speaker, HD handset
• 3 VoIP accounts, BLF/BLA, IPv6, Open VPN
• Headset, Wall mountable

Phone Features

• 3 VoIP accounts, Hotline, Emergency call
• Call hold, Call waiting, Call forward, Call return
• Call transfer (Blind/Semi-attended/Attended)
• Caller ID display, Redial, Mute, DND
• Auto-answer, 3-way conferencing
• Speed dial, SMS, Voicemail
• Message Waiting Indication (MWI) LED
• Tone scheme, Volume control
• Direct IP call without SIP proxy
• Ring tone selection/Import/Delete
• Phonebook (1000 entries), Black list
• Call history: Dialed/Received/Missed/Forwarded
• Menu-driven user interface
• Localized language and input method
• Soft keys programmable

Advanced Features

• XML phonebook search/import
• LDAP phonebook
• XML Idle Screen
• Action URL & Active URI
• Wallpaper, Screensaver
• Color Picture Caller-ID
• Theme, Screen Sleep

IP PBX System Integration

• Busy lamp field (BLF), BLF list, (BLA)
• DND & Forward synchronization
• Intercom, Paging, Music on hold
• Call park, Call pickup
• Call recording, Call completion
• Group listening, Group pickup
• Anonymous call, Anonymous call rejection
• Network conference
• Distinctive ringtone
• Dial Plan, Dial-now

Codecs and Voice Features

• Wideband codec: G.722
• Narrowband codec: G.711 µ/A, G.723.1 G.726, G.729AB
• VAD, CNG, AEC, PLC, AJB, AGC
• Full-duplex speakerphone with AEC

Network Features

• SIP v1 (RFC2543), v2 (RFC3261)
• IPv6
• DNS SRV (RFC3263)
• Redundant server support
• NAT Traversal: STUN mode
• DTMF: In-Band, RFC2833, SIP Info
• Proxy mode and peer-to-peer SIP link mode
• IP Assignment: Static/DHCP/PPPoE
• Bridge/router mode for PC port
• TFTP/DHCP/PPPoE client
• Telnet/HTTP/HTTPS server
• DNS client, NAT/DHCP server
• Logout

Management

• Auto-provision via FTP/TFTP/HTTP/HTTPS
• Auto-provision with PnP
• SNMP V1/2 optional, TR069 optional
• Configuration: browser/phone/auto-provision
• Factory configuration customized
• Trace package and system log export

Security

• Open VPN, 802.1x, VLAN QoS (802.1pq), LLDP
• Transport Layer Security (TLS)
• HTTPS (server/client), SRTP (RFC3711)
• Digest authentication using MD5/MD5-sess
• Secure configuration file via AES encryption
• Phone lock for personal privacy protection
• Admin/VAR/User 3-level configuration mode

Physical Features

• 2xRJ45 10/100/1000Mbps Ethernet ports
• TI Aries chipset
• 3” TFT-LCD, 400 x 240 pixel, 262K colors
• 32 keys including 3 programmable keys
• 5 LEDs: 1 x power, 3 x line, 1 x message
• Wall-mountable
• 1xRJ9 (4P4C) handset port
• 1xRJ9 (4P4C) headset port
• Power adapter: AC 100~240V input and DC 5V/2A output
• Power over Ethernet (IEEE 802.3af)
• Power consumption: 4.0W
• Net weight: 0.77kg
• Dimension: 185 x 200 x 90mm
• Operating humidity: 10~95%
• Storage temperature: up to 60 °C

Package Features

• Qty/CTN: 10 PCS
• N.W/CTN: 12.020KG
• G.W/CTN: 14.100KG
• Measurement: 0.083CMB
• Carton Meas: 560*460*250MM

Ships with:

• Yealink SIP-T32G Gigabit Color IP Phone
• Handset and Handset Cord
• Power Adapter
• Ethernet Cable
• Quick Installation Guide & Quick Reference
• Stand
• CD
