Zycoo IP PBX for carrier class

New Products Released:

1. IP PBX: Standard 1U Rack-Mountable X86 Platform Based
ZX100-A16 IPPBX platform with max 16 analog ports is based on x86 architecture and designed for Medium Businesses application
and it is preloaded with the latest stable version of the Elastix Appliance Software.That is not only the full feature IPPBX,
but also a IPPBX hardware platform for developer to install their own software easily.

Applications:

Call Center
Hosted Service
FAX System
IVR System

Pannel:

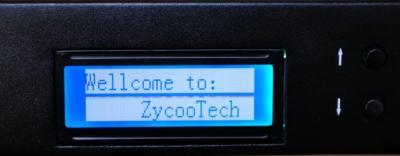

32*128 dot-martix LCD
16 analog ports indicators
1 HDD working status indicator
1 Power working status indicator

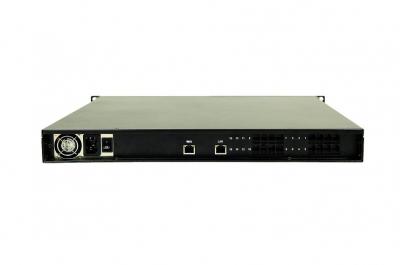

Interface:

1 X Power Jack, input 110~240V
2 X RJ45,WAN(100M), LAN(1000M)
16 X RJ11 can be combined with FXS and FXO

Hardware:

CPU: ATOM N270, 1.6GMHz
RAM: 2 GB DDR2 RAM
Storage: 160G mobile hard disk drive
PSU: 300W Power Supply with industry standard
Dimensions: W: 465mm, H:44.5mm, D:370mm
Rackmountable: Comes with accesories

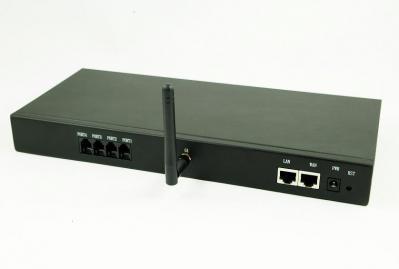

2. GSM IP PBX

1. Targeting for SOHO user and SMB market.
2. Attractive black iron case with frosted surface.
3. Embedded VOIP PBX server based on Asterisk.
4. Support PPPOE/VPN/DDNS/NAT/SSH.

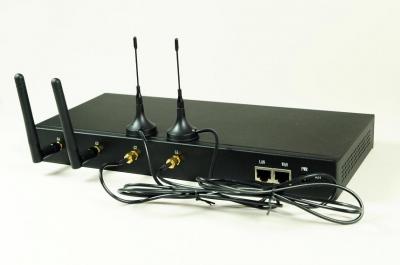

5. 4 GSM Antennas,GSM/EDGE 850/900/1800/1900MHz
6. Unlimited extension register.
7. Support 30 simultaneous calls.
8. Easy GUI for configuration.
9. Long time test assure stable performance.
10. Easy for lan/wan network organization.
11. Rich function in one small box.
12. High performance of network security.

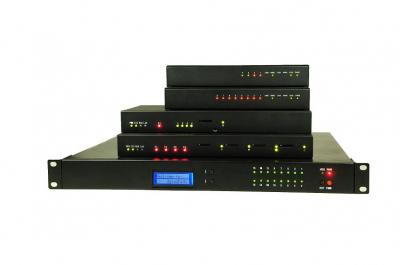

Zycoo IP PBX Line:

ZPX Series: ZPX04/08
ZX100 Series: ZX100-A16
ZX50 Series: ZX50-G4/ ZX50-AG41/ ZX50-AG42

Zycoo History:

Zycoo is a high technology company located in High-Tech Incubation Park,Chengdu,China.Target S&M business and home market,
We are engaged in R&D, manufacturing VoIP device and providing VoIP total solution.We have an outstanding R&D team with
extensive experience on R&D of embedded device.
Till now, our product line includes IPPBX, IP phone and series of Asterisk PCI cards. In addition to our brand product,
we had designed many types embedded hardware and software for our ODM customers.
We have been selling our products to more than 70 countries and more than 10 customized embedded products to USA and Europe customers.
