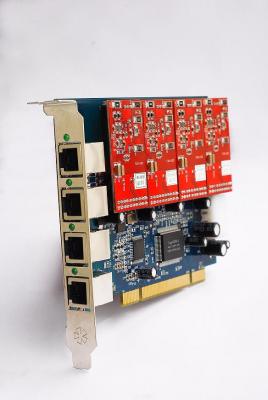

ZA4P can support 4 analog lines which can be any of combinations of FXS100 or FXO100 modules according to the requirements.It can meet the rate 100% to be compatible with Digium’s TDM400P.The user can use the driver, which is totally same as ZAPTEL and Asterisk software without revise any software codes.
Main features:
Support Industry Standard: PCI 2.2
The ZA4P can work with 3.3V and 5V PCI slot.
Support GPL Software driver used with zaptel.
Specification:
| Name | ZA4P |
|---|---|
| Main board | 1 |
| Ports | 4 |
| Modules Support | FXS-100/FXO-100 |
| Size(mm) | 135*105*18 |
| Package Size(mm) | 190*160*45 |
| Weight(g) | 200 |
Model Numbers
| Model | ZA4P04 | ZA4P13 |
|---|---|---|
| FXS-100 | 0 | 1 |
| FXO-100 | 4 | 3 |
| Model | ZA4P22 | ZA4P31 |
| FXS-100 | 2 | 3 |
| FXO-100 | 2 | 1 |
| Model | ZA4P40 | |
| FXS-100 | 4 | |
| FXO-100 | 0 |
PCI 2.2
RoHS/CE/FCC Compliant
Five Year Warranty
