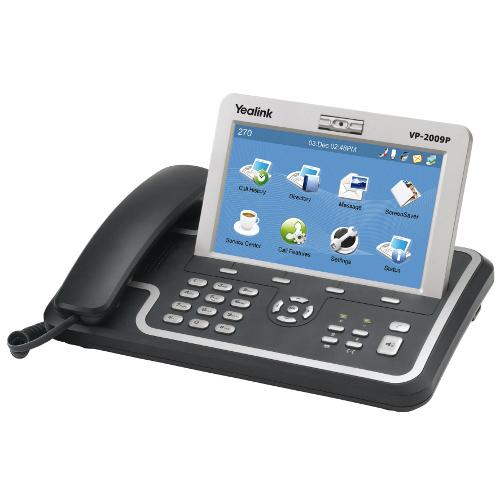

Yealink VP 2009P

Yealink VP 2009 with 7″ Digital LCD, Touch Screen and HD Voice

Video Features

• 7″ digital TFT-LCD with 800×480 pixels resolution
• Rotatable CMOS sensor camera with 2M pixels
• Video codec: H.264 and H.263
• Image codec: JPEG, GIF, PNG, BMP
• Video format: up to D1 (720×480)@30fps
• Video call output resolution: VGA and CIF
• Bandwidth selection: 128kbps~1Mbps
• Adaptive bandwidth adjustment
• I-frame adjustable, Local video control
• Picture-in-Picture (PIP), Full screen
• TV output with PAL/NTSC format
• Offline advertisement when idle
• Work with IP camera and door phone

Voice Features

• HD voice: HD codec, HD handset, HD speaker
• Wideband codec: G.722
• Narrowband codec: G.711, G.723.1, G.729AB, G.726
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, PLC, AJB, AGC

Management

• Configuration: browser/phone/auto-provision
• Auto-provision via FTP/TFTP/HTTP/HTTPS
• Auto-provision with PnP
• TR069 optional
• Reset to factory, Reboot
• Trace package export
• System log export

Phone Features

• 4 VoIP accounts
• 20 one-touch soft keys for speed dial
• Dial/answer selection (video or voice call)
• Call forward, Call waiting, Call transfer, Call hold
• Call manager, Mute, Redial, Auto answer
• DND, Caller ID display, Call history
• Voice mail, Message waiting indicator (MWI)
• Phonebook, Group manager, Black list
• XML central phonebook
• Volume control, Ring tone selection/import
• Wall paper, Screen saver and sleep
• Video/photo/wallpaper manager
• Get date & time manually or automatically
• National language selection
• Multi-desktop, Icon-driven menu
• Statistics when talking

Network & Security Features

• SIP v1 (RFC2543), v2 (RFC3261)
• NAT Traversal: STUN mode
• In-band, Out-of band (RFC2833)and SIP INFO DTMF
• Proxy mode and peer-to-peer SIP link mode
• IP Assignment: Static/DHCP/PPPoE
• HTTP/HTTPS web server
• SNTP
• VLAN QoS (802.1p/q)
• Secure configuration file via AES encryption
• Digest authentication using MD5/MD5-sess
• Admin/user configuration mode

Physical Features

• TI DaVinci dual-core chipset, Touch screen
• 7″ digital TFT-LCD with 800×480 pixels resolution
• Rotatable CMOS sensor camera with 2M pixels
• 128MB flash and 256MB DDR2 memory
• 27 keys including 4 soft keys
• 6 feature keys: Mute/Camera/Phonebook
• Transfer/Redial/Hands-free
• 2xLEDs for power and status indication
• 2xRJ45 Ethernet 10/100M ports
• 1xUSB2.0 port, 1xSD card slot
• 2.5mm headset port
• PSTN port optional
• A/V out: RCA style stereo audio and composite video output
• Power adapter: AC 100~240V input and DC 5V/3A output
• Power over Ethernet (PoE) optional:
• IEEE 802.3af, Class 0
• Power consumption: 4~10W

Package Features

• Qty/CTN: 4pcs
• N.W/CTN: 7.20kg
• G.W/CTN: 8.54kg
• Gift box Size: 300x230x195MM
• Carton Meas: 615x475x208MM

Ships with:

• Yealink VP 2009P Touch Screen IP Video Phone
• Handset and Handset Cord
• Power Adapter
• Ethernet Cable
• Quick Installation Guide & Quick Reference
• Stand
• CD
